OPERATOR’S STATION
Form 169017 17 Issue – June 2008
5 OPERATOR’S STATION
The operator’s station is designed for operating
the windrower tractor in a cab forward mode
(working mode), or in an engine forward mode
(transport mode). The operator station, which
includes the seat, console, and steering column,
pivots 180° so that the operator maintains
access to the windrower controls and gauges
regardless of the direction of travel.

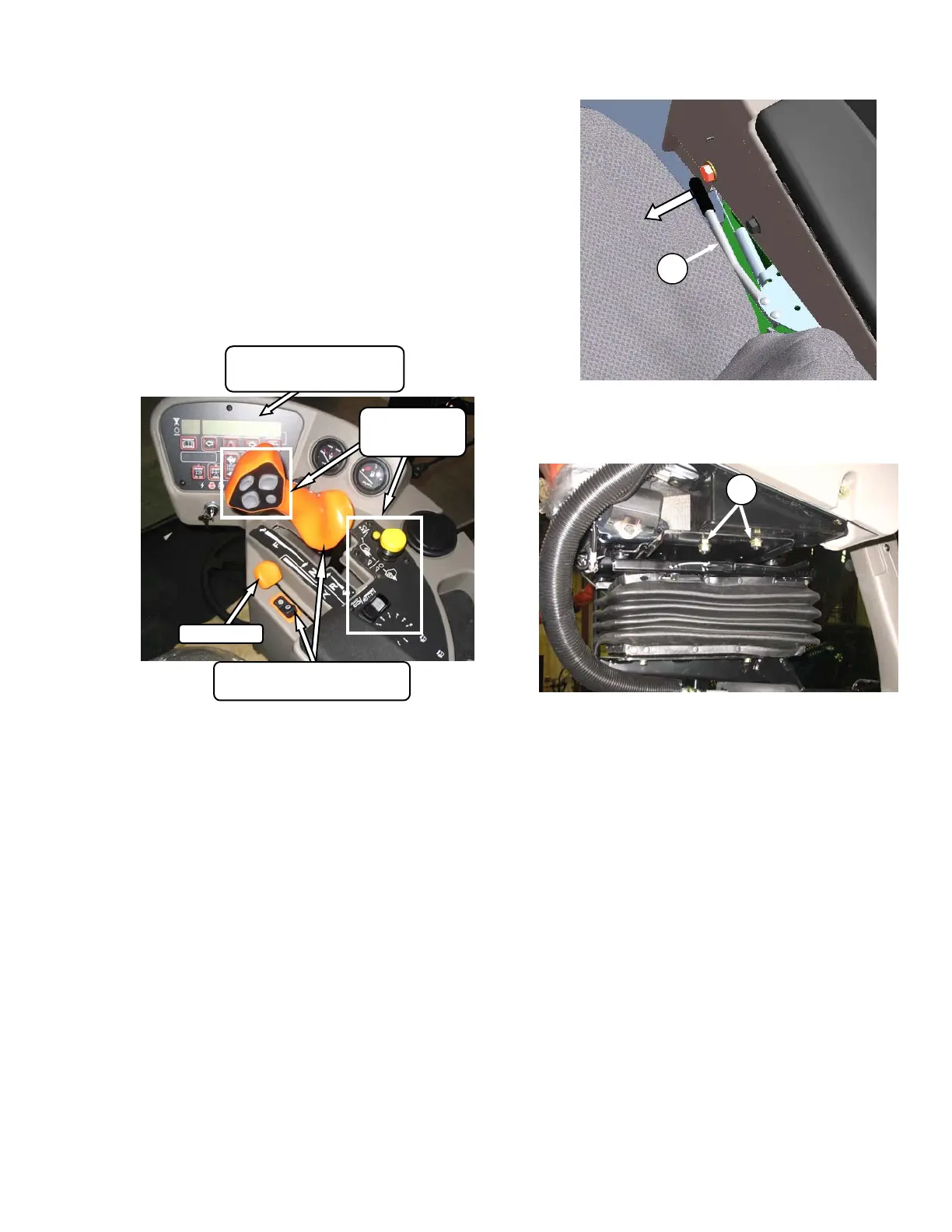

5.1 OPERATOR CONSOLE
The console contains controls to operate the
windrower as well as amenities for the operator.
The console position is adjustable to suit each
particular operator. The console is attached to
the seat and does not require adjustment when
repositioning the operator’s seat.
a. To adjust height and fore-aft, pull lever (A) and
slide console to desired position. Release lever
to lock console.
b. To adjust only fore-aft, loosen nuts (B) under
console and move as required.
c. Tighten nuts.
A
HEADER
CONTROLS
SECTION 5.16
GROUND SPEED CONTROLS
SECTION 5.15
THROTTLE
ENGINE/WINDROWER CAB
DISPLAY MODULE (CDM)
B
