OPERATOR’S STATION
Form # 169017 20 Issue – June 2008
5.7 LIGHTS
The field and transport light switches are located
on a panel in the cab headliner. Refer to
illustrations on following pages for location of
lights.
The lighting is dependent upon the position of
the operator’s station, i.e. cab forward mode or
engine forward mode. The position of the
operator’s station automatically determines the
lighting.
IMPORTANT
Red reflector tape is applied to aft
locations to be visible in engine forward
mode. Only amber tape is allowed in cab
forward mode.

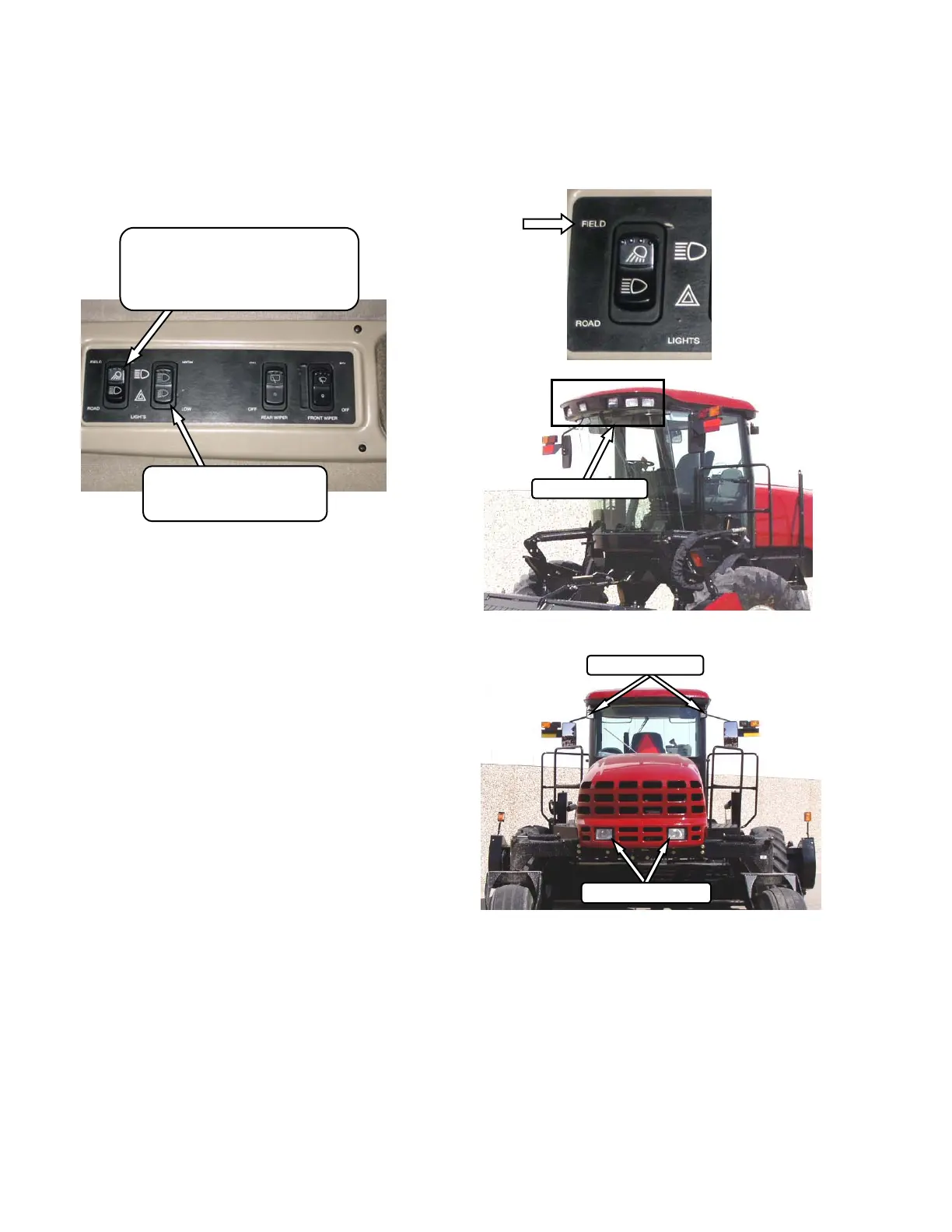

5.7.1 Cab Forward Lighting
HI/LO LIGHTS
Controls Hi/Lo Beam For
Road Lights In Engine Hood
LIGHTS SWITCH
Controls Field and Transport Lights
FIELD
OFF
ROAD
REAR – CAB FWD
LIGHTS - FIELD
SWATH LIGHTS
FRONT – CAB FWD
FIELD LIGHTS
To Next Page
