6.6.3 Auger Speed
6.6.3.1 A30-S and A30-D Headers
On A30 Series auger headers, the auger speed
is fixed to the reel speed.
NOTE
The auger speed can be independently
changed from the reel speed by changing
the drive sprocket. Refer to A30-S, A30-D
& A40-D Self Propelled Windrower
Headers OPERATOR’S MANUAL.
Display the auger speed as follows:
CAUTION
Check to be sure all bystanders have cleared
the area.
6.6.3.2 A40-D Headers
On A40-D double knife headers, the auger
speed can be changed independently from the
reel speed with a switch on the CDM.
CAUTION
Check to be sure all bystanders have cleared
the area.

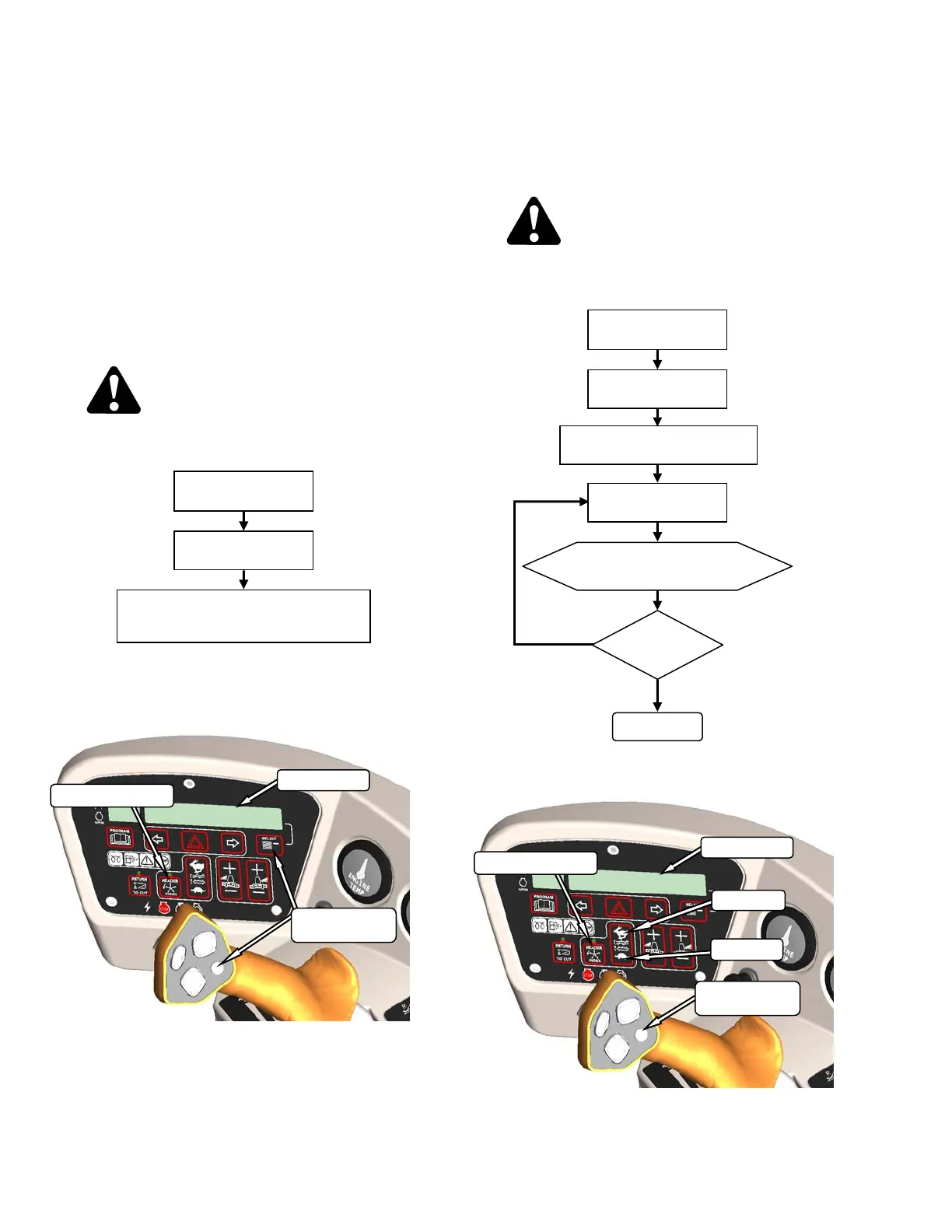

DISPLAY
HEADER INDEX
DISPLAY
SELECTOR
DISPLAY
SELECTOR
DISPLAY
HEADER INDEX
FAST
SLOW
ENGAGE HEADER
ON CDM PRESS
FAST OR SLOW
DISPLAY SHOWS
##.# AUGER SPEED
DONE
SPEED
O.K.?
NO
YES
PRESS DISPLAY SELECTOR
FOR ##.#
A
UGER SPEED
HEADER INDEX
SWITCH - OFF
##.# = 00.0 – 99.0
00.0 = 150 rpm
* 99.0 = 320 rpm
* Auger Speed Not To Exceed 320 rpm.
ENGAGE HEADER
HEADER INDEX
SWITCH - OFF
ON GSL PRESS SELECTOR BUTTON
OR SELECT SWITCH ON CDM FOR
##.#
AUGER
SP
EE
D
##.# = 00.0 – 99.0
00.0 = 150 rpm
* 99.0 = 320 rpm
* Auger Speed Not To Exceed 320 rpm.
