OPERATOR’S STATION
Form 169017 25 Issue – June 2008
5.14 ENGINE CONTROLS/GAUGES

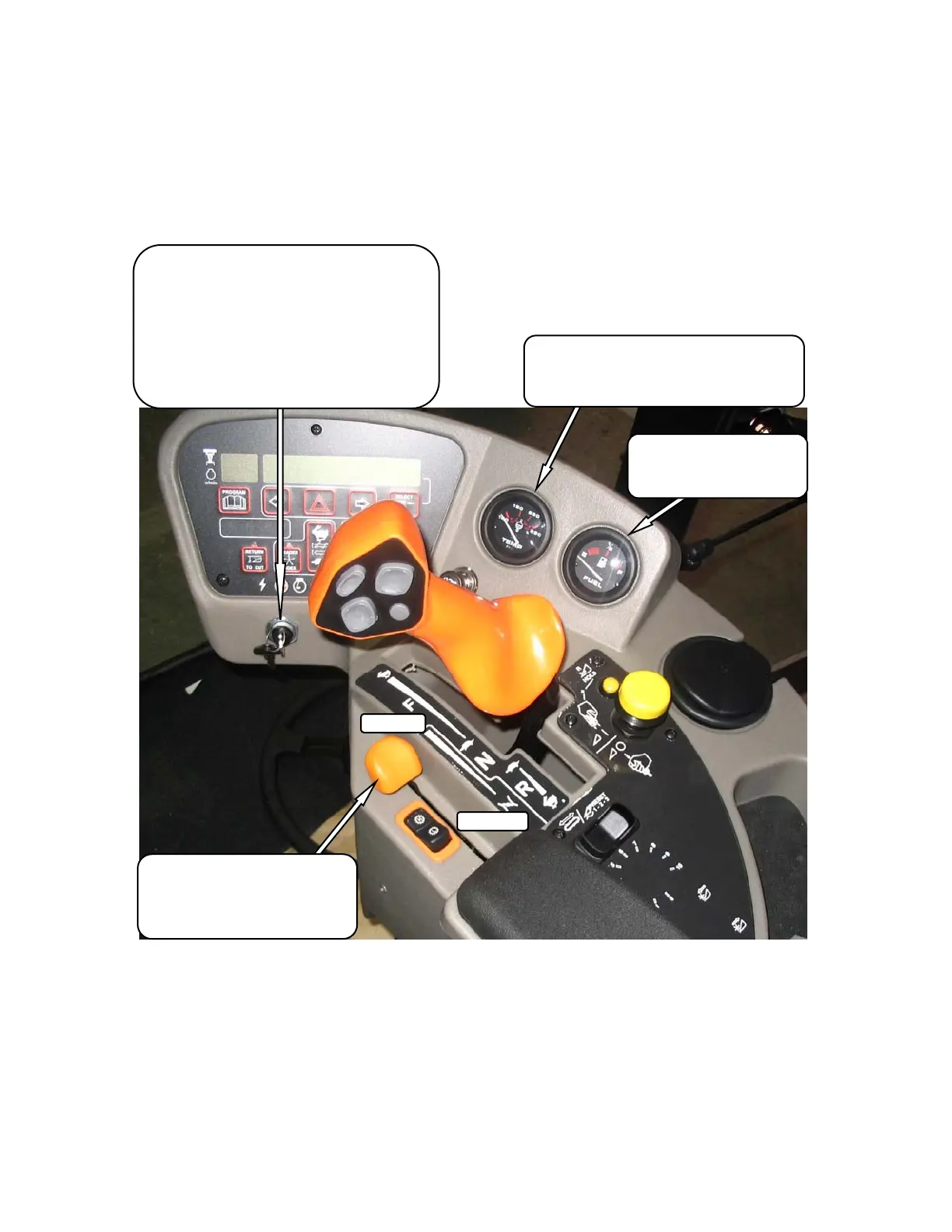

All engine controls and gauges are conveniently
located on the operator’s console. Refer to the
following illustration for the location and a
description of each.
THROTTLE
Controls Engine RPM.
FULL – Push Lever Forward
OPERATING – See Section 7.9.11
CLOSED – Pull Lever Back
IGNITION SWITCH
ACC – Fully Counter-Clockwise
OFF – All Electrical Systems Off
RUN – Clockwise
START– Fully Clockwise To Crank Engine
Release and Switch Returns to RUN
REMOVE KEY WHEN WINDROWER NOT IN USE.
KEY ALSO LOCKS DOORS.
FUEL
Indicates Fuel Level In Tank
E - Empty
F - Full
ENGINE TEMPERATURE
Indicates Engine Coolant Temperature
Normal Running 180°-225°F (82°-107°C).
Warning Tone Over 230°F (110°C).
FULL
CLOSED
