HEADER OPERATION – A SERIES
Form 169017 97 Issue – June 2008

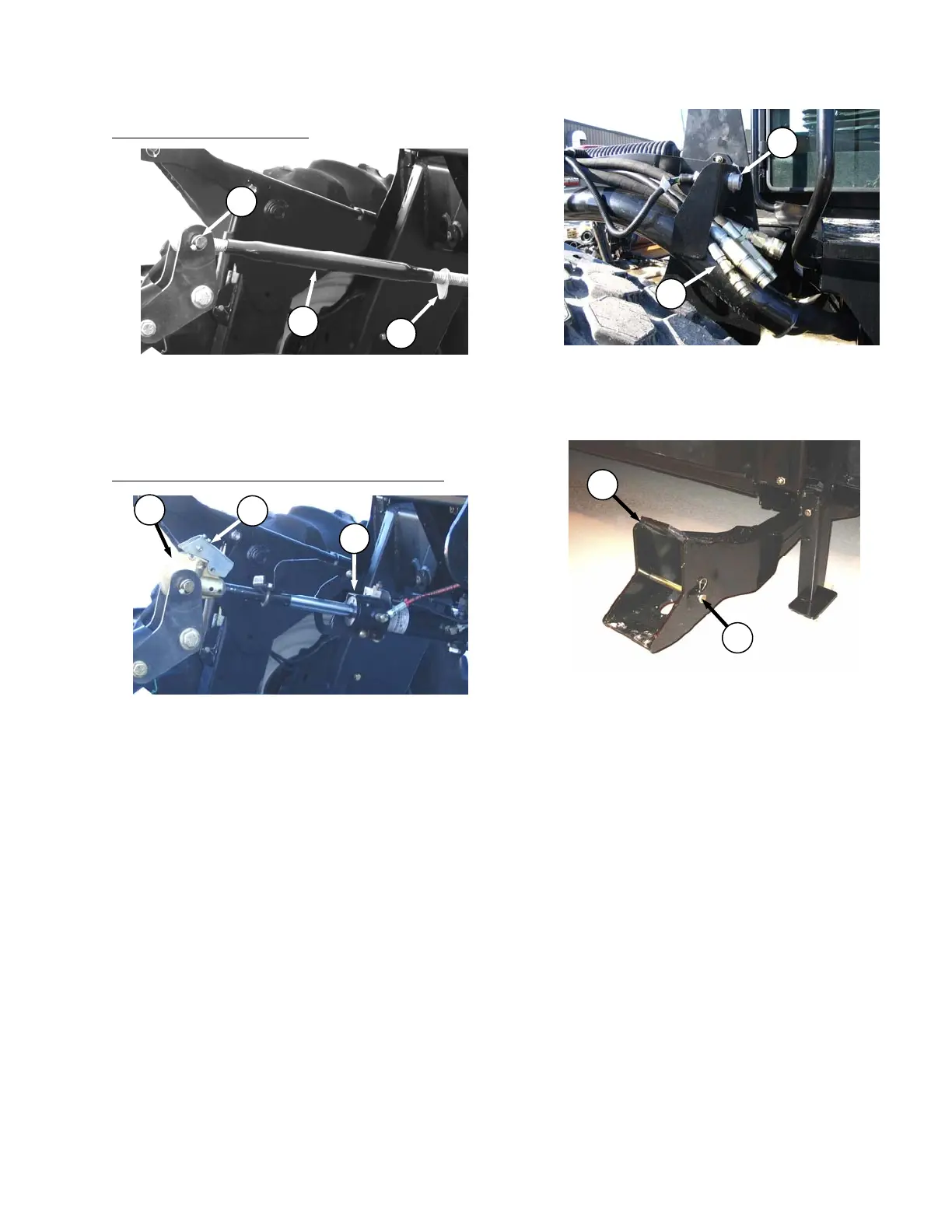

h. Disconnect center link as follows:
MECHANICAL LINK – M150
1. Loosen nut (G) and rotate barrel (H) to
relieve load on link.
2. Remove cotter pin on pin (J), and remove
pin to disconnect from header. Re-install pin
in header.
HYDRAULIC LINK – M200 STD, M150 OPTION
1. Activate header tilt cylinder switch on GSL to
release load on center link cylinder (K).
2. Lift hook release (L) and lift hook (M) off
header pin.
NOTE
If optional center link lift cylinder is
installed, lift release (L) and then operate
the link lift cylinder from the cab to
disengage the center link from the header.
i. Disconnect header drive hydraulics (N) and
electrical harness (O). Refer to the Auger
Header Operator’s Manual.
j. Slowly back tractor away from header.
k. Re-install pins (A) in header boots (B).
B
A
K
L
M
H
G
J
N
O
