MAINTENANCE/SERVICE
Form # 169017 112 Issue – June 2008

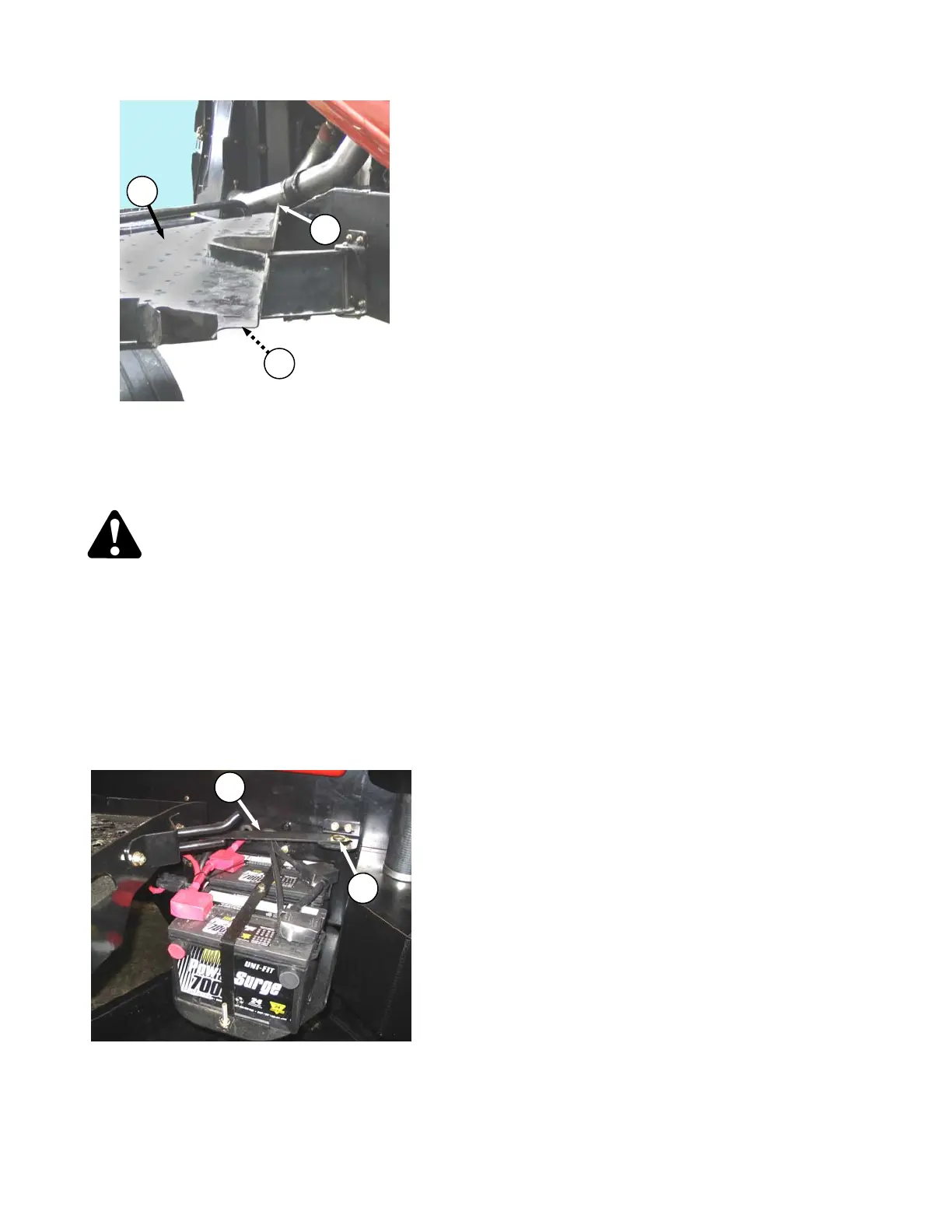

4. At the same time pull front (cab-forward) end
of platform away from frame while moving it
towards the walking beam. Aft corner (E) of
platform should project slightly into engine
bay when optimum opening is reached.
CAUTION
Do not stand on the platform in the unlocked
position. It is unstable and may result in a
fall.
5. Swing link (D) under platform.
b. Close platform as follows:
1. Swing link (D) out from under platform all the
way forward.
2. Move platform front (cab forward) end
inboard while moving it away from the
walking beam.
3. Position link (D) on bracket and install bolt
and nut (C). Do not fully tighten.
4. Move platform to closed position, ensuring it
is locked.
5. Close engine compartment hood.
D
E
B
D
C
