MAINTENANCE/SERVICE
Form 169017 167 Issue – June 2008

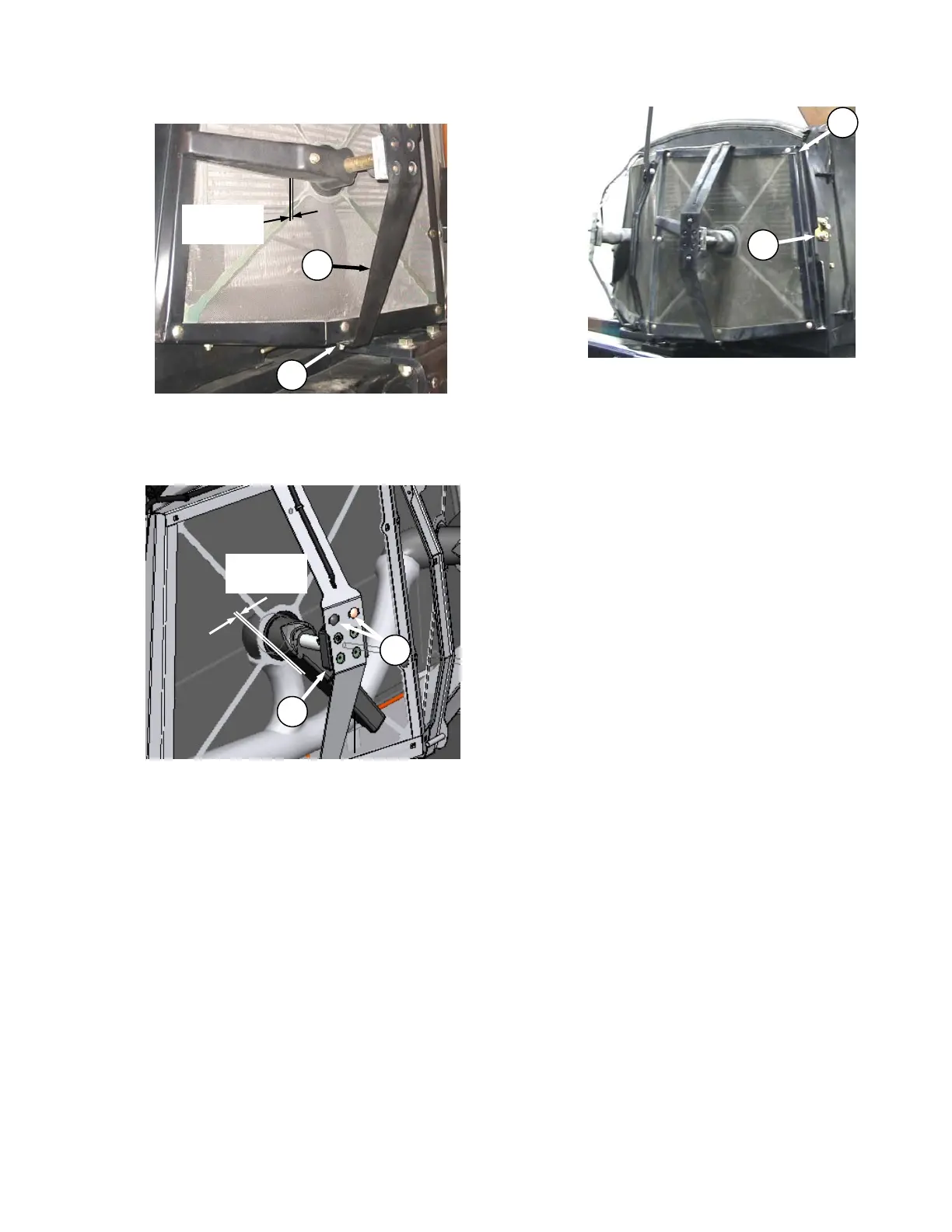

i. If necessary, adjust clearance as follows:
1. Loosen nut (B) on motor support (C).
2. Move support in or out until duct is 0.08-0.24
in. (2-6 mm) from screen near the center.
3. Re-tighten nut (B).
4. Loosen the two motor mount bolts (H).
5. Move motor/ duct assembly (J) to obtain
0.04-0.32 in. (1-8 mm) gap to screen at full
rotation of the duct.
6. Re-tighten nuts (H) on motor mount.
j. Close screen access door (E) and engage latch
(D).
k. Lower engine compartment hood.
B
C
0.08-0.24 in.
(2-6 mm)
H
J
0.04-0.32 in.
(1-8 mm)
D
E
