MAINTENANCE/SERVICE
Form # 169017 176 Issue – June 2008

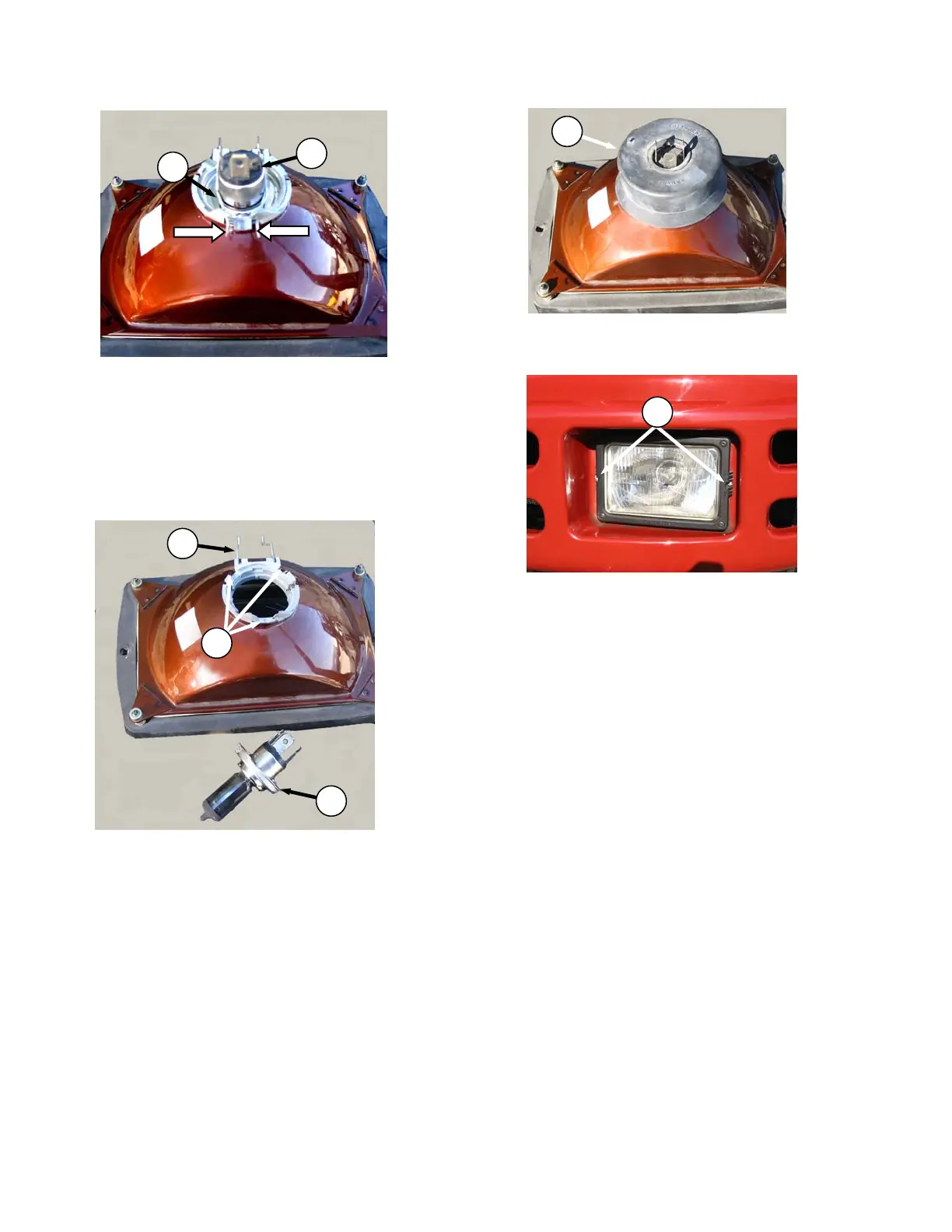

c. Pinch the wire retainer (E) and lift away from
hooks.
d. Remove bulb (F) from body.
IMPORTANT
Do not touch the glass of the halogen bulb
as the oils or other chemicals from your
skin will cause the bulb to fail prematurely.
e. Align lugs on new bulb with slots (G) in body and
push into place.
f. Secure bulb with wire retainer (E)
g. Replace rubber insulator boot (D).
h. Push connector onto light bulb.
i. Position headlight into light receptacle, ensuring
top is up, and secure with screws (C).
NOTE
Aligning of light should not be necessary.
E
F
G
E
F
D
C
