MAINTENANCE/SERVICE
Form 169017 183 Issue – June 2008
7.12.11.3 Main Fuses - 125 Amp

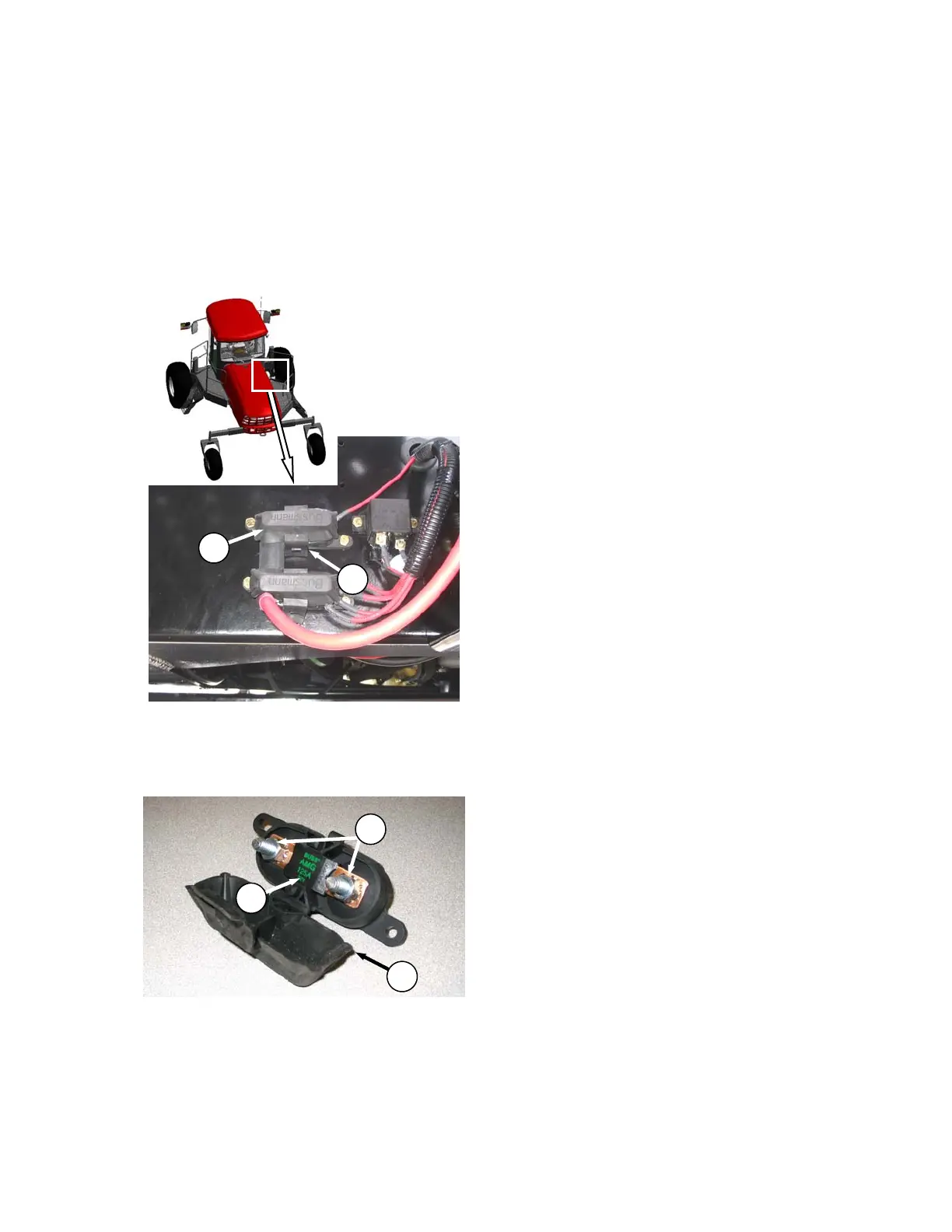

The 125 amp main fuse holders are located on
the frame under the right cab-forward side
platform beside the battery. Access the fuses as
follows:
a. Stop engine and remove key.
b. Move right cab-forward side platform rearward
(cab-forward).
c. To check condition of fuse, pull tab (F) and open
cover (G).
d. Visually examine fuse (H) for indications of
melting.
e. To remove fuse (H), remove two nuts (J) and
pull fuse free from holder. Existing wiring may
need to be pulled off the stud first.
f. Install new fuse on studs and any existing wiring
that was removed.
g. Secure with nuts (J).
h. Close cover (G) and secure with tab (F).
i. Return platform to normal position. Ensure lock
engages.
G
J
H
G
F
