MAINTENANCE/SERVICE
Form # 169017 192 Issue – June 2008
7.14.1.4 Drive Wheel Removal/Installation
DANGER
To avoid severe personal injury or death
caused by machine runaway, shut off engine
and remove key before performing any of the
following checks and/or adjustments.
a. Remove header.
b. Park windrower on level ground and block all
wheels.
c. Place GSL in N-DETENT, shutdown engine and
remove key.

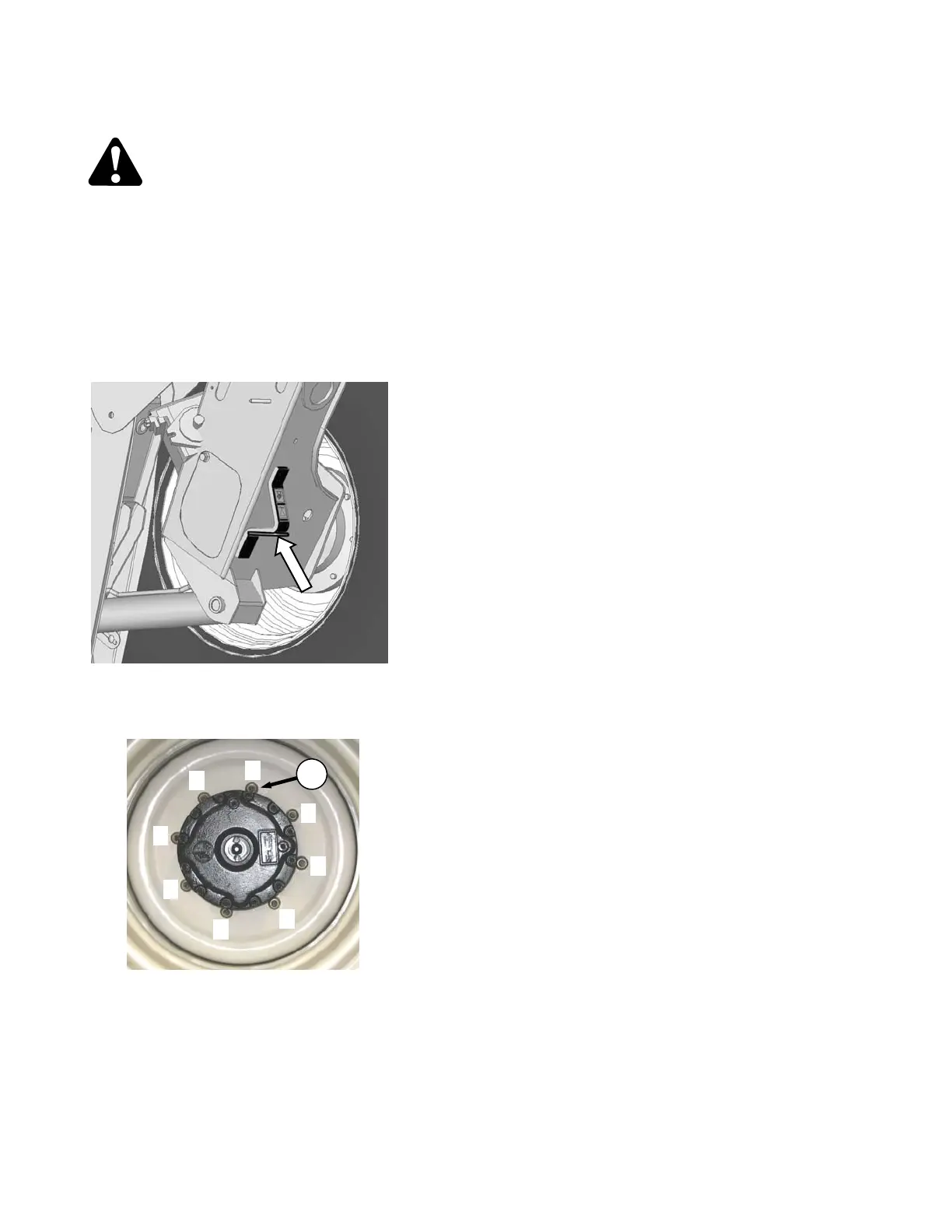

d. Jack up windrower tractor under leg jack point
and raise windrower tractor wheel slightly off
ground.
e. Undo wheel nuts (C) and remove wheel.
f. To install new tire, ensure that air valves are on
outside and tire tread point forward. For "Turf”
tires (diamond tread), be sure arrow on sidewall
points in forward rotation.
g. Position wheel on hub and install wheel nuts (C).
h. Tighten nuts (C) to 175-200 ft-lbf (237-271 N·m)
using the tightening sequence as shown.
NOTE
To avoid damage to wheel disks, do not
over-tighten wheel nuts.
i. Repeat sequence three times.
j. Lower windrower tractor and remove jack.
1
5
3
7
8
2
4
6
C
