MAINTENANCE/SERVICE
Form # 169017 196 Issue – June 2008

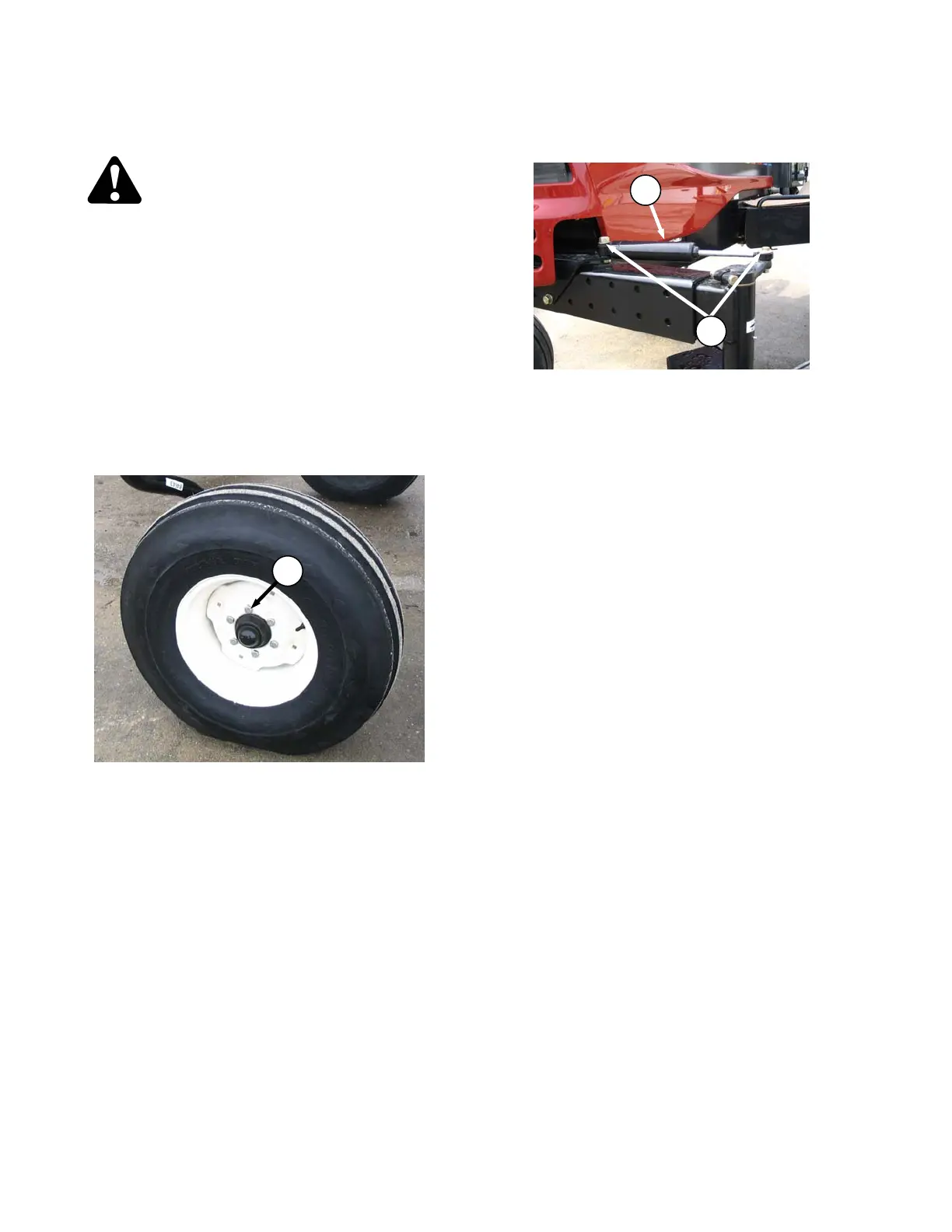

7.14.2.5 Formed Caster Wheel
Removal/Installation
DANGER
To avoid severe personal injury or death
caused by machine runaway, shut off engine
and remove key before performing any of the
following checks and/or adjustments.
a. Remove the caster wheel as follows:
1. Park windrower on level ground and block
all wheels.
2. Place GSL in N-DETENT, shutdown engine
and remove key.
3. Raise end of walking beam using a jack
(4000 lb (1816 kg) capacity) or other
suitable lifting device until the wheel is
slightly off the ground.
4. Undo the six wheel bolts (E) and remove
wheel from hub.
b. Install the caster wheel as follows:
1. Position wheel on hub and install wheel
bolts (E).
2. Torque nuts (E) to 100 ft-lbf (135 N·m) using
the tightening sequence as shown on
previous page.
3. Lower windrower tractor and remove jack.
7.14.2.6 Caster Wheels Anti-Shimmy
Dampeners
Each caster is equipped with a fluid filled anti-
shimmy dampener (C). The mounting bolts (D)
need to be checked periodically for security.
Refer to Section 7.15, Maintenance Schedule.
Each bolt should be tightened to 100 ft-lbf (135
N·m).
C
D
E
