WINDROWER TRACTOR OPERATION
Form 169017 67 Issue – June 2008

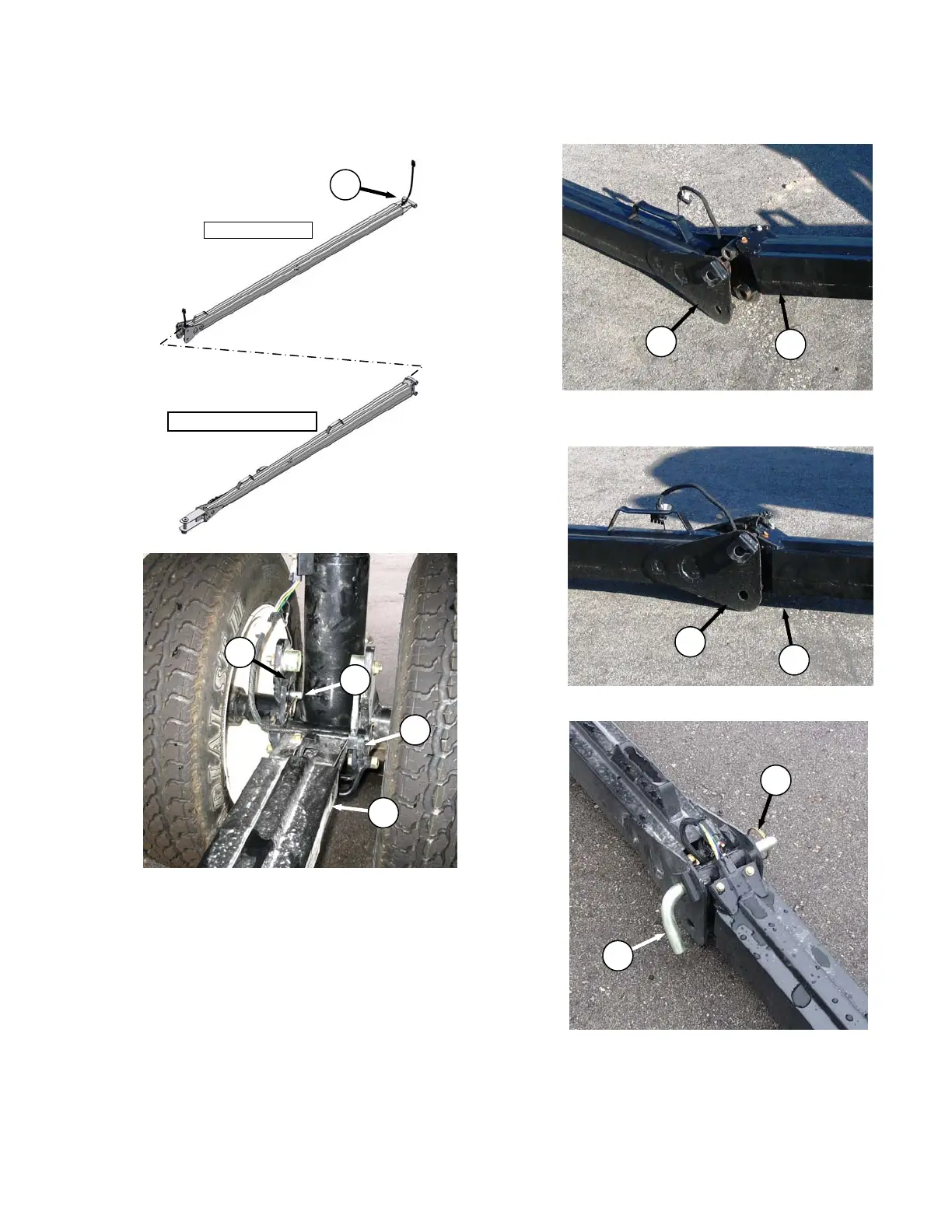

j. Attach header transport hitch to header as
follows:
1. Position end (A) of the aft section onto front
wheel hook (B).
2. Push down until latch (C) captures the end
(A).
3. Secure latch (C) with clevis pin (D).
4. Remove the L-pin from end (E) of aft section
if installed.
5. Position end (F) of the forward section into
end (E) of the aft section.
6. Lower forward section into aft section.
7. Fully insert L-pin (J) in upper hole and turn
pin to lock it. Secure with ring pin (K).
(continued next page)
