HEADER OPERATION – D SERIES
Form 169017 85 Issue – June 2008

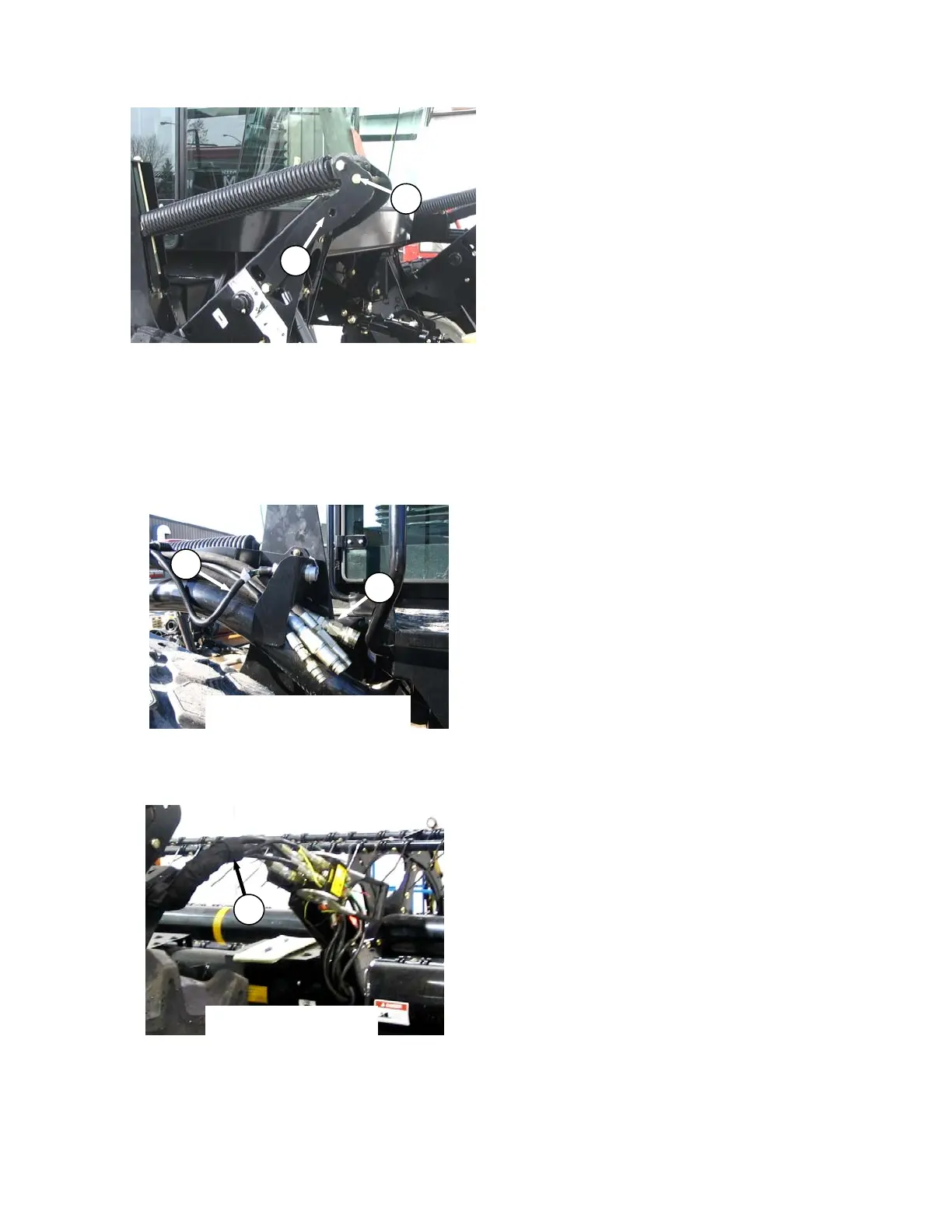

k. Remove pin (N) from storage position in linkage
and insert in hole (O) to engage float springs.
Secure with hairpin.
l. Disengage lift cylinder stops.
m. Start engine and activate header lift cylinders
(switch on GSL) to lower header fully.
n. Stop engine and remove key.
o. Connect header drive (P) and electrical harness
(Q) to header. Refer to the Draper Header
Operator’s Manual.
p. Connect reel hydraulics (R) at RH side of tractor.
O
N
Q
P
HEADER DRIVE HOSES
R
REEL HYDRAULICS
To Next Page
