Mahr GmbH, MarSurf M 300 and RD 18
11
9 V =
0 I
+ –
12
14
15
16
10 11
13

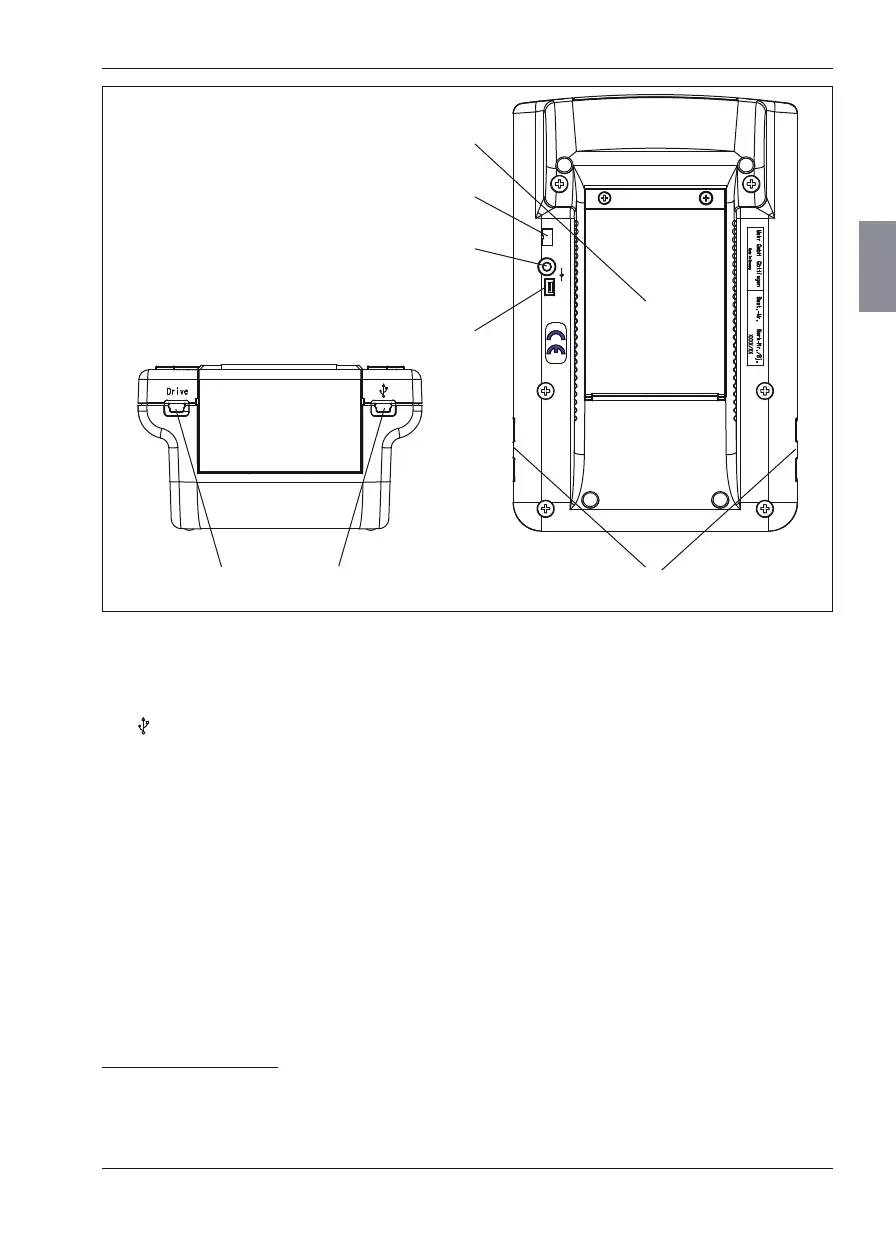

Fig. 3
Connections of the MarSurf M 300 surface texture meas uring instrument (back side and bottom)
10 DRIVE Connection
6
for MarSurf RD 18
drive unit
11 USB interface for connection to
a PC
7
12 0 / I Reset switch
"0": As supplied (power supply
disconnected),
"I": Operating status
13 9 V = Connection for AC adapter
14 MarConnect interface
15 Battery compartment
16 Eyes for shoulder belt
6 instead of the Bluetooth connection
7 with the Windows 2000 or Windows XP operating sys-
tem
