Mahr MarSurf RD 18 User Manual

Mahr GmbH, MarSurf M 300 and RD 18
12
23 Green START key
Depending on
the situation: Switches the RD 18 on.
8
Starts a meas urement.
Aborts a meas urement
in progress.
Pressing for approx.
3 seconds switches the
RD 18 and the M 300
off.
24 Pick-up protection
can be used in conjunction with a vertical
adjuster or a meas uring stand as a second
support point
25 Pick-up
26 Mount for attaching accessories
(vertical adjusters, end face vee-block)
27 Pair of bow-type vertical adjusters,
arranged as three-point support
(can also be used individually)
8 Only possible if the reset switch (29) is in the "I" position.
20
21
22
23
24
25
26
27

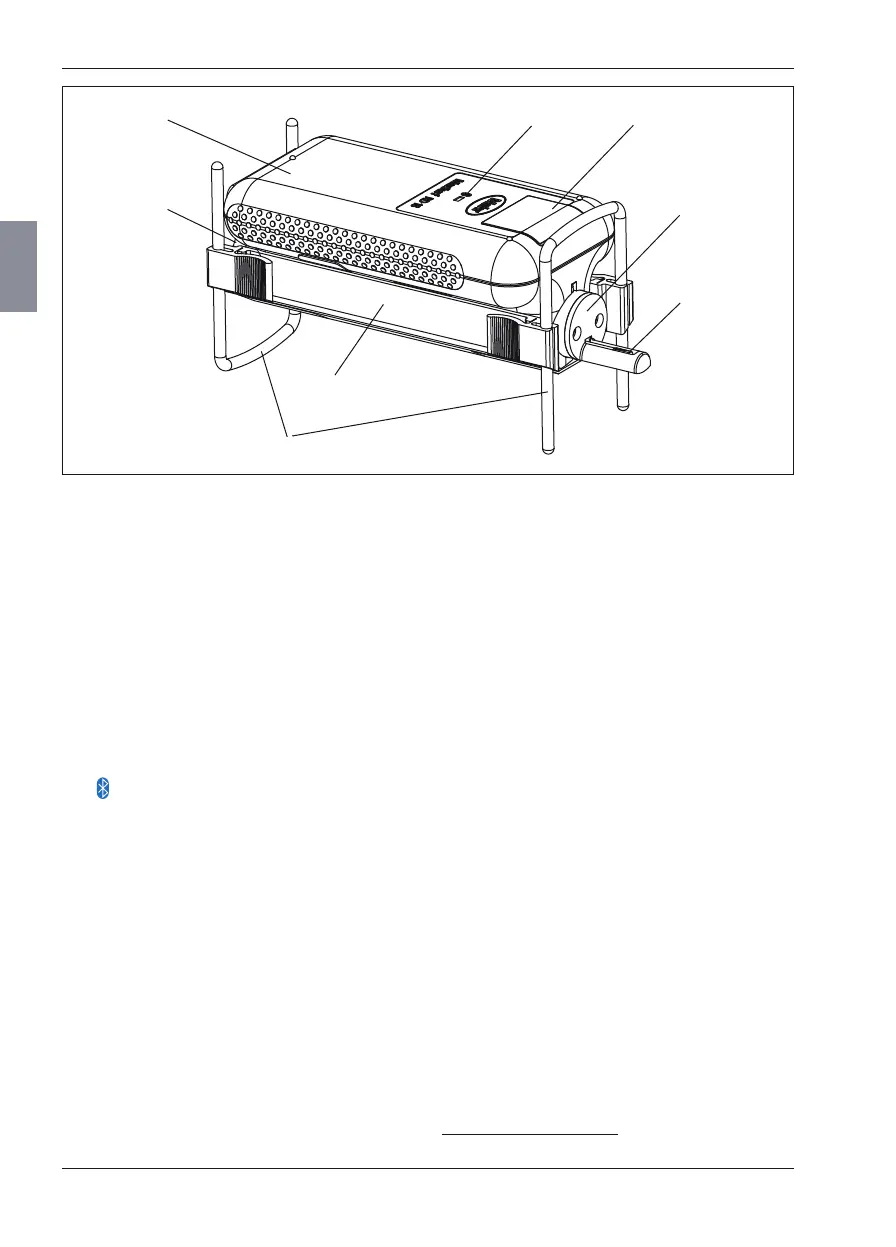

Fig. 4
MarSurf RD 18 drive unit with height adjustment accessory
20 Drive unit,
can be rotated and moved longitudinally,
with various lock-in positions
21 Housing
Top: Three-point support for upside-
down meas urements
Bottom: Vee-block for cylindrical test-
pieces,
4 internal threads for attaching
accessories
Inside: Standard
22 Symbol for Bluetooth connec-
tion;
LED lights up in blue when
there is a Bluetooth connection
with a MarSurf M 300;
LED blinks during a meas-
urement in progress.
