Man B&W L35MC6-TII

MAN B&W 19.10
Page 8 of 10
MAN Diesel
MAN B&W L35MC6 198 77 88-1.0

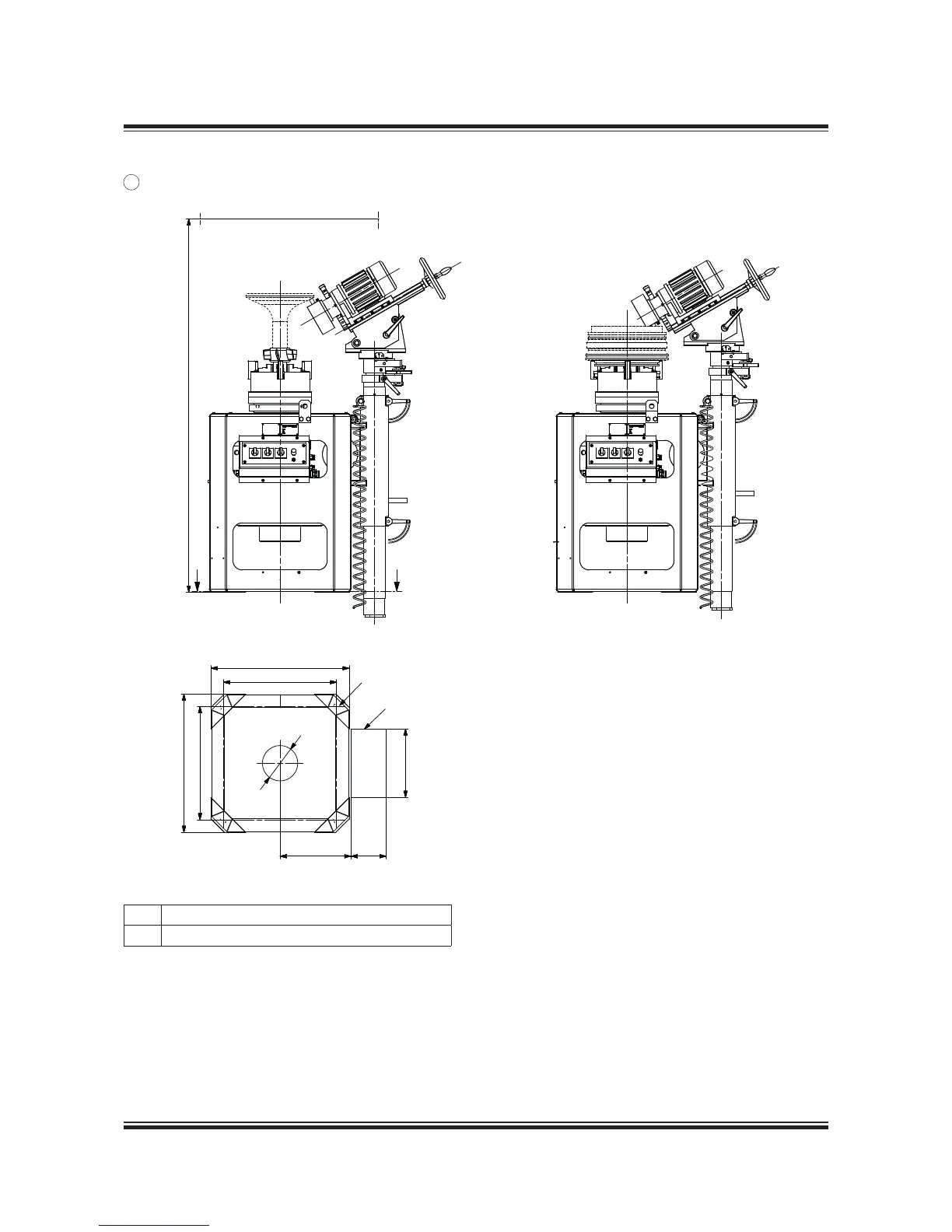

Fig. 19.10.07: Dimensions and masses of tools
1
Pos. Description
1 Valve seat and spindle grinder
513 13 74-6.0.0
Necessary headroom min. 3,040 mm
A
A
A-A
480 586
586
480
300.5 150
290
ø150
4 x ø18 holes in floor
Hole in floor
