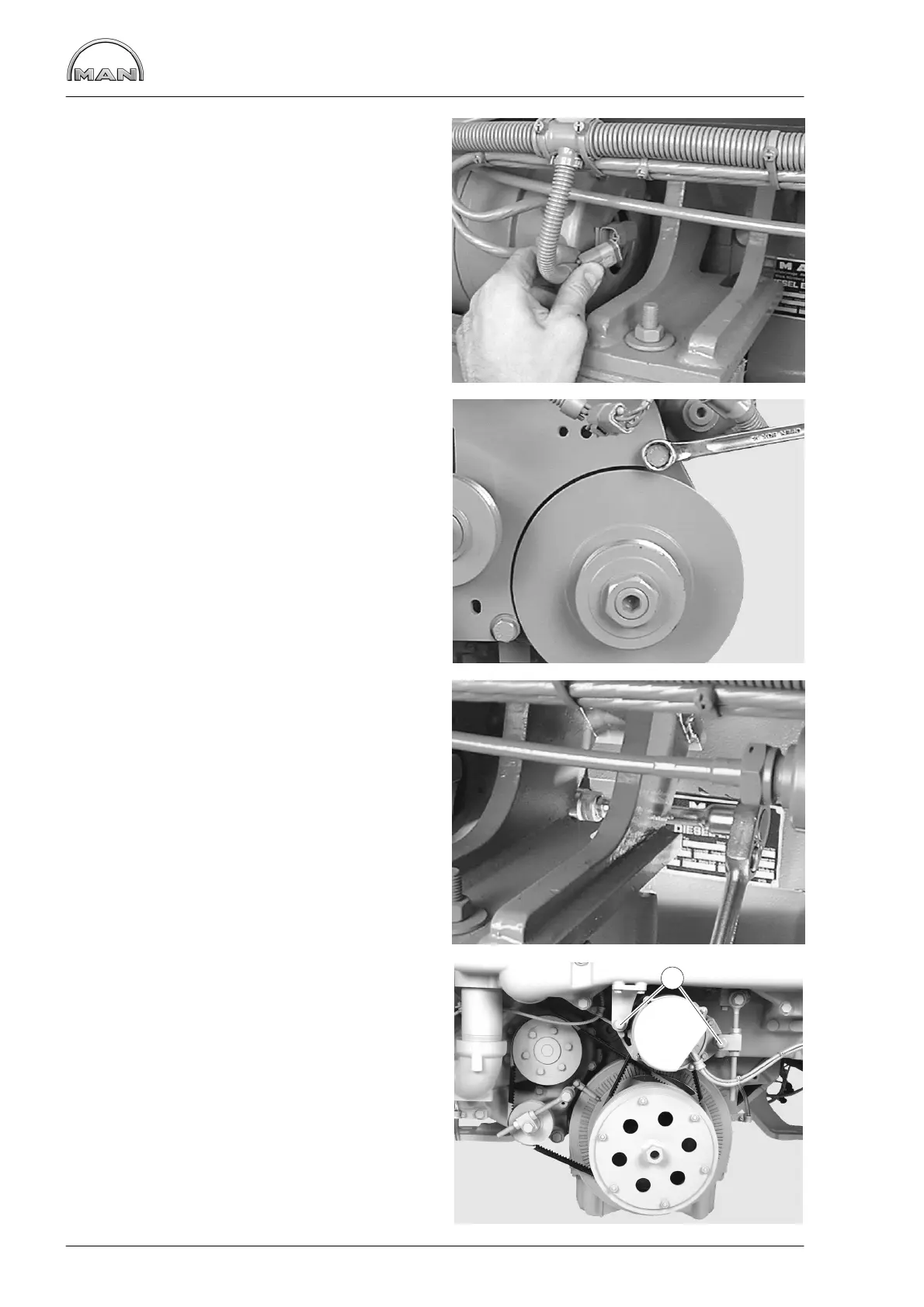

Removing and attaching alternator
134
Removing alternator
D Relax V-belt and take it off the alternator pulley,
see page 138
D Disconnect earth cable from battery
Fig. 1
Disconnect connectors B+ and B− from alternator.
Disconnect connectors D+ and W (plug) from alter-
nator.
Alternator − 120 A bottom left
Fig. 2
Loosen the mounting bolts at the front of the
bracket.
Fig. 3
Loosen the mounting bolts at the back of the
bracket.
Remove the alternator.
Alternator − 55 A at heat exchanger
Fig. 4
Remove mounting bolts À.
Remove the alternator.
