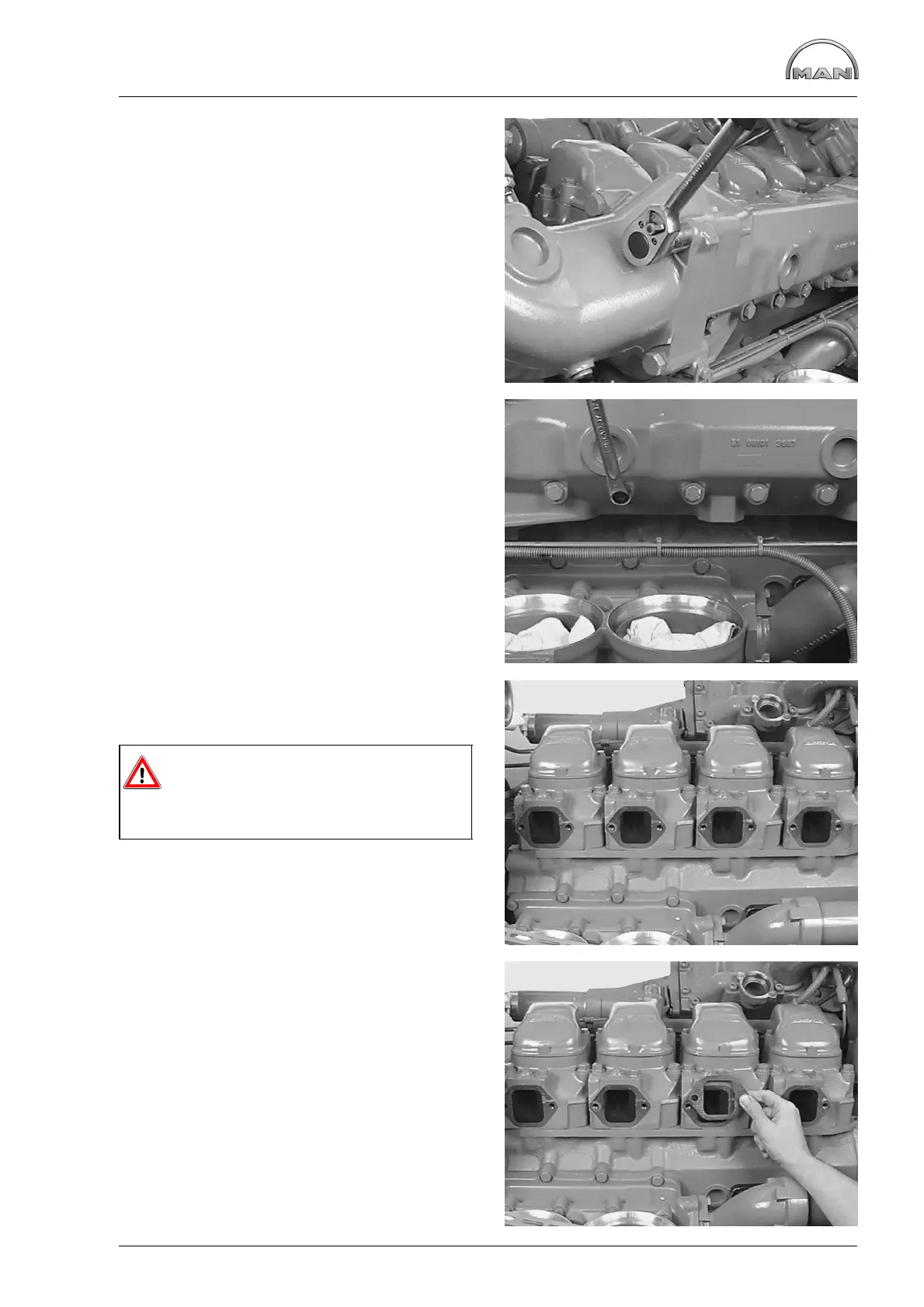

Removing and installing exhaust pipe
83
Removing exhaust pipe
D Draining off coolant, see page 39
D Remove turbocharger, see page 87
Fig. 1
Remove exhaust manifold.
To remove the right−hand exhaust pipe, the oil fil-
ter bowls must be removed, see page 61. Close up
oil filter console to prevent dirt or foreign matter
from getting into the lube oil circuit.
Fig. 2
Release the mounting bolts.
Fig. 3
Remove exhaust pipe.
Danger:
The exhaust pipe is heavy!
If necessary, replace 2 bolts with stud bolts
as guide.
Installing exhaust pipe
Fig. 4
Position the exhaust pipe with new gaskets.
