Removing and installing power take-off for hydraulic pump
140
Removing power take-off for hydraulic
pump
D Remove crankcase breather
D Remove Fuel Service Centre, see page 37

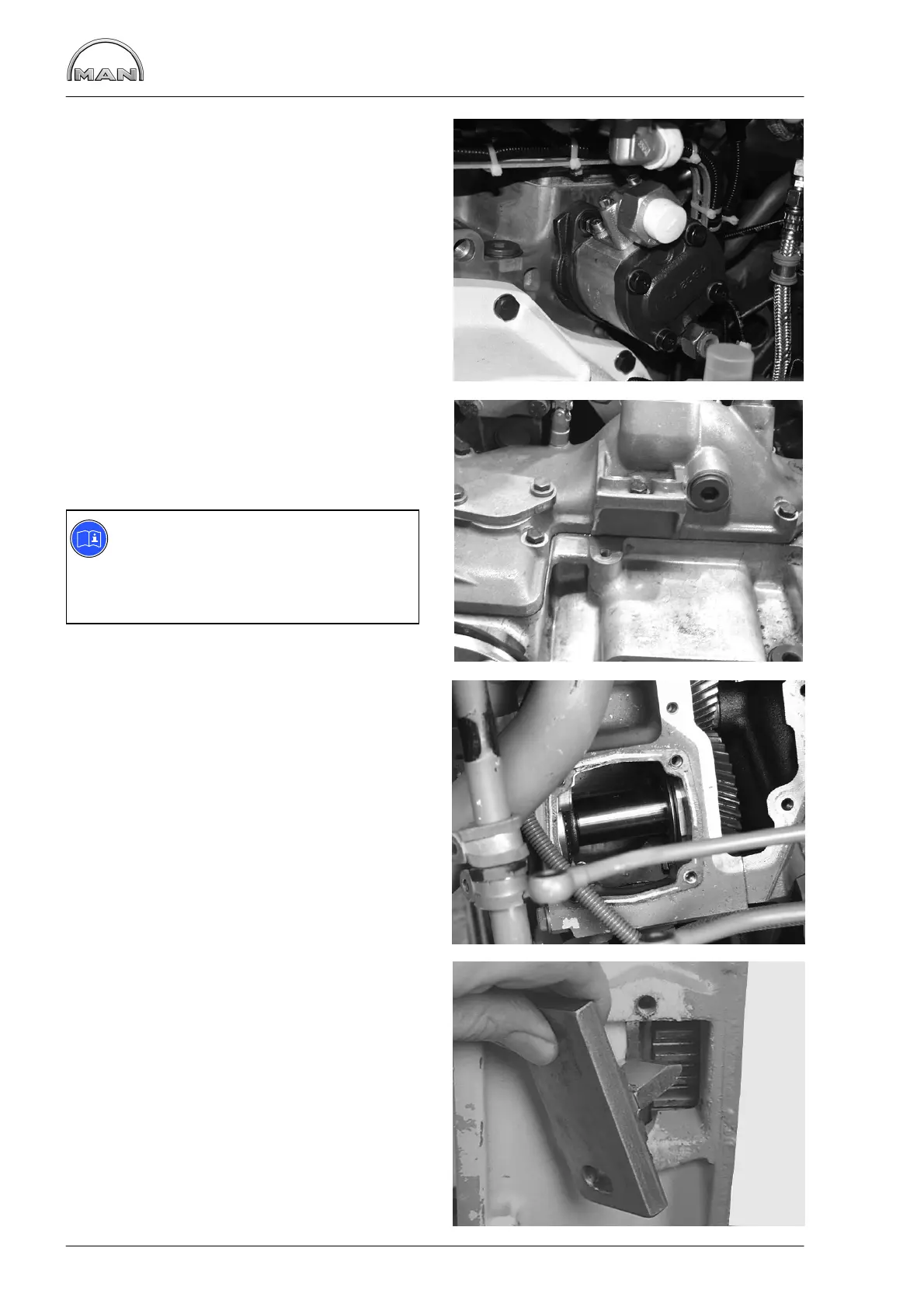

Fig. 1
Remove hydraulic pump or blind flange.
Fig. 2
Oil and coolant lines, brackets for wiring harnesses
etc. are attached to the timing case, and these
must be removed.
Note:
To facilitate reassembly, memorise or mark
down in a drawing or photo the positions of
the brackets, pipe clamps and spacer
sleeves etc.
Remove timing case cover.
Fig. 3
Remove rectangular cover on right-hand side of
timing case cover.
The PTO shaft is now visible.
Fig. 4
Block the crank gear.
The picture shows a special tool that is to be fitted
to the inspection hole in the flywheel housing.
