1
2
3
4

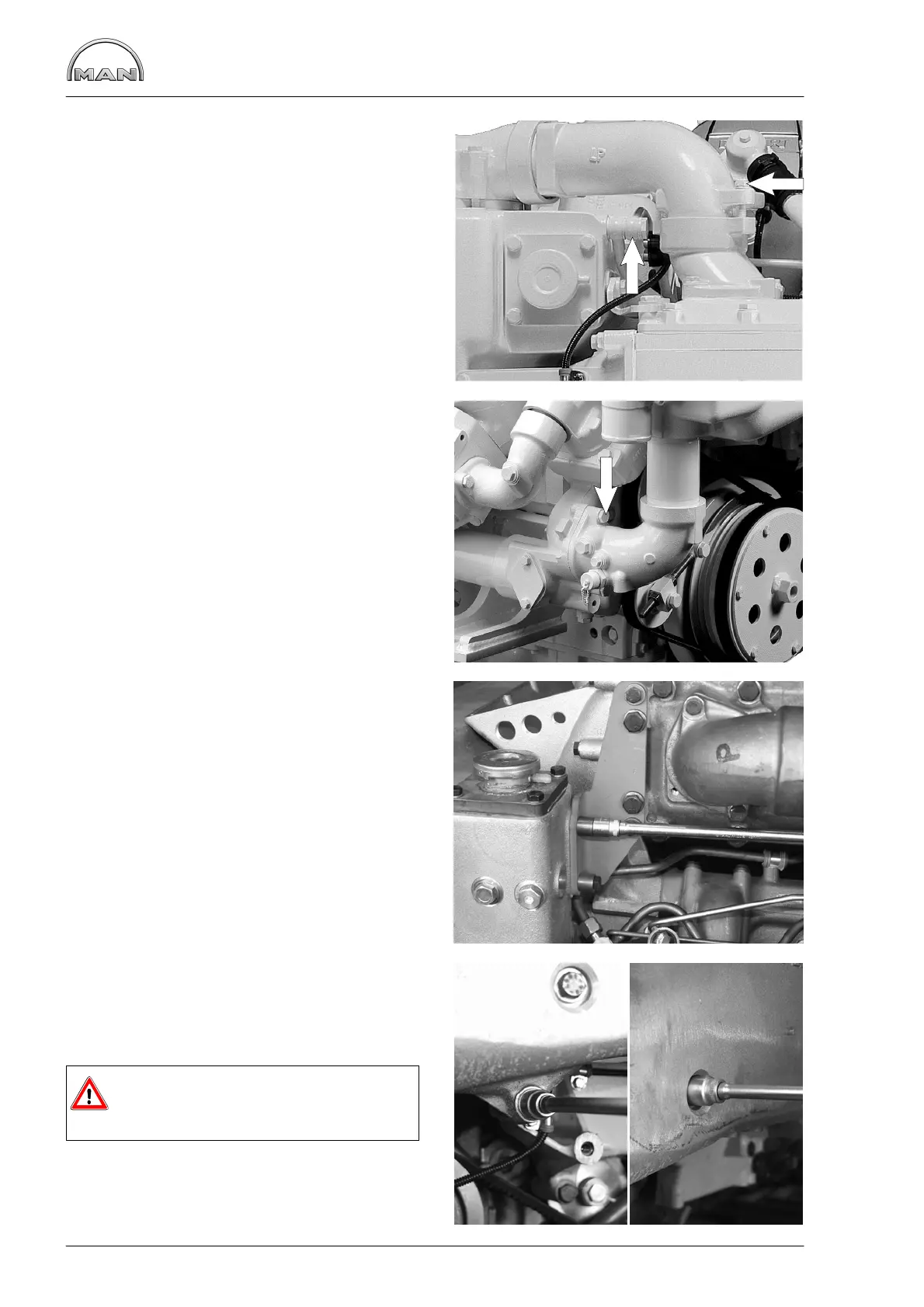

Removing and installing heat exchanger
52
D Drain off coolant, see page 39
Figs. 1 and 2
Unscrew all pipe connections to the heat ex-
changer.
Fig. 3
Unscrew the mounting bolts at the brackets.
Fig. 4
Unscrew the mounting bolts on the front side of the
engine.
Take off heat exchanger.
Danger:
The heat exchanger is heavy.
Use lifting gear or work with helper.
