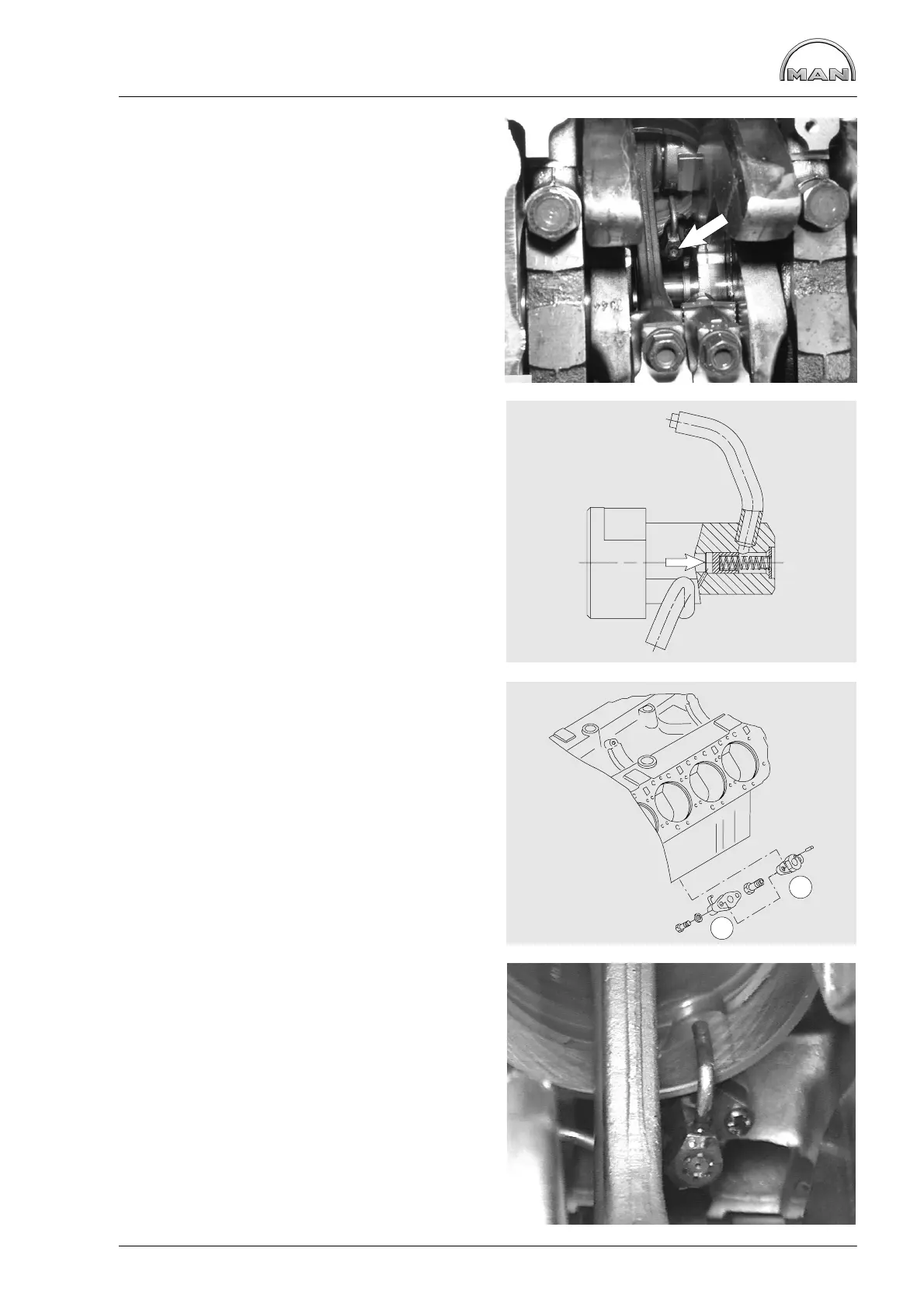

Oil injection nozzle
71
Removing the oil injection nozzle
D Drain off oil, see page 64
D Removing the oil pan, see page 64
Fig. 1
Unscrew the mounting bolts of the oil injection
nozzle (arrow).
Remove oil injection nozzle with valve.
Check the oil injection nozzle valve
Fig. 2
Unscrew the oil injection nozzle valve from the
body of the oil injection nozzle.
The valve plunger must move up and down easily.
If the valve plunger sticks or jams, replace the oil
injection nozzle valve.
Opening pressure, see “Service Data”.
Installing the oil injection nozzle
Fig. 3
Position the oil injection nozzle À at the oil injec-
tion nozzle flange Á.
Fig. 4
Also tighten the mounting bolts.
Tightening torque: 70 Nm
