TDC
BDC
1
2
3
4
5
6
7
Limit values
Service Data
Dimensions
163

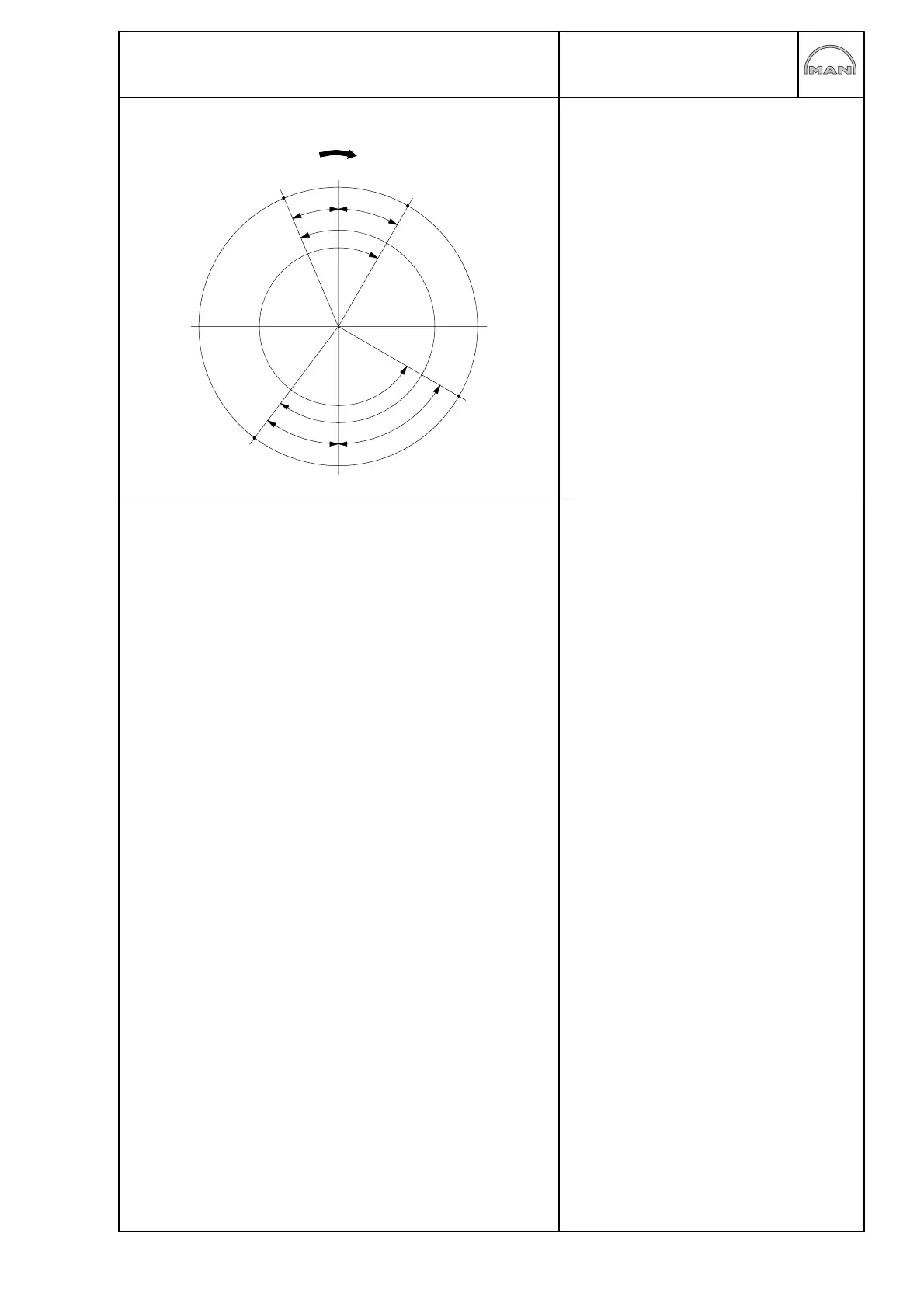

Valve timing
1 = engine direction of turn
2 = intake valve opens 24 ° before TDC
3 = exhaust valve closes 36 ° after TDC
4 = exhaust valve opens 63 ° before
BDC
5 = intake valve closes 27 ° after BDC
6 = Exhaust open for 270°
7 = Inlet open for 240°
The degrees specified refer to the crank-
shaft angle
Compression pressures
good above 26 bar
permitted 2326 bar
repair required below 23 bar
Pressure difference (between the individual cylinders) max. 4 bar
