Limit values

Service Data

Dimensions

152

Crankcase

standard size: 153,90−154,00 mm

for liners with larger outer diameter:

0,5 and 1,0 mm: 154,40−154,50 mm

standard size: 145,80−145,84 mm

for liners with larger outer diameter:

0,5 mm: 146,30−146,34 mm

1,0 mm: 146,80−146,84 mm

9,97−9,99 mm

standard size: 144,50−144,54 mm

for liners with larger outer diameter:

0,5 mm: 145,00−145,04 mm

1,0 mm: 145,50−145,54 mm

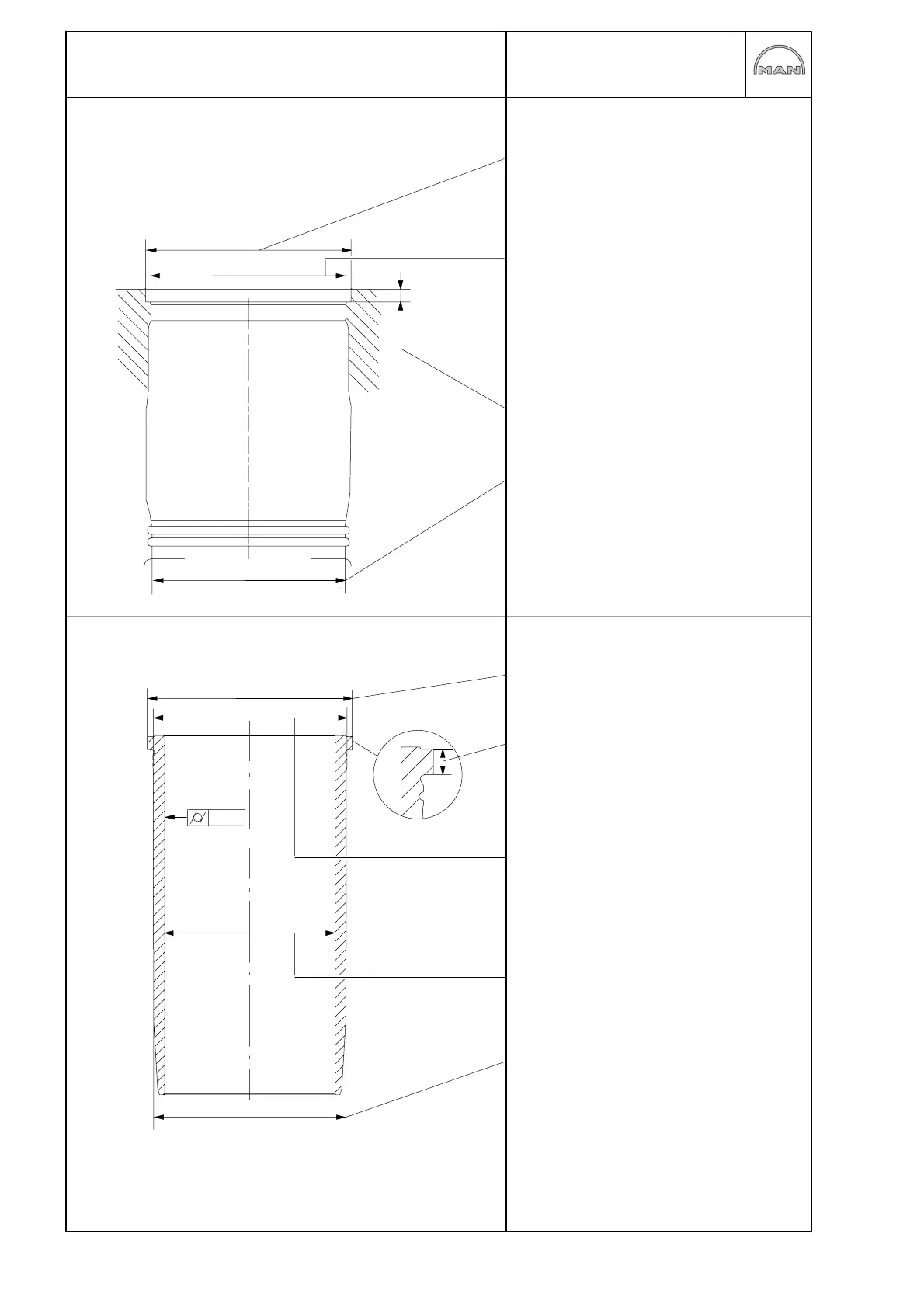

Cylinder liner

standard size: 153,694−153,757 mm

with larger outside diameter

0,5 and 1,0 mm: 154,194−154,257 mm

standard size: 10,030−10,050 mm

with more flange height:

0,2 mm: 10,230−10,250 mm

Liner protrusion above upper deck of

crankcase: 0,04−0,08 mm

standard size: 145,761−145,786 mm

with larger outside diameter

0,5 mm: 146,261−146,286 mm

1,0 mm: 146,761−146,786 mm

127,990−128,010

Max. wear limit:

0.15 mm below base dimension

standard size: 144,432−144,457 mm

with larger outside diameter

0,5 mm: 144,932−144,957 mm

1,0 mm: 145,432−145,457 mm
