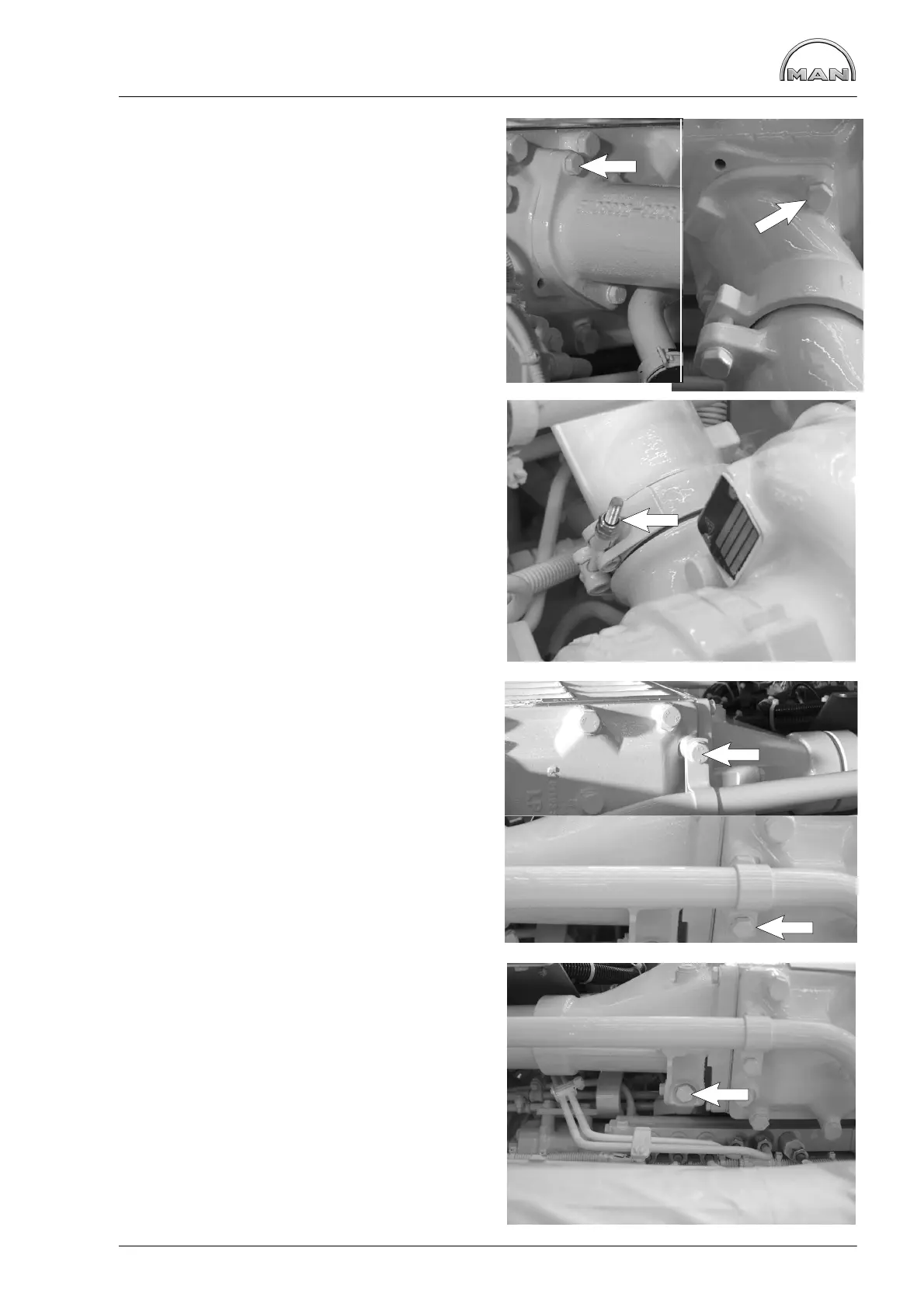

Removing and installing intercooler
91
Removing intercooler
D Remove heat exchanger, see page 52
Fig. 1
Remove the bolts from the flanges on the pipe
connections.
Fig. 2
Unscrew the charge-air manifold and charge air
pipes.
Fig. 3
Unscrew the mounting bolts at the venting line
brackets.
Fig. 4
Unscrew the mounting bolts at the brackets.
