Limit values
Service Data
Dimensions
164
Engine lubrication
Valve opening pressures
Bypass valve for oil filter 2,2−2,8 bar
Overpressure valve on the oil pump 9−10 bar
Pressure valve of the oil injection nozzles
Opening pressure 1,66−1,9 bar
Pressure at max. opening 1,3−1,6 bar

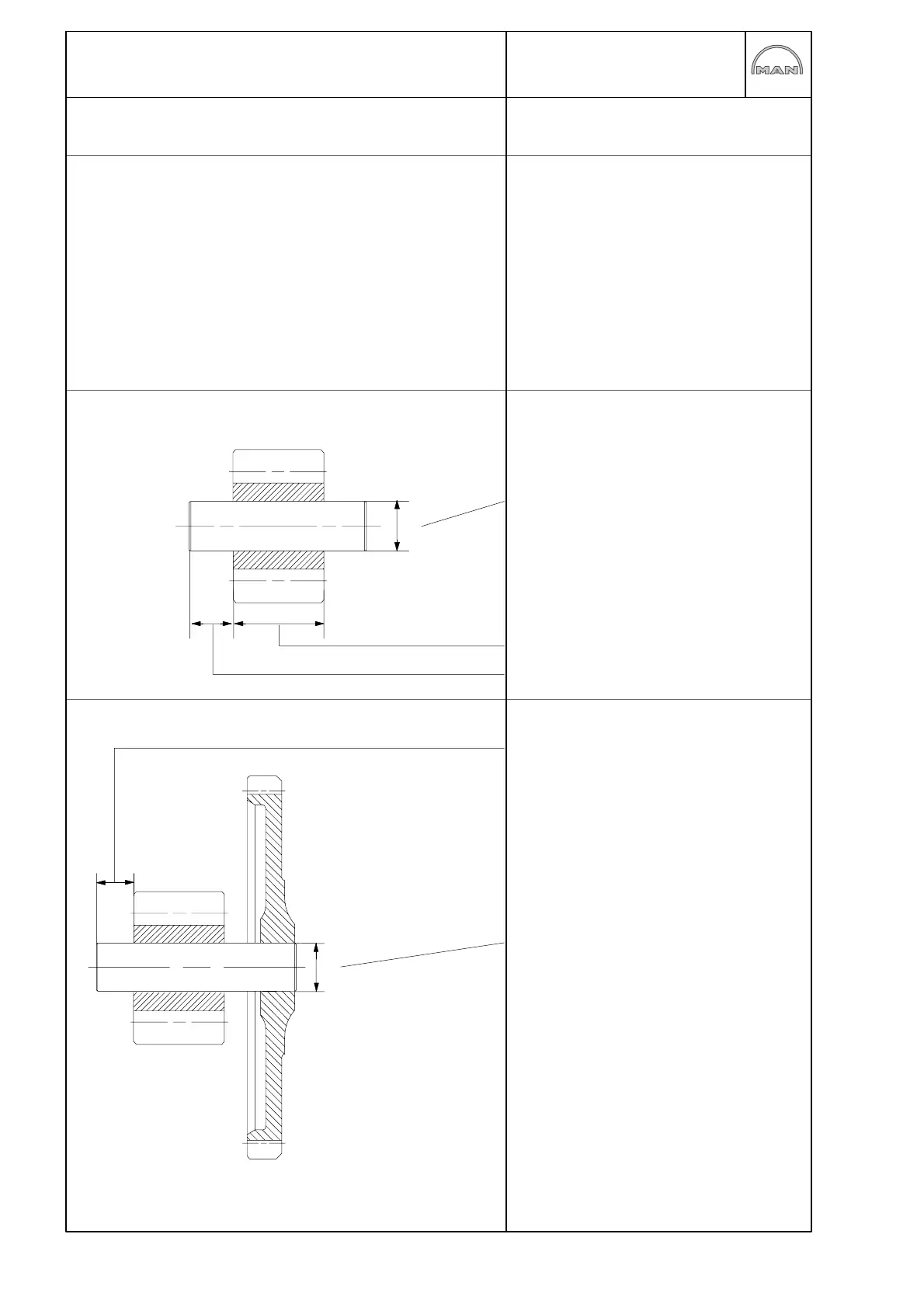

Oil pump
3−gear oil pump
Oil pump wheel
Gear width: 34 mm
Shaft: 21,930−21,940 mm
Bore Ø in housing: 22,000−22,021 mm
Radial clearance 0,060−0,091 mm
Press on force: 12200 N
Housing depth: 34,000−34,039 mm
Axial clearance: 0,050−0,128 mm
33,911−33,950 mm
14,5−14,7 mm
Drive wheel with oil pump wheel
14,5−14,7 mm
Shaft: 21,930−21,940 mm
Bore in drive gear: 21,870−21,885
mm
Press on force: 12000 N
Backlash:
Drive wheel and crankshaft wheel:
0,099−0,451 mm
