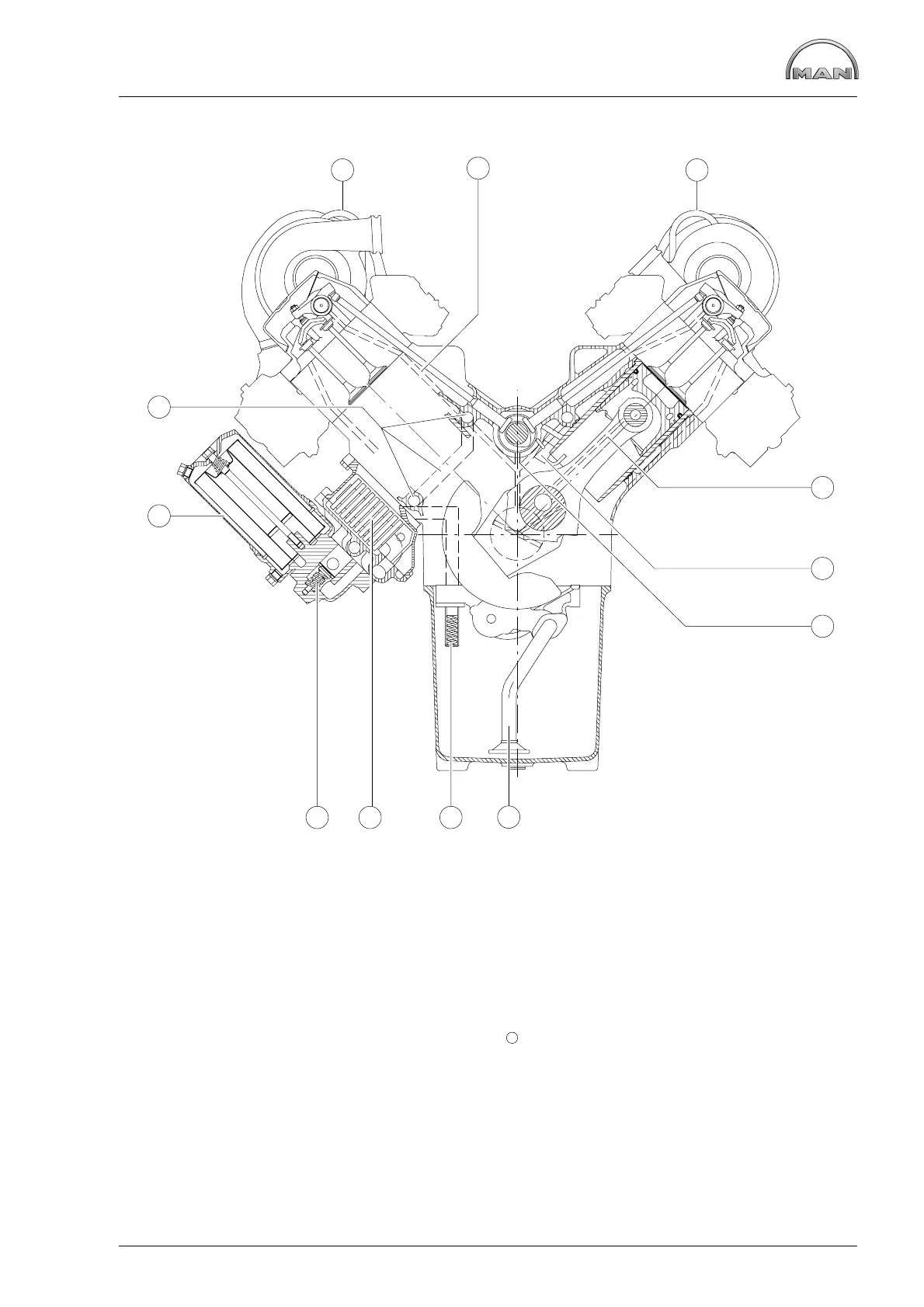

Engine lubrication schedule
21
1 1
2
3
4
5
6
789
10
11
À Lubricating oil lines to exhaust turbochargers
Á Rocker arm lubrication
 Piston pin lubrication
à Spray nozzles for piston cooling and
cam lubrication
Ä Camshaft bearing lubrication
Å Oil intake pipe
Æ Oil pressure relief valves
Ç Oil cooler
È Bypass valve
É Oil filter
11
Main oil galleries
