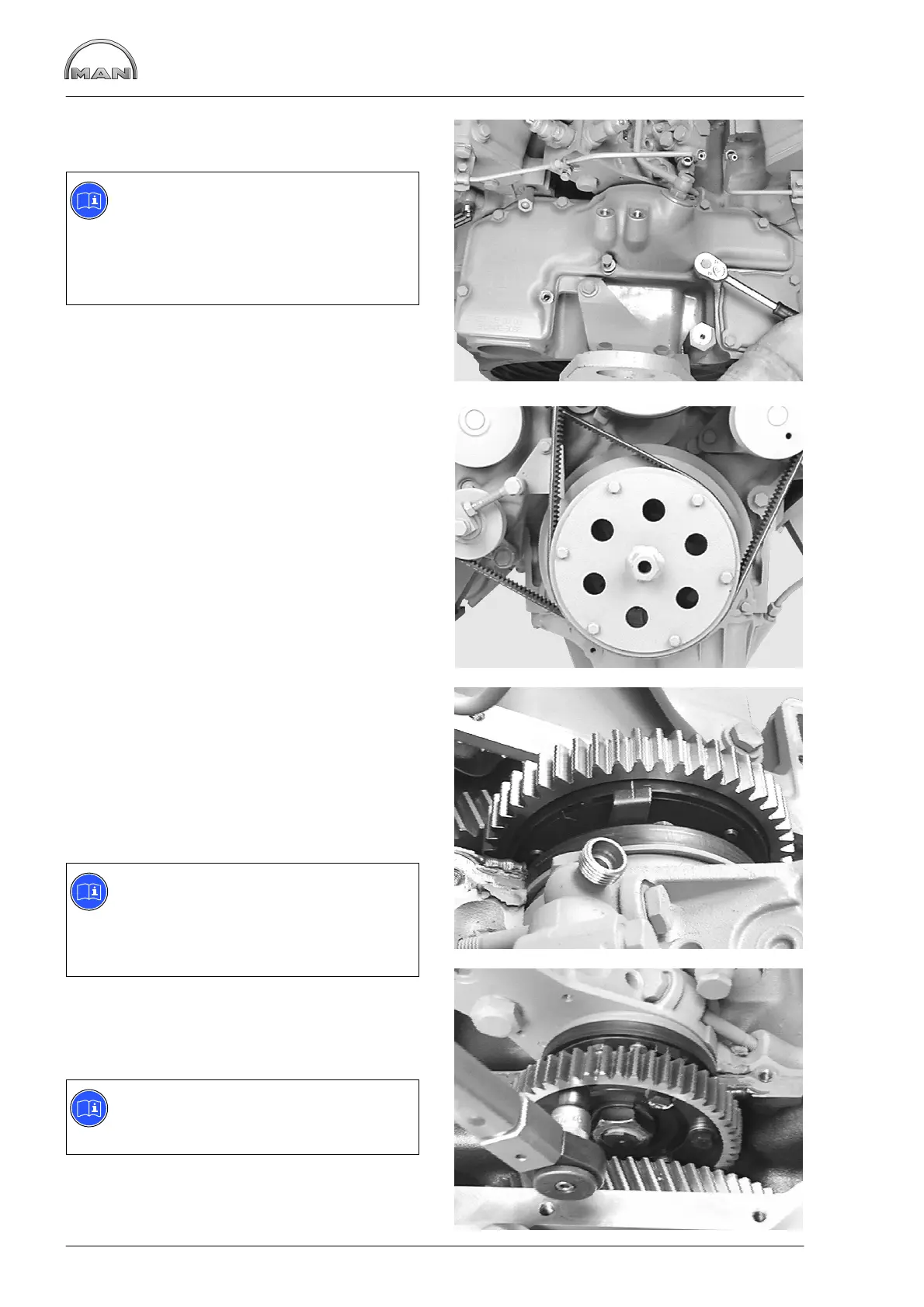

Checking and adjusting start of fuel delivery
26
Fig. 9
Remove timing case cover.
Note:
Pipes are attached to the timing case
cover.
To facilitate reassembly, note down the
positions of the brackets, pipe clamps,
spacer sleeves etc.
Fig. 10
Turn engine to specified angle for delivery start.
Fig. 11
Loosen all bolts fastening the drive gear to the in-
jection pump hub. For this, two complete turns of
the engine are necessary.
Turn the injection pump camshaft at the drive
flange either to the left or right until the markings
are aligned with each other.
Note:
If the setting specified cannot be reached
by turning the injection pump hub, the
installation of the injection pump is to be
checked.
Fig. 12
Tighten bolts for fastening drive gear to drive
flange consecutively to 5 Nm and then to 38 Nm.
Note:
Use only M8x22 mounting bolts
(property class 12.9).
Check delivery start once again.
Refit all parts previously removed.
