Removing and installing injection pump
30

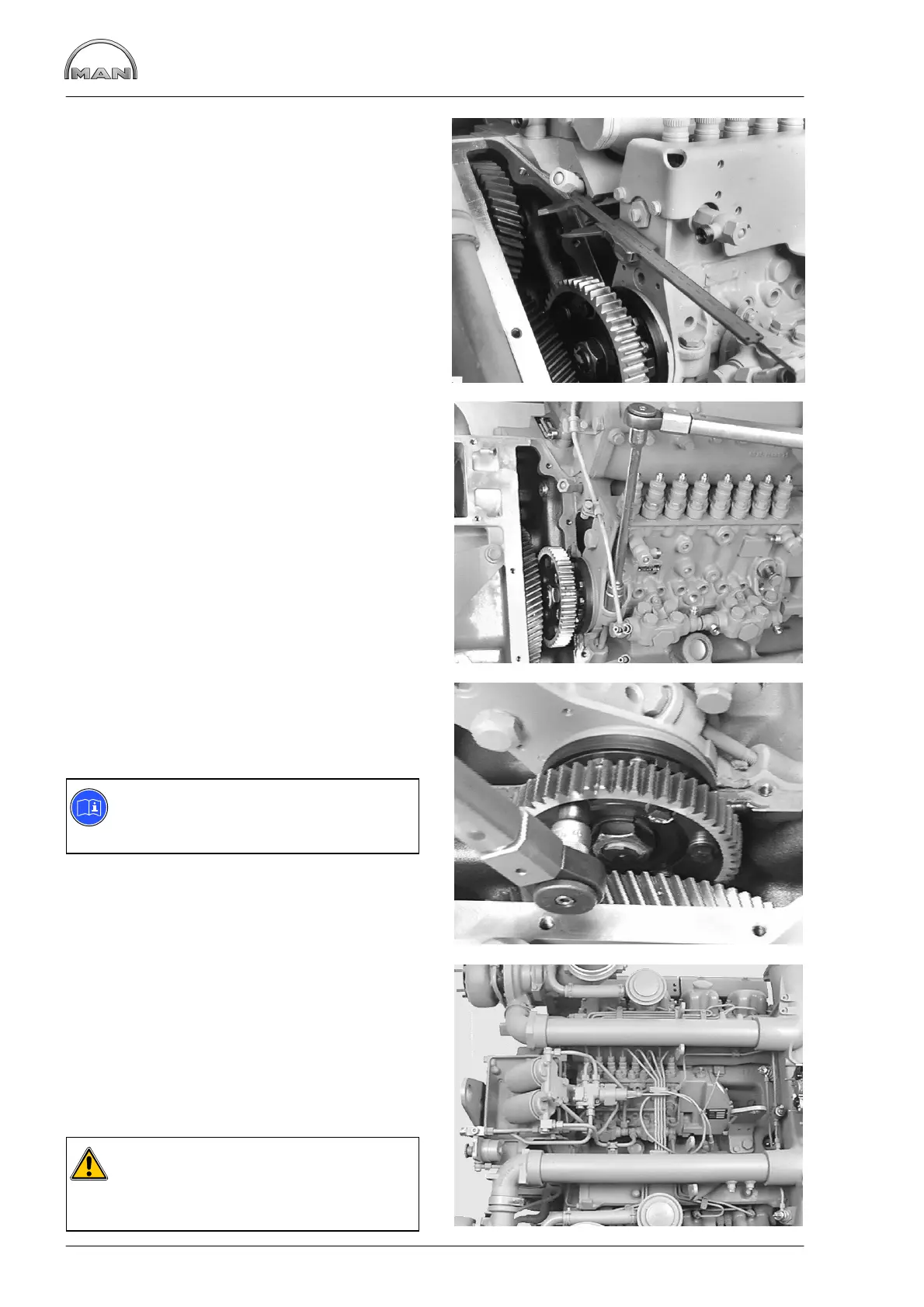

Fig. 13
Fit injection pump in such a way that the mounting
bolts can be screwed in by hand.
Check distance between injection pump and
crankcase.
Fig. 14
Tighten mounting bolts to specified torque (see
“Service Data”).
Fig. 15
Apply an initial torque of 5 Nm to all mounting bolts
on the gear through the inspection hole. Two com-
plete engine turns are necessary for this operation.
Note:
Use only M8x22 mounting bolts
(property class 12.9).
Now tighten all mounting bolts to 38 Nm.
Fig. 16
Check delivery start, if necessary readjusting it
(see page 24).
Refit in reverse sequence to the removal
procedure all parts previously removed.
Observe specified tightening torques indicated
in the publication “Service Data”.
Caution:
Comply with instructions for masking
unions on pressurised oil and fuel pipes
(see page 3).
