8
9
10
11
Removing and installing pipe cluster for heat exchanger
56

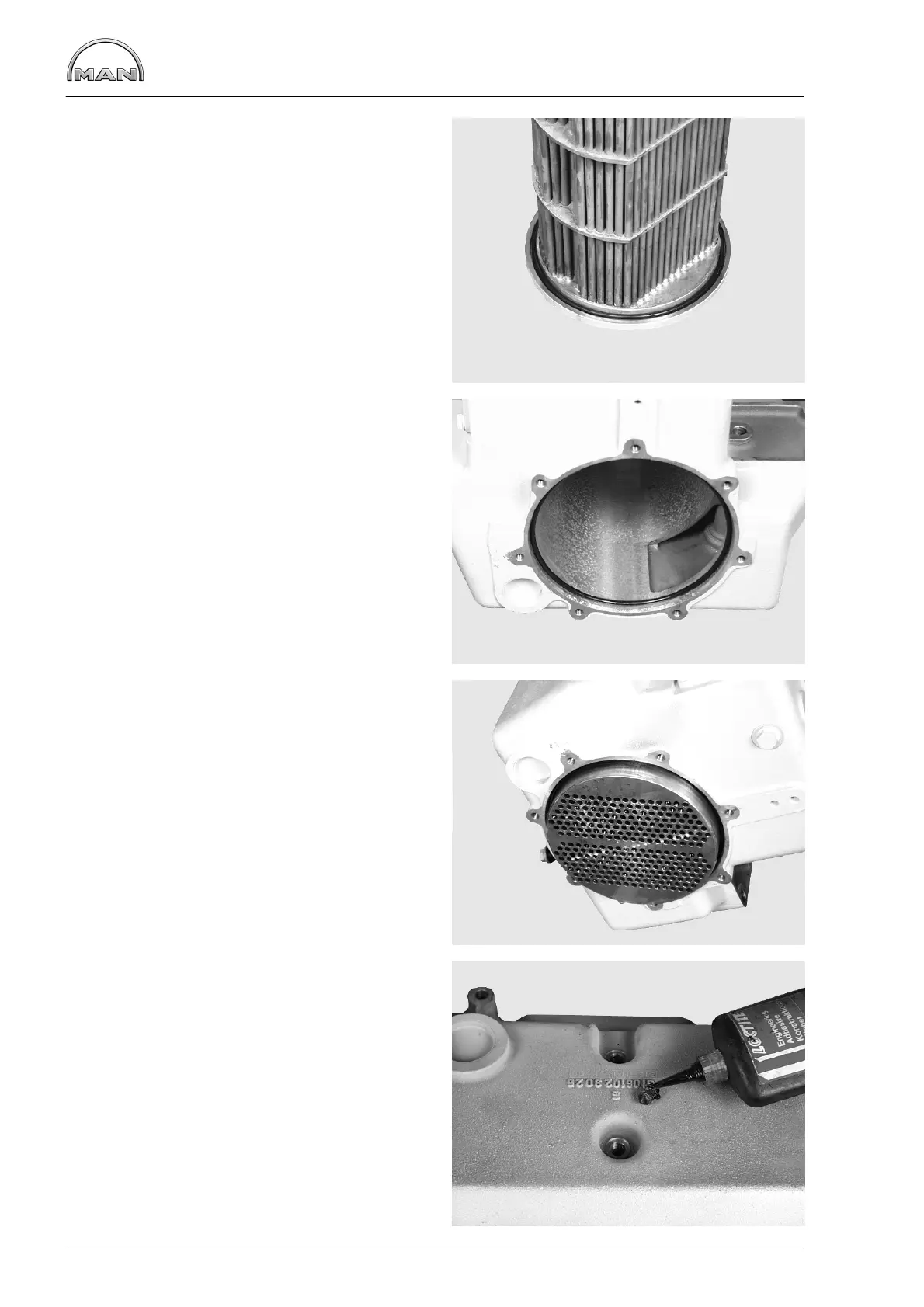

Installing pipe cluster for heat ex-
changer
Figs. 8 and 9
The pipe cluster is installed in reverse order.
When installing the pipe cluster, use new O-rings
(total of 4 rings).
Fig. 10
Push pipe cluster into heat exchanger housing.
Fig. 11
Screw in stud bolts with “Loctite 242”.
Fit screw plugs with new sealing rings.
D Install heat exchanger, see page 52
