Removing and installing, repairing 2-gear-oil pump
66

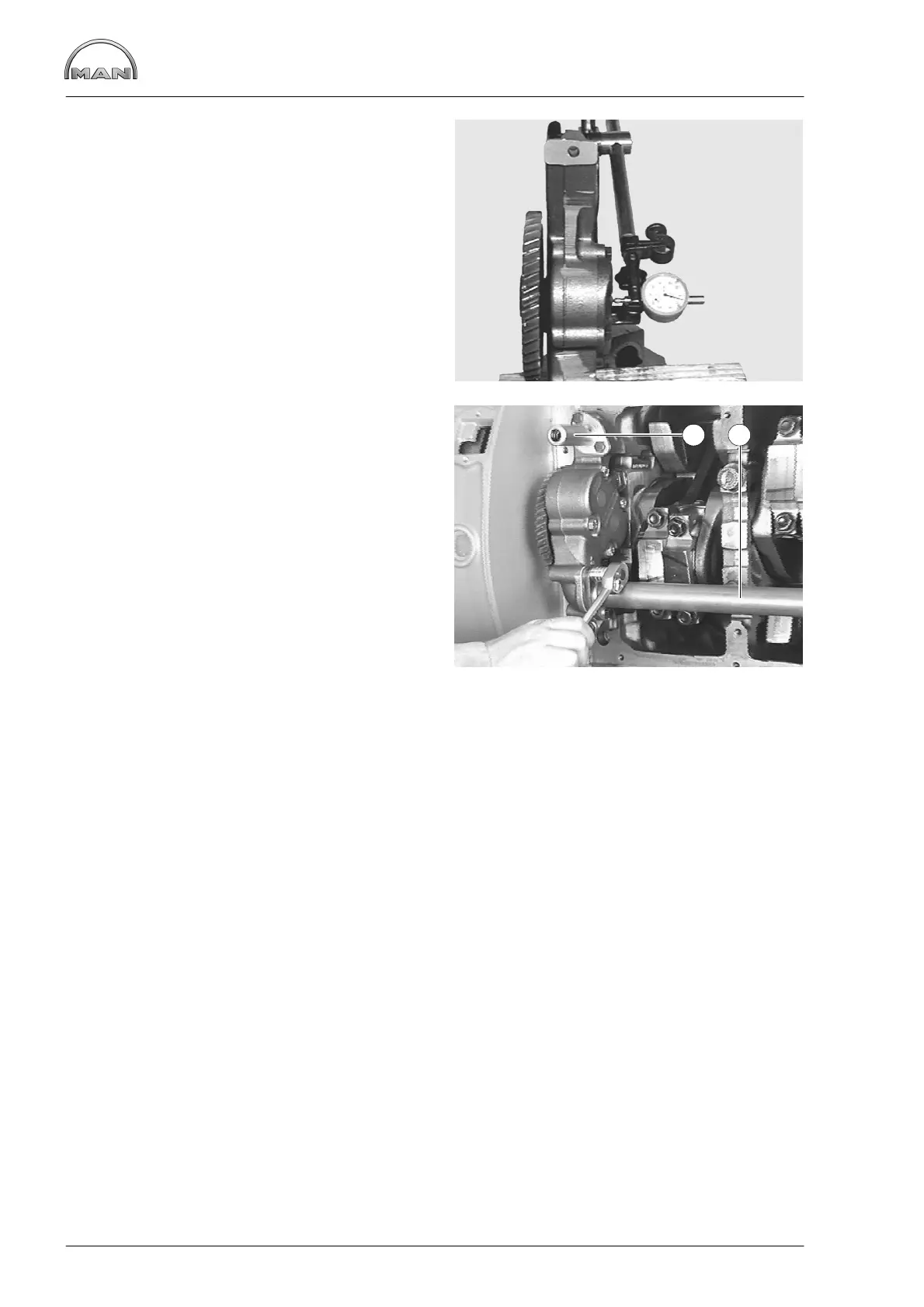

Checking the axial clearance of the
pump wheels
Fig. 9
Position dial gauge and push shaft up to the stop
in one direction and set dial gauge to “0”.
Push the shaft in the opposite direction and read
off the needle deflection on the dial gauge.
Installing oil pump
Fig. 10
Tighten the securing bolts with the prescribed tor-
que.
D Before installing, check whether the oil pump
run smoothly and then fit it / them free of ten-
sion
D Fit oil suction line À with seal in a tension−free
manner
D Screw on pressure−relief valve Á without seal
Before fitting the oil pan, run the engine to check
that the crankshaft drive and oil pumps are running
smoothly and easily.
22 1
