Removing and fitting vibration damper,
Replacing front crankshaft gasket
74
Changing front crankshaft seal

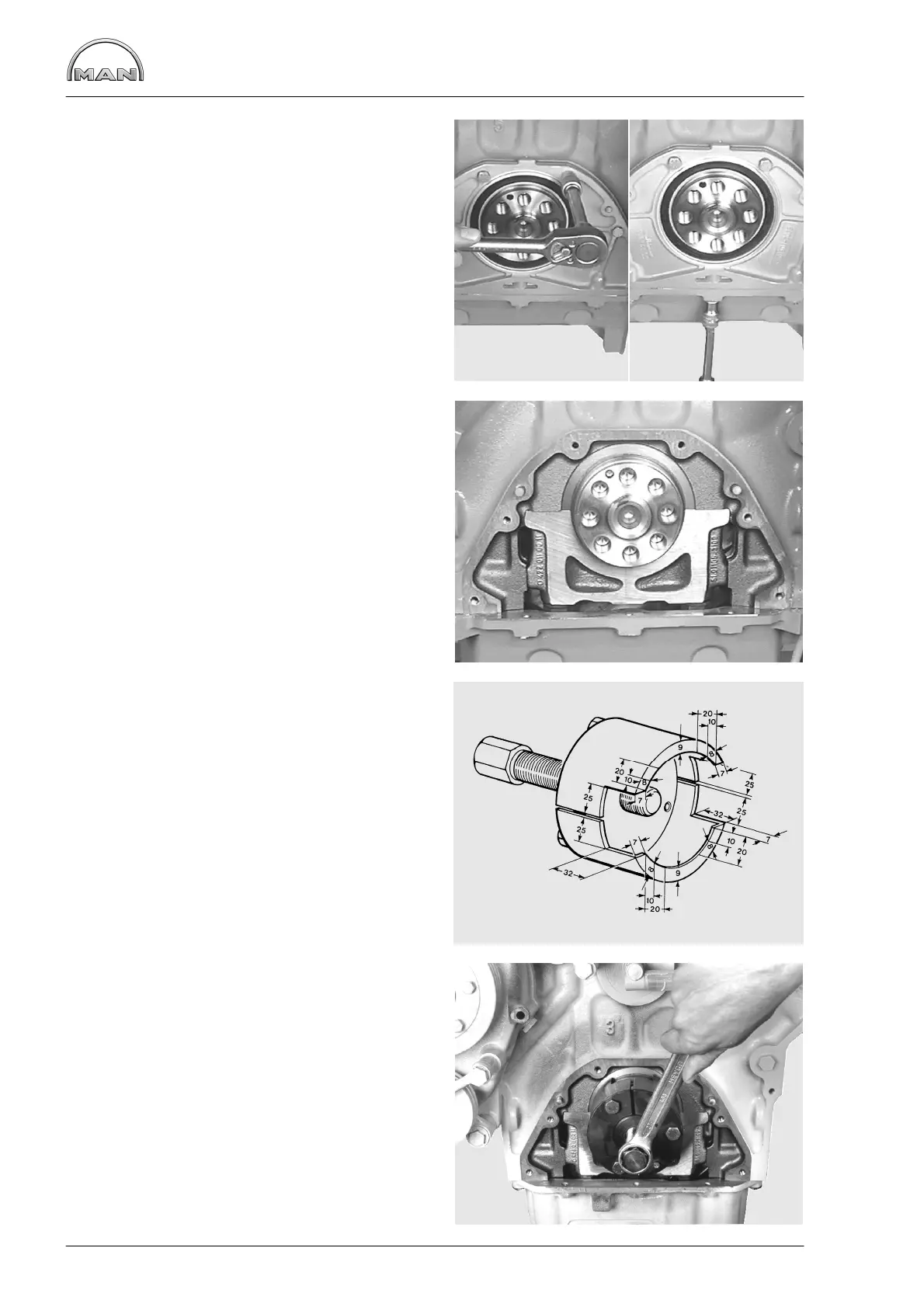

Fig. 5
Loosen the mounting bolts of the cover.
Fig. 6
Remove the cover.
Only replace the front crankshaft gasket as a com-
plete unit, i.e. replace the bearing race and the
radial shaft sealing ring.
Replacing the bearing race
Fig. 7
A stripping device (special tool) is required to re-
move the bearing race.
Fig. 8
Pull off the bearing race.
