13
14
15
16

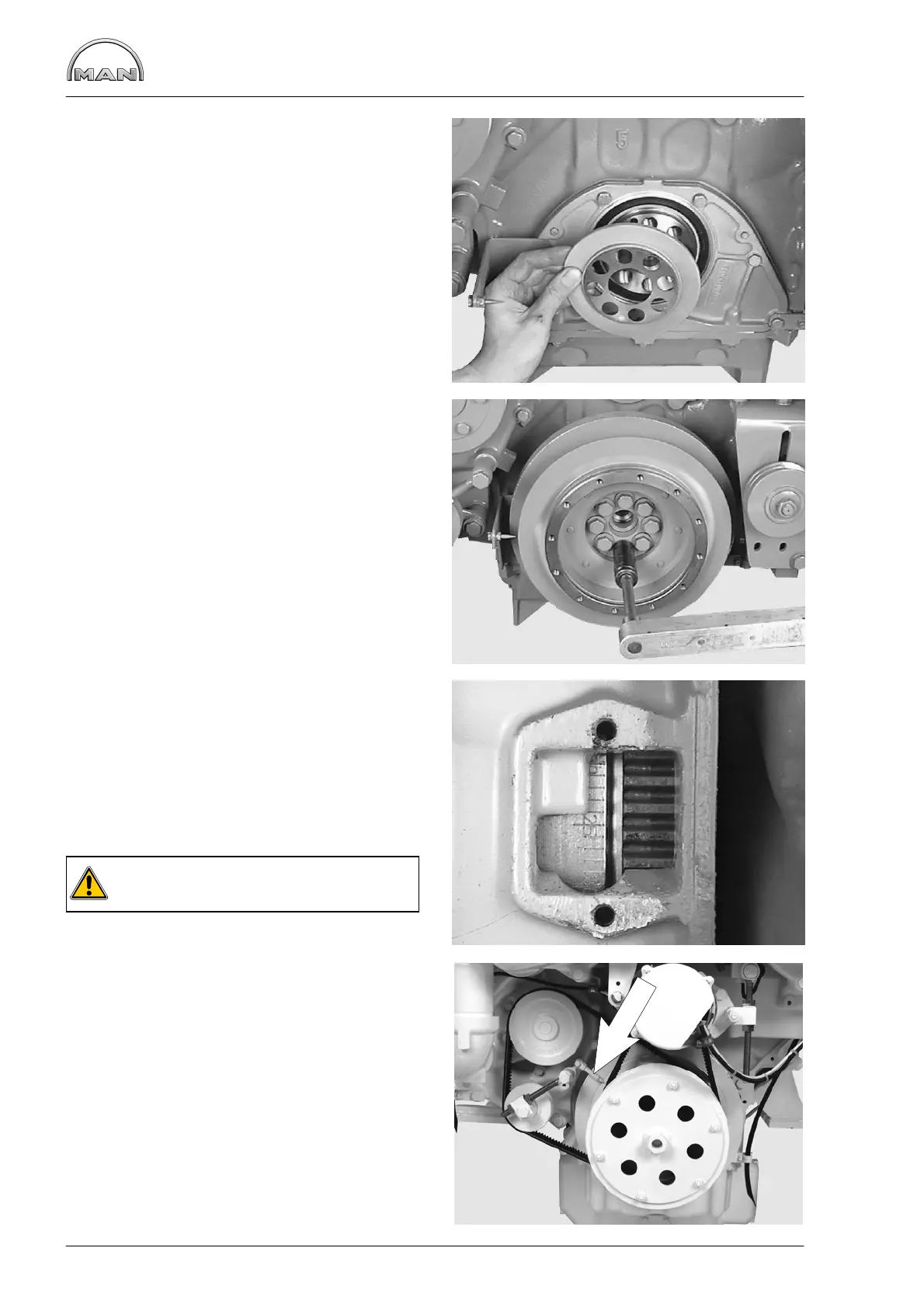

Removing and fitting vibration damper,
Replacing front crankshaft gasket
76
Fitting the vibration damper
Fig. 13
Fit the hub and oil splash ring on the crankshaft.
Fig. 14
Place vibration damper on two guide pins
(M16x1.5).
Ensure that the position of the graduated disc rela-
tive to the crankshaft is correct!
Tighten the mounting bolts.
Tightening torque: 260 Nm
Fit cranking device.
Fit and tension V-belts, see page 138.
Figs. 15 and 16
Fit and adjust the start-of-delivery indicator.
This is why you should check whether the scale of
degrees on the inspection hole cover of the fly-
wheel housing (picture 15) and on the vibration
damper (picture 16) indicate the same values.
If necessary readjust delivery start indicator.
Caution:
Unblock the crank gear!
