Removing and installing cylinder head
96

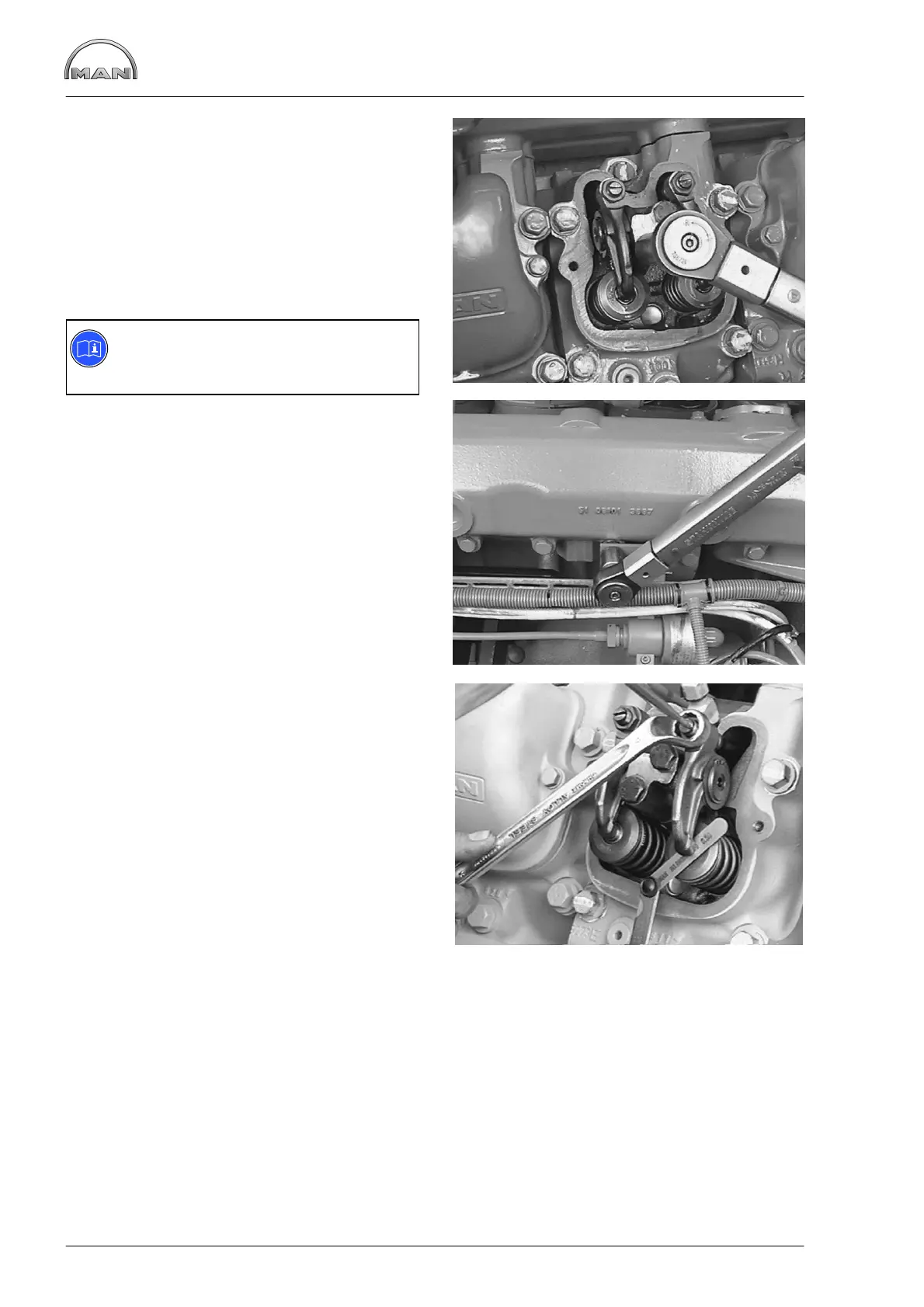

Fig. 12
Check push rods for distortion. When inserting the
push rods ensure that they fit into the seat of the
valve tappet.
Put rocker arms and push rods in place. Screw in
the mounting bolts without washers and tighten
them slightly.
Align rocker arms to valves. Tighten the mounting
bolts to the specified torque.
Note:
Use only M10x70 mounting bolts (property
class 10.9).
Fig. 13
Fit new seals between the cylinder head and the
intake and exhaust pipes.
Tighten the mounting bolts on the intake and
exhaust pipes to the specified torque.
Fig. 14
Set valve clearance. Fit injection nozzle.
Mount cylinder head cover with new seal.
Fill up with coolant.
