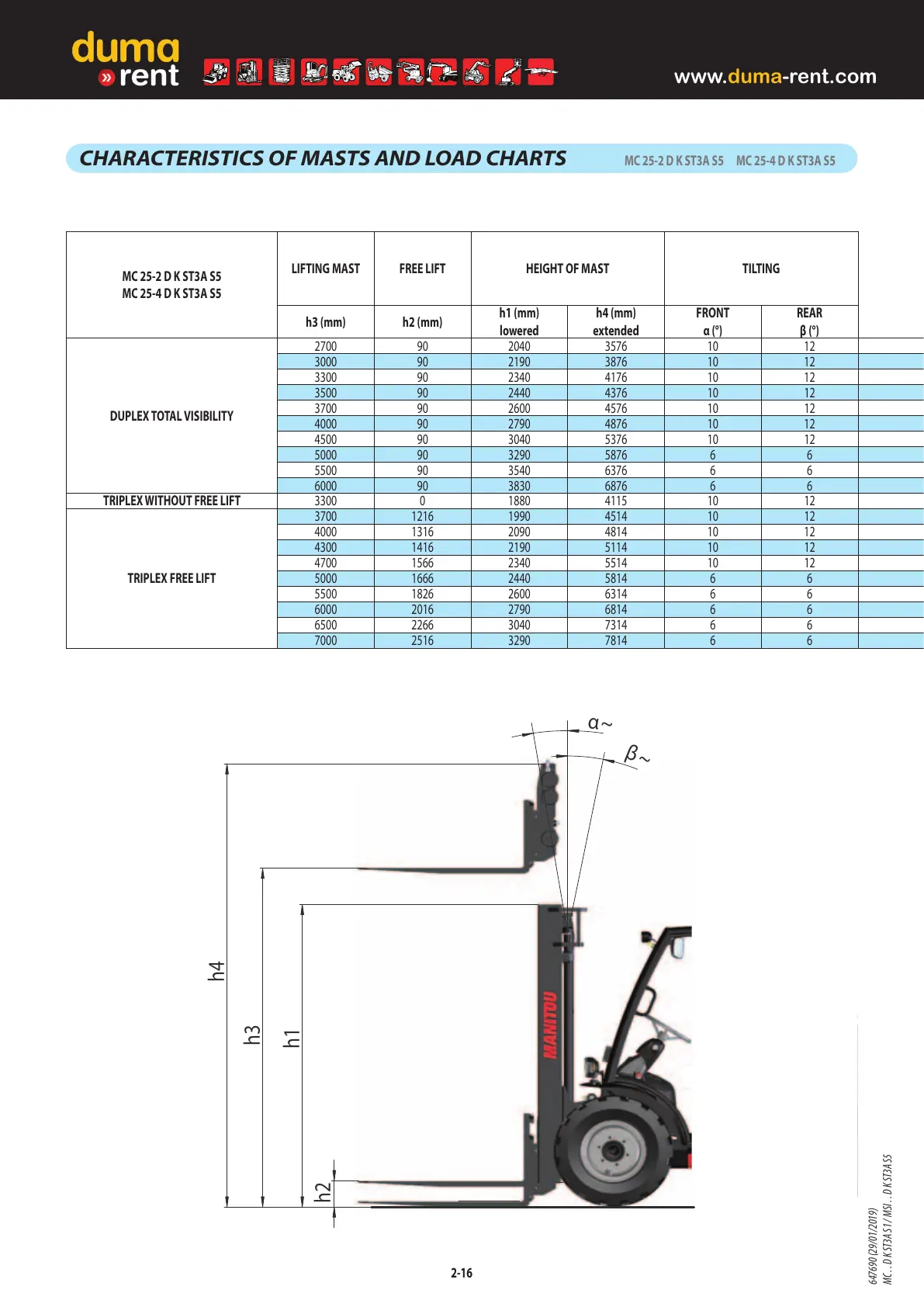

CHARACTERISTICS OF MASTS AND LOAD CHARTS MC 25-2 D K ST3A S5 MC 25-4 D K ST3A S5
MC 25-2 D K ST3A S5
MC 25-4 D K ST3A S5
LIFTING MAST FREE LIFT HEIGHT OF MAST TILTING
h3 (mm) h2 (mm)
h1 (mm)
lowered
h4 (mm)
extended
FRONT
α (°)
REAR
β (°)
DUPLEX TOTAL VISIBILITY
2700 90 2040 3576 10 12
3000 90 2190 3876 10 12
3300 90 2340 4176 10 12
3500 90 2440 4376 10 12
3700 90 2600 4576 10 12
4000 90 2790 4876 10 12
4500 90 3040 5376 10 12
5000 90 3290 5876 6 6
5500 90 3540 6376 6 6
6000 90 3830 6876 6 6
TRIPLEX WITHOUT FREE LIFT 3300 0 1880 4115 10 12
TRIPLEX FREE LIFT
3700 1216 1990 4514 10 12
4000 1316 2090 4814 10 12
4300 1416 2190 5114 10 12
4700 1566 2340 5514 10 12
5000 1666 2440 5814 6 6
5500 1826 2600 6314 6 6
6000 2016 2790 6814 6 6
6500 2266 3040 7314 6 6
7000 2516 3290 7814 6 6
2-16
α~
β
~
h1
h2
h3
h4
647690 (29/01/2019)
M
C . . D K ST3A S1 / MSI . . D K ST3A S5
