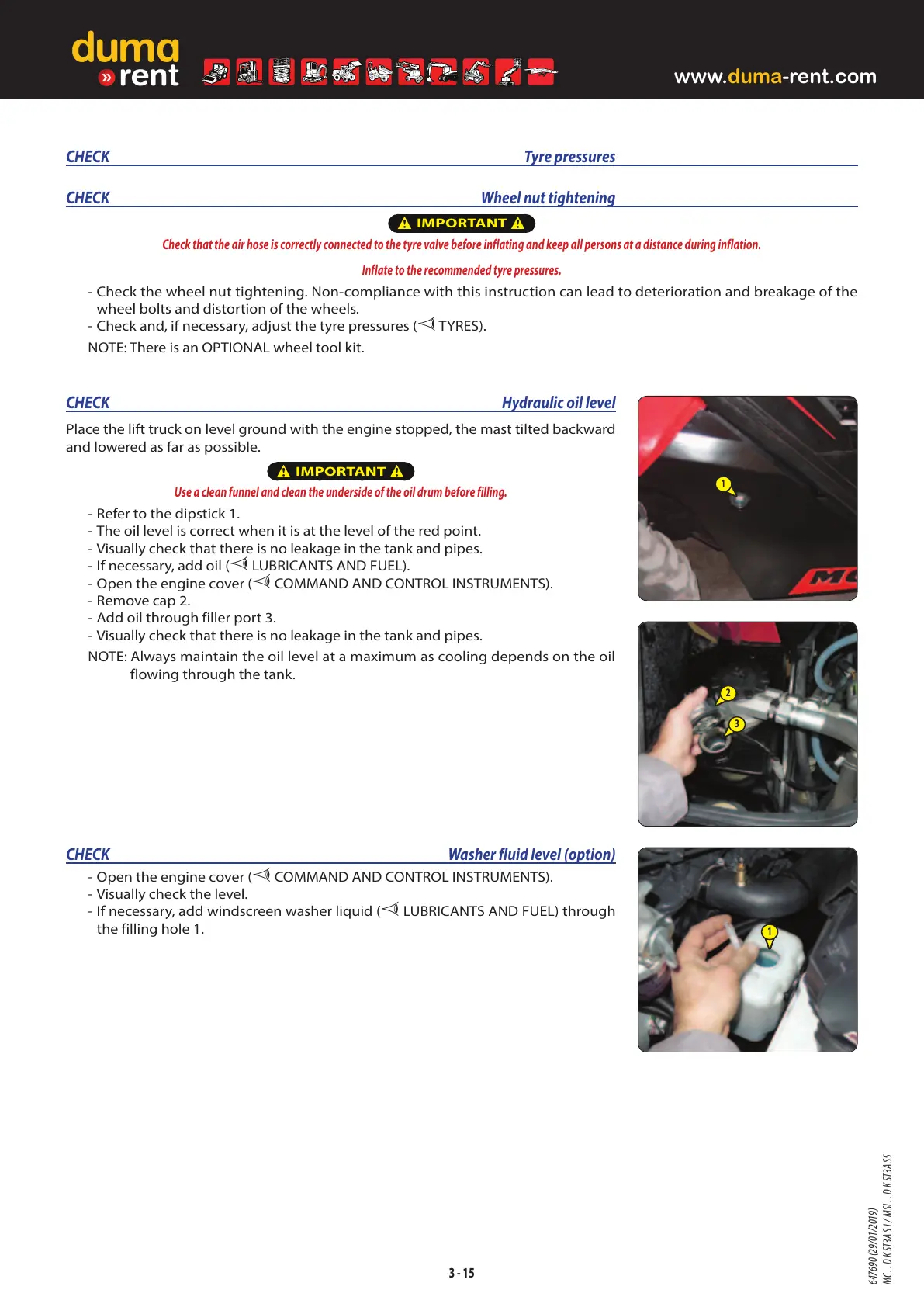

CHECK Tyre pressures
CHECK Wheel nut tightening
IMPORTANT
Check that the air hose is correctly connected to the tyre valve before inflating and keep all persons at a distance during inflation.
Inflate to the recommended tyre pressures.
- Check the wheel nut tightening. Non-compliance with this instruction can lead to deterioration and breakage of the
wheel bolts and distortion of the wheels.
- Check and, if necessary, adjust the tyre pressures ( TYRES).
NOTE: There is an OPTIONAL wheel tool kit.
CHECK Hydraulic oil level
Place the lift truck on level ground with the engine stopped, the mast tilted backward
and lowered as far as possible.
IMPORTANT
Use a clean funnel and clean the underside of the oil drum before filling.
- Refer to the dipstick 1.
- The oil level is correct when it is at the level of the red point.
- Visually check that there is no leakage in the tank and pipes.
- If necessary, add oil ( LUBRICANTS AND FUEL).
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
- Remove cap 2.
- Add oil through filler port 3.
- Visually check that there is no leakage in the tank and pipes.
NOTE: Always maintain the oil level at a maximum as cooling depends on the oil
flowing through the tank.
CHECK Washer fluid level (option)
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
- Visually check the level.
- If necessary, add windscreen washer liquid ( LUBRICANTS AND FUEL) through
the filling hole 1.
3 - 15
2
3
1
1
647690 (29/01/2019)
