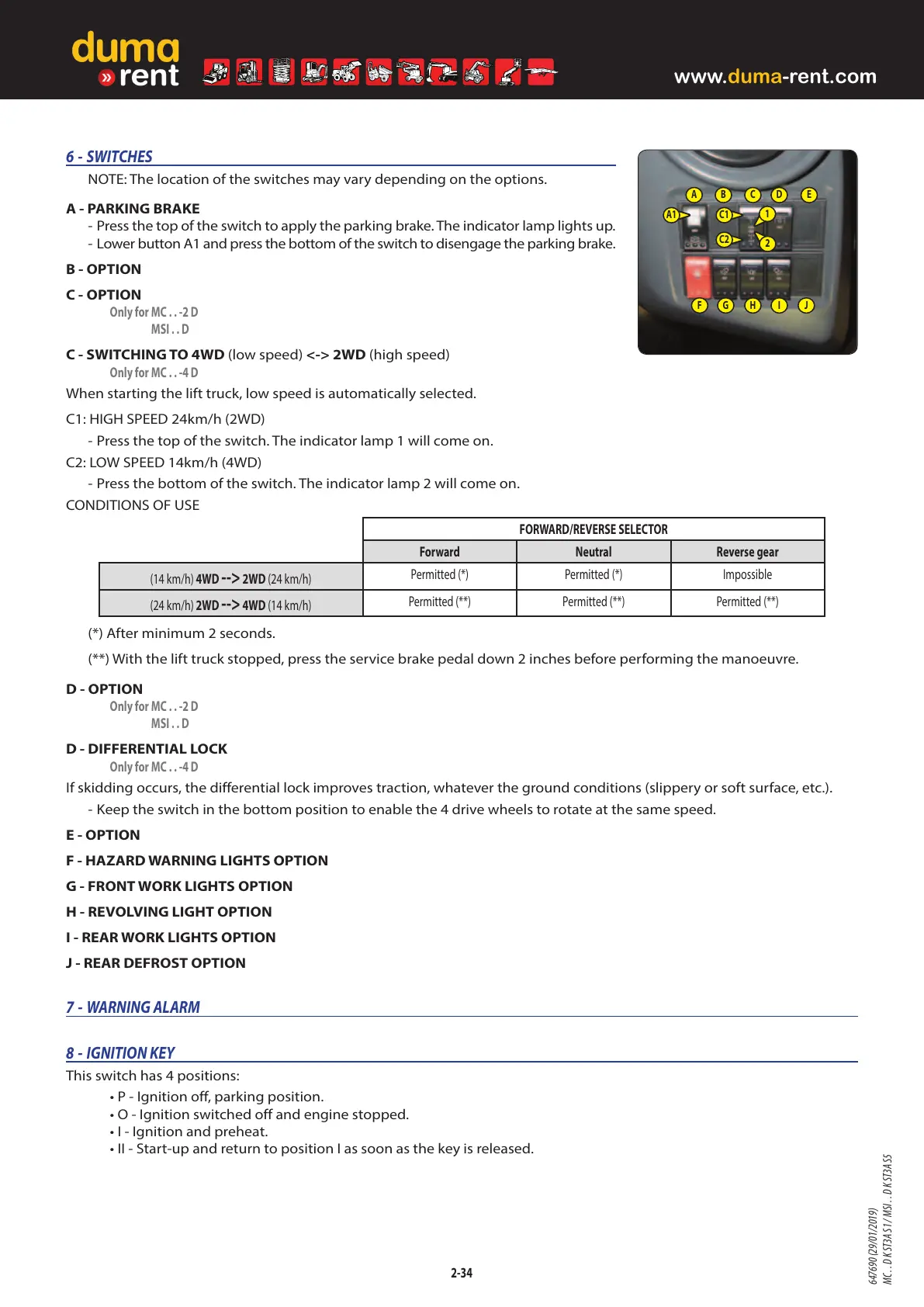

6 - SWITCHES
NOTE: The location of the switches may vary depending on the options.
A - PARKING BRAKE
- Press the top of the switch to apply the parking brake. The indicator lamp lights up.
- Lower button A1 and press the bottom of the switch to disengage the parking brake.
B - OPTION
C - OPTION
Only for MC . . -2 D
MSI . . D
C - SWITCHING TO 4WD (low speed) <-> 2WD (high speed)
Only for MC . . -4 D
When starting the lift truck, low speed is automatically selected.
C1: HIGH SPEED 24km/h (2WD)
- Press the top of the switch. The indicator lamp 1 will come on.
C2: LOW SPEED 14km/h (4WD)
- Press the bottom of the switch. The indicator lamp 2 will come on.
CONDITIONS OF USE
FORWARD/REVERSE SELECTOR
Forward Neutral Reverse gear
(14 km/h) 4WD --> 2WD (24 km/h)
Permitted (*) Permitted (*) Impossible
(24 km/h) 2WD --> 4WD (14 km/h)
Permitted (**) Permitted (**) Permitted (**)
(*) After minimum 2 seconds.
(**) With the lift truck stopped, press the service brake pedal down 2 inches before performing the manoeuvre.
D - OPTION
Only for MC . . -2 D
MSI . . D
D - DIFFERENTIAL LOCK
Only for MC . . -4 D
If skidding occurs, the differential lock improves traction, whatever the ground conditions (slippery or soft surface, etc.).
- Keep the switch in the bottom position to enable the 4 drive wheels to rotate at the same speed.
E - OPTION
F - HAZARD WARNING LIGHTS OPTION
G - FRONT WORK LIGHTS OPTION
H - REVOLVING LIGHT OPTION
I - REAR WORK LIGHTS OPTION
J - REAR DEFROST OPTION
7 - WARNING ALARM
8 - IGNITION KEY
This switch has 4 positions:
• P - Ignition off, parking position.
• O - Ignition switched off and engine stopped.
• I - Ignition and preheat.
• II - Start-up and return to position I as soon as the key is released.
2-34
A
GF
B
H
C
I
D
J
E
A1 C1
C2
1
2
647690 (29/01/2019)
