Manitou MC 25-2 D K ST3A S1 - 12 V Socket; Document Clip; Document Storage Net; Motor Cover Panel

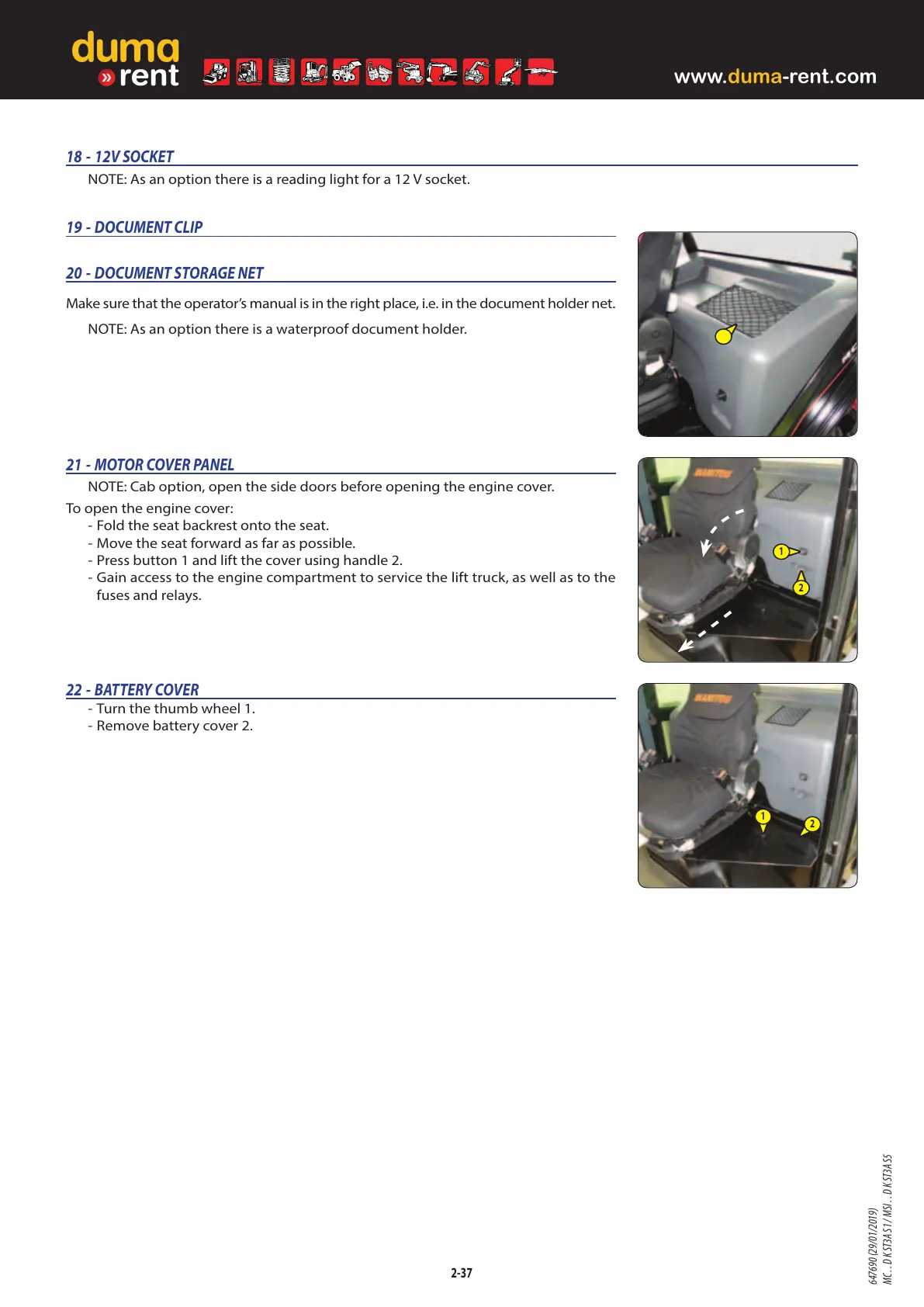

21 - MOTOR COVER PANEL
NOTE: Cab option, open the side doors before opening the engine cover.
To open the engine cover:
- Fold the seat backrest onto the seat.
- Move the seat forward as far as possible.
- Press button 1 and lift the cover using handle 2.
- Gain access to the engine compartment to service the lift truck, as well as to the
fuses and relays.
22 - BATTERY COVER
- Turn the thumb wheel 1.
- Remove battery cover 2.
18 - 12V SOCKET
NOTE: As an option there is a reading light for a 12 V socket.
19 - DOCUMENT CLIP
20 - DOCUMENT STORAGE NET
Make sure that the operator’s manual is in the right place, i.e. in the document holder net.
NOTE: As an option there is a waterproof document holder.
