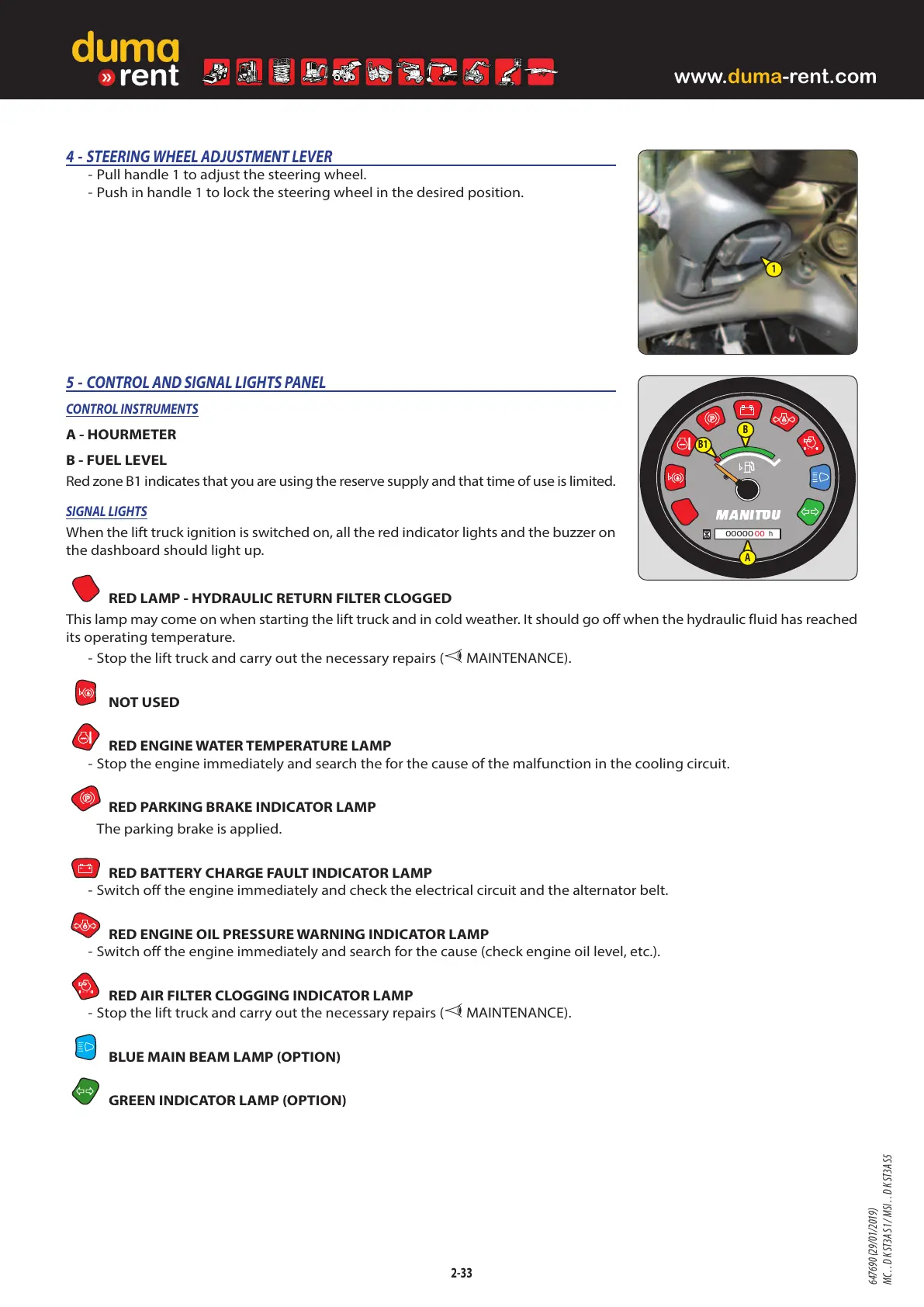

5 - CONTROL AND SIGNAL LIGHTS PANEL
CONTROL INSTRUMENTS
A - HOURMETER
B - FUEL LEVEL
Red zone B1 indicates that you are using the reserve supply and that time of use is limited.
SIGNAL LIGHTS
When the lift truck ignition is switched on, all the red indicator lights and the buzzer on
the dashboard should light up.
RED LAMP - HYDRAULIC RETURN FILTER CLOGGED
This lamp may come on when starting the lift truck and in cold weather. It should go off when the hydraulic fluid has reached
its operating temperature.
- Stop the lift truck and carry out the necessary repairs (
MAINTENANCE).
NOT USED
RED ENGINE WATER TEMPERATURE LAMP
- Stop the engine immediately and search the for the cause of the malfunction in the cooling circuit.
RED PARKING BRAKE INDICATOR LAMP
The parking brake is applied.
RED BATTERY CHARGE FAULT INDICATOR LAMP
- Switch off the engine immediately and check the electrical circuit and the alternator belt.
RED ENGINE OIL PRESSURE WARNING INDICATOR LAMP
- Switch off the engine immediately and search for the cause (check engine oil level, etc.).
RED AIR FILTER CLOGGING INDICATOR LAMP
- Stop the lift truck and carry out the necessary repairs ( MAINTENANCE).
BLUE MAIN BEAM LAMP (OPTION)
GREEN INDICATOR LAMP (OPTION)
4 - STEERING WHEEL ADJUSTMENT LEVER
- Pull handle 1 to adjust the steering wheel.
- Push in handle 1 to lock the steering wheel in the desired position.
2-33
