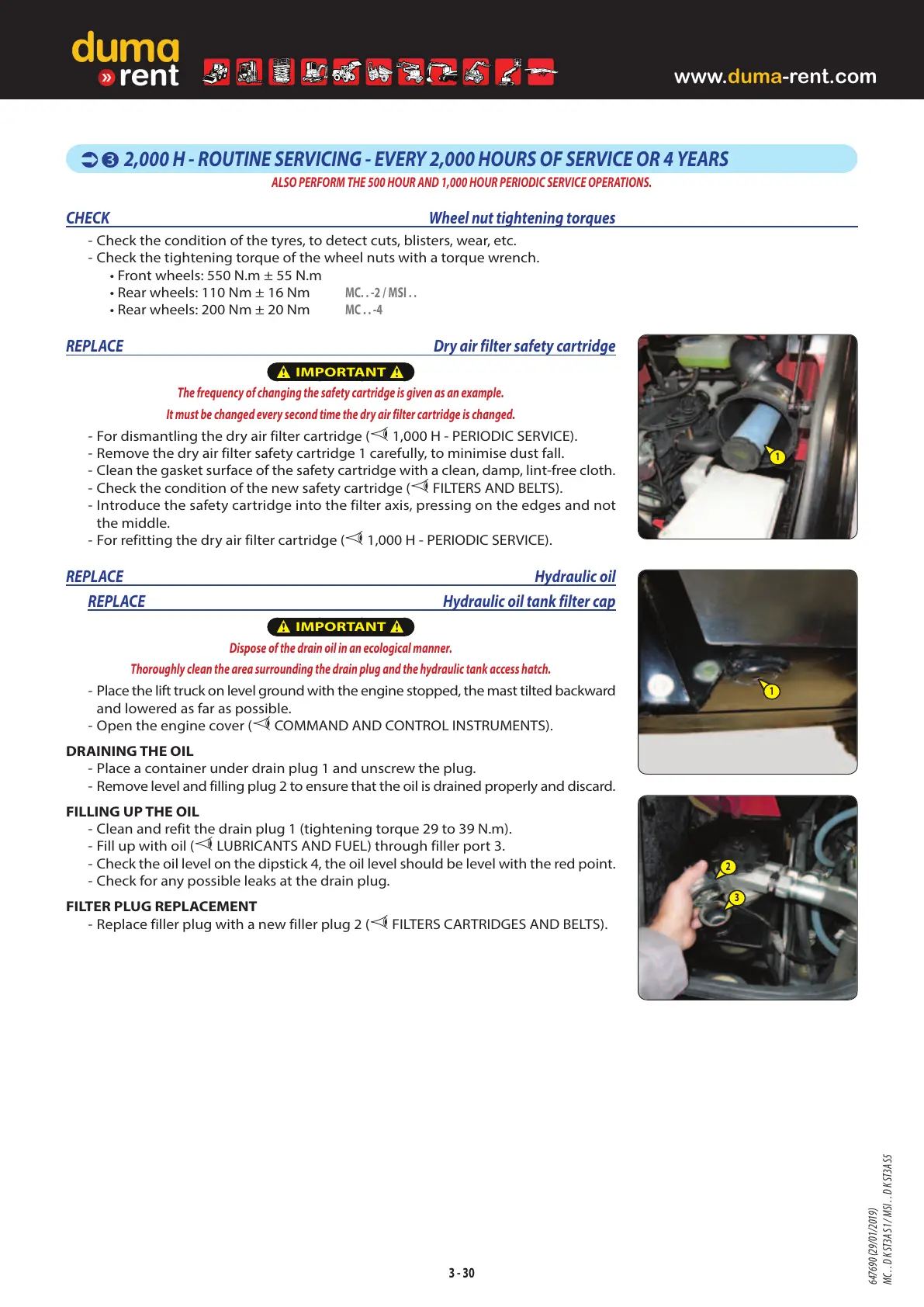

2,000 H - ROUTINE SERVICING - EVERY 2,000 HOURS OF SERVICE OR 4 YEARS
ALSO PERFORM THE 500 HOUR AND 1,000 HOUR PERIODIC SERVICE OPERATIONS.
CHECK Wheel nut tightening torques
- Check the condition of the tyres, to detect cuts, blisters, wear, etc.
- Check the tightening torque of the wheel nuts with a torque wrench.
• Front wheels: 550 N.m ± 55 N.m
• Rear wheels: 110 Nm ± 16 Nm
MC. . -2 / MSI . .
• Rear wheels: 200 Nm ± 20 Nm
MC . . -4
REPLACE Dry air filter safety cartridge
IMPORTANT
The frequency of changing the safety cartridge is given as an example.
It must be changed every second time the dry air filter cartridge is changed.
- For dismantling the dry air filter cartridge (1,000H - PERIODIC SERVICE).
- Remove the dry air filter safety cartridge 1 carefully, to minimise dust fall.
- Clean the gasket surface of the safety cartridge with a clean, damp, lint-free cloth.
- Check the condition of the new safety cartridge ( FILTERS AND BELTS).
- Introduce the safety cartridge into the filter axis, pressing on the edges and not
the middle.
- For refitting the dry air filter cartridge (1,000H - PERIODIC SERVICE).
REPLACE Hydraulic oil
REPLACE Hydraulic oil tank filter cap
IMPORTANT
Dispose of the drain oil in an ecological manner.
Thoroughly clean the area surrounding the drain plug and the hydraulic tank access hatch.
- Place the lift truck on level ground with the engine stopped, the mast tilted backward
and lowered as far as possible.
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
DRAINING THE OIL
- Place a container under drain plug 1 and unscrew the plug.
- Remove level and filling plug 2 to ensure that the oil is drained properly and discard.
FILLING UP THE OIL
- Clean and refit the drain plug 1 (tightening torque 29 to 39 N.m).
- Fill up with oil (
LUBRICANTS AND FUEL) through filler port 3.
- Check the oil level on the dipstick 4, the oil level should be level with the red point.
- Check for any possible leaks at the drain plug.
FILTER PLUG REPLACEMENT
- Replace filler plug with a new filler plug 2 (
FILTERS CARTRIDGES AND BELTS).
1
1
2
3
3 - 30
647690 (29/01/2019)
