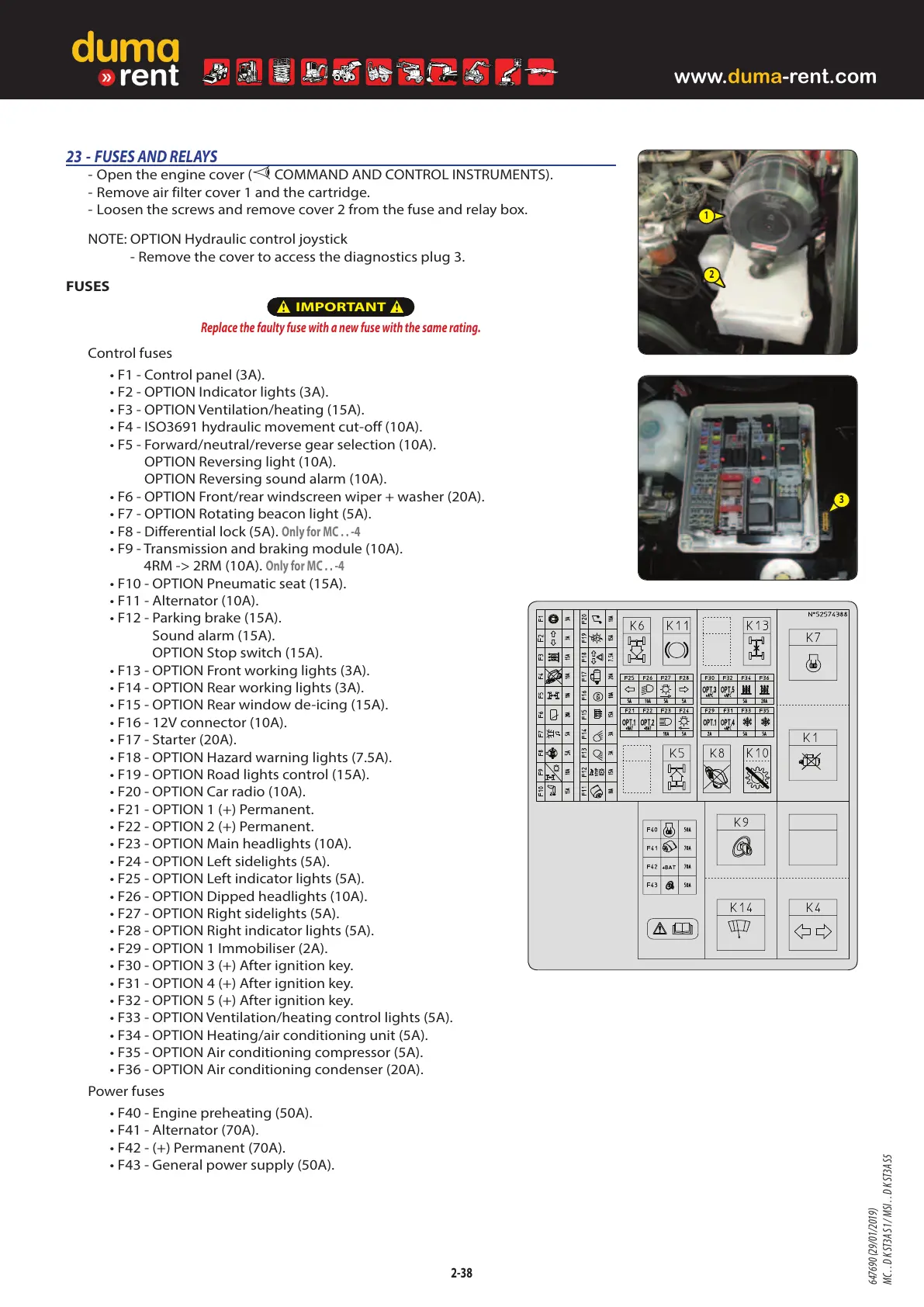

23 - FUSES AND RELAYS
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
- Remove air filter cover 1 and the cartridge.
- Loosen the screws and remove cover 2 from the fuse and relay box.
NOTE: OPTION Hydraulic control joystick
- Remove the cover to access the diagnostics plug 3.
FUSES

IMPORTANT

Replace the faulty fuse with a new fuse with the same rating.
Control fuses
• F1 - Control panel (3A).
• F2 - OPTION Indicator lights (3A).
• F3 - OPTION Ventilation/heating (15A).
• F4 - ISO3691 hydraulic movement cut-off (10A).
• F5 - Forward/neutral/reverse gear selection (10A).
OPTION Reversing light (10A).
OPTION Reversing sound alarm (10A).
• F6 - OPTION Front/rear windscreen wiper + washer (20A).
• F7 - OPTION Rotating beacon light (5A).
• F8 - Differential lock (5A).
Only for MC . . -4
• F9 - Transmission and braking module (10A).
4RM -> 2RM (10A). Only for MC . . -4
• F10 - OPTION Pneumatic seat (15A).
• F11 - Alternator (10A).
• F12 - Parking brake (15A).
Sound alarm (15A).
OPTION Stop switch (15A).
• F13 - OPTION Front working lights (3A).
• F14 - OPTION Rear working lights (3A).
• F15 - OPTION Rear window de-icing (15A).
• F16 - 12V connector (10A).
• F17 - Starter (20A).
• F18 - OPTION Hazard warning lights (7.5A).
• F19 - OPTION Road lights control (15A).
• F20 - OPTION Car radio (10A).
• F21 - OPTION 1 (+) Permanent.
• F22 - OPTION 2 (+) Permanent.
• F23 - OPTION Main headlights (10A).
• F24 - OPTION Left sidelights (5A).
• F25 - OPTION Left indicator lights (5A).
• F26 - OPTION Dipped headlights (10A).
• F27 - OPTION Right sidelights (5A).
• F28 - OPTION Right indicator lights (5A).
• F29 - OPTION 1 Immobiliser (2A).
• F30 - OPTION 3 (+) After ignition key.
• F31 - OPTION 4 (+) After ignition key.
• F32 - OPTION 5 (+) After ignition key.
• F33 - OPTION Ventilation/heating control lights (5A).
• F34 - OPTION Heating/air conditioning unit (5A).
• F35-OPTION Air conditioning compressor (5A).
• F36 - OPTION Air conditioning condenser (20A).
Power fuses
• F40 - Engine preheating (50A).
• F41 - Alternator (70A).
• F42 - (+) Permanent (70A).
• F43 - General power supply (50A).
2-38
1
2
3
647690 (29/01/2019)
