HYDRAULIC CONTROLS
IMPORTANT
In the event of a malfunction, consult your dealer.
For your own safety, do not attempt to alter the hydraulic pressure in the system.
ANY MODIFICATION WILL INVALIDATE THE WARRANTY.
The hydraulic controls must be used carefully without jerking, to avoid accidents caused
by shaking the lift truck.
Using the hydraulic controls is only possible if the driver is present and seated correctly
in the seat.
LIFTING THE LOAD
- Pull lever A backwards for lifting.
As an option the engine speed is automatically increased.
- Push lever A forwards for lowering.
TILTING THE MAST
- Pull lever A to the left to tilt backwards.
- Push lever A to the right to tilt forwards.
ATTACHMENT
(e.g. side-shift carriage)
- Move button B forwards or backwards.
OPTION ADDITIONAL ATTACHMENT (4TH ELEMENT)
- Move button C forwards or backwards.
OPTION ADDITIONAL ATTACHMENT (5TH ELEMENT)
- Hold button C1 down and move the button C forwards or backwards.
HYDRAULIC MOVEMENT NEUTRALISATION
- Press switch d, the indicator lamp D1 comes on.

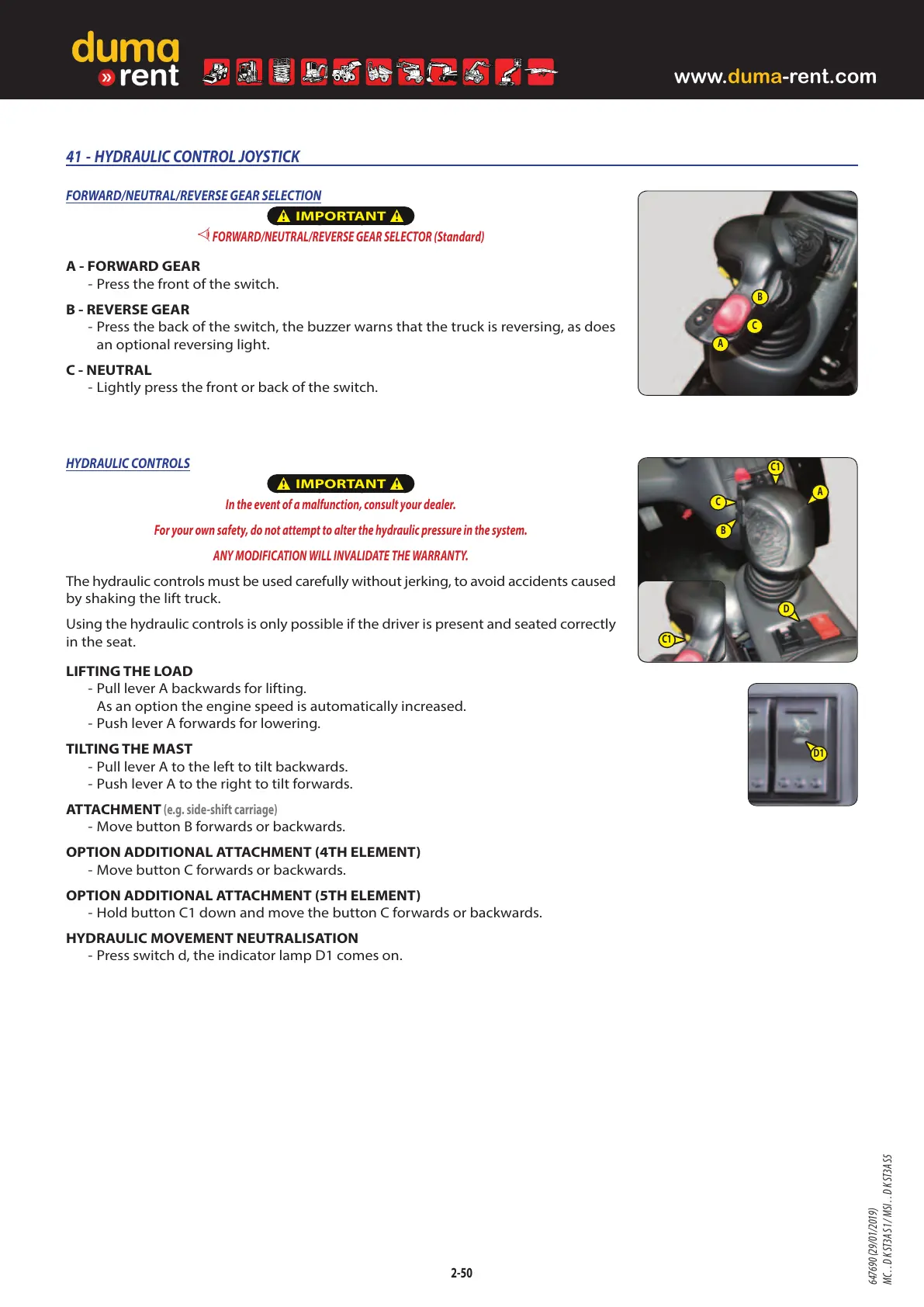

41 - HYDRAULIC CONTROL JOYSTICK
FORWARD/NEUTRAL/REVERSE GEAR SELECTION
IMPORTANT
FORWARD/NEUTRAL/REVERSE GEAR SELECTOR (Standard)
A - FORWARD GEAR
- Press the front of the switch.
B - REVERSE GEAR
- Press the back of the switch, the buzzer warns that the truck is reversing, as does
an optional reversing light.
C - NEUTRAL
- Lightly press the front or back of the switch.
2-50
A
D
C
B
C1
C1
D1
A
B
C
647690 (29/01/2019)
