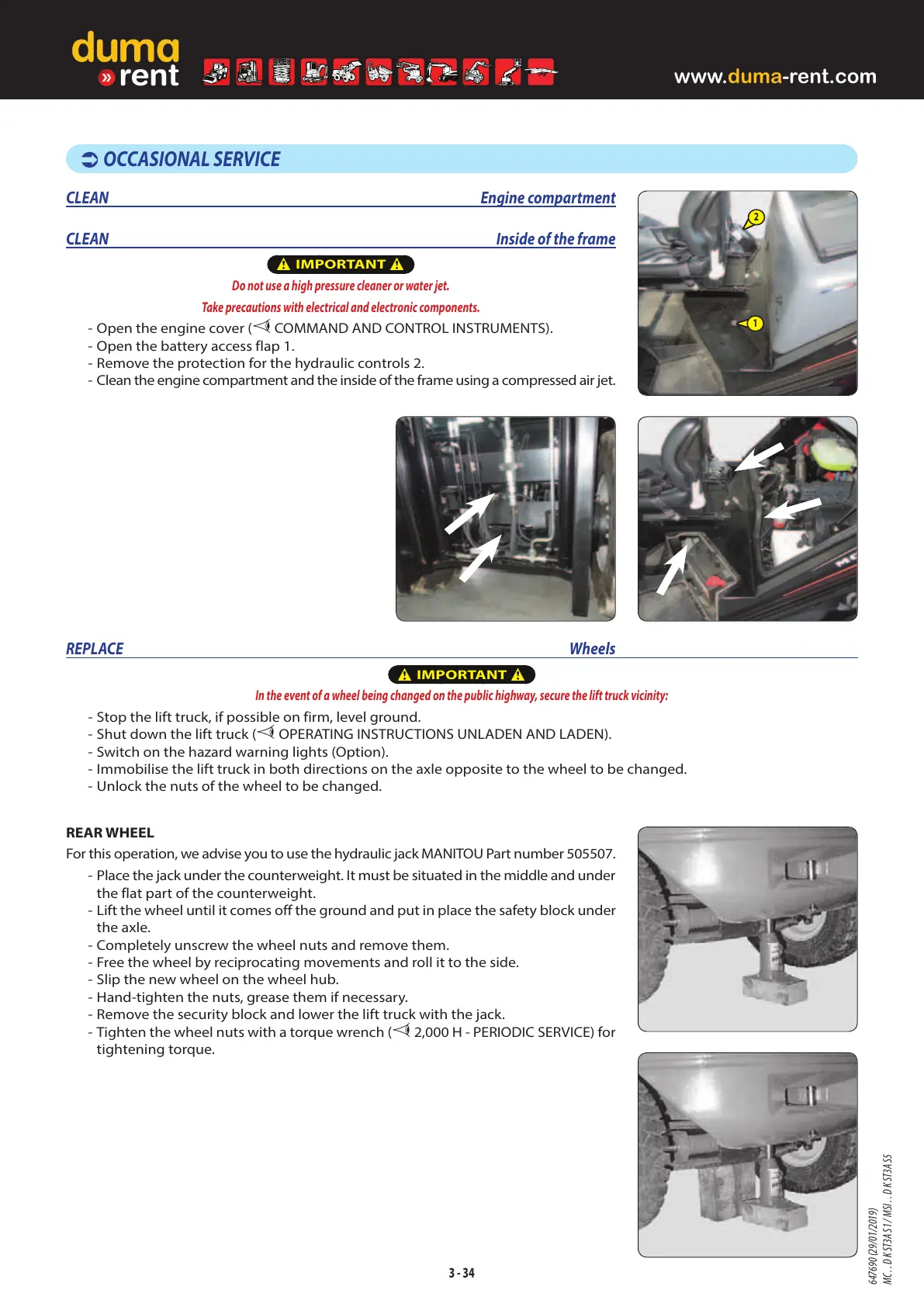

OCCASIONAL SERVICE
CLEAN Engine compartment
CLEAN Inside of the frame
IMPORTANT
Do not use a high pressure cleaner or water jet.
Take precautions with electrical and electronic components.
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
- Open the battery access flap 1.
- Remove the protection for the hydraulic controls 2.
- Clean the engine compartment and the inside of the frame using a compressed air jet.
REPLACE Wheels
IMPORTANT
In the event of a wheel being changed on the public highway, secure the lift truck vicinity:
- Stop the lift truck, if possible on firm, level ground.
- Shut down the lift truck ( OPERATING INSTRUCTIONS UNLADEN AND LADEN).
- Switch on the hazard warning lights (Option).
- Immobilise the lift truck in both directions on the axle opposite to the wheel to be changed.
- Unlock the nuts of the wheel to be changed.
REAR WHEEL
For this operation, we advise you to use the hydraulic jack MANITOU Part number 505507.
- Place the jack under the counterweight. It must be situated in the middle and under
the flat part of the counterweight.
- Lift the wheel until it comes off the ground and put in place the safety block under
the axle.
- Completely unscrew the wheel nuts and remove them.
- Free the wheel by reciprocating movements and roll it to the side.
- Slip the new wheel on the wheel hub.
- Hand-tighten the nuts, grease them if necessary.
- Remove the security block and lower the lift truck with the jack.
- Tighten the wheel nuts with a torque wrench (
2,000 H - PERIODIC SERVICE) for
tightening torque.
3 - 34
1
2
647690 (29/01/2019)
