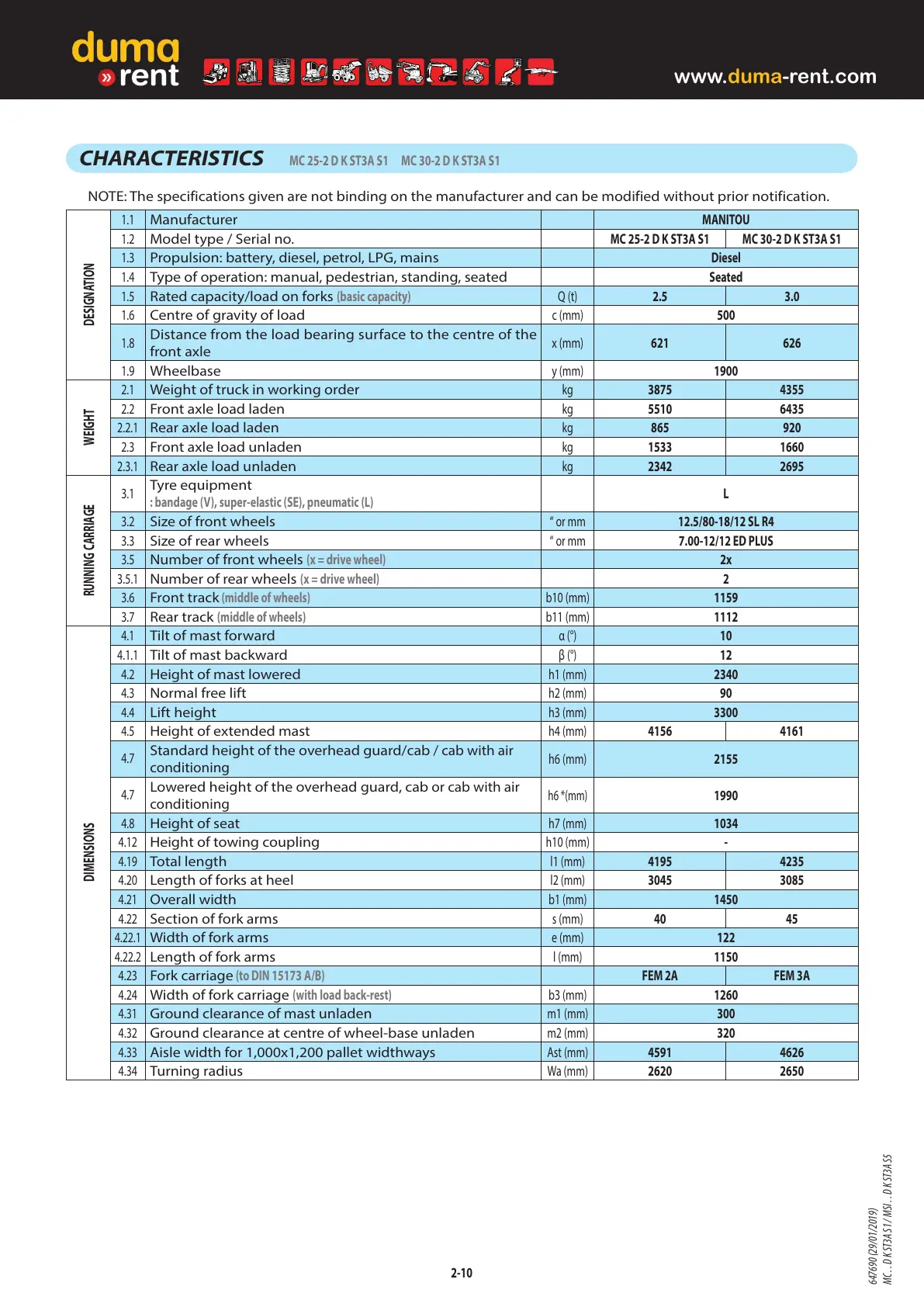

CHARACTERISTICS MC 25-2 D K ST3A S1 MC 30-2 D K ST3A S1
NOTE: The specifications given are not binding on the manufacturer and can be modified without prior notification.
DESIGNATION
1.1 Manufacturer MANITOU
1.2
Model type / Serial no. MC 25-2 D K ST3A S1 MC 30-2 D K ST3A S1
1.3 Propulsion: battery, diesel, petrol, LPG, mains Diesel
1.4
Type of operation: manual, pedestrian, standing, seated Seated
1.5
Rated capacity/load on forks (basic capacity) Q (t) 2.5 3.0
1.6 Centre of gravity of load c (mm) 500
1.8
Distance from the load bearing surface to the centre of the
front axle
x (mm) 621 626
1.9
Wheelbase y (mm) 1900
WEIGHT
2.1 Weight of truck in working order kg 3875 4355
2.2
Front axle load laden kg 5510 6435
2.2.1
Rear axle load laden kg 865 920
2.3 Front axle load unladen kg 1533 1660
2.3.1
Rear axle load unladen kg 2342 2695
RUNNING CARRIAGE
3.1
Tyre equipment
: bandage (V), super-elastic (SE), pneumatic (L)
L
3.2
Size of front wheels “ or mm 12.5/80-18/12 SL R4
3.3 Size of rear wheels “ or mm 7.00-12/12 ED PLUS
3.5
Number of front wheels (x = drive wheel) 2x
3.5.1
Number of rear wheels (x = drive wheel) 2
3.6
Front track (middle of wheels) b10 (mm) 1159
3.7
Rear track (middle of wheels) b11 (mm) 1112
DIMENSIONS
4.1 Tilt of mast forward α (°) 10
4.1.1
Tilt of mast backward β (°) 12
4.2
Height of mast lowered h1 (mm) 2340
4.3
Normal free lift h2 (mm) 90
4.4
Lift height h3 (mm) 3300
4.5 Height of extended mast h4 (mm) 4156 4161
4.7
Standard height of the overhead guard/cab / cab with air
conditioning
h6 (mm) 2155
4.7
Lowered height of the overhead guard, cab or cab with air
conditioning
h6 *(mm) 1990
4.8
Height of seat h7 (mm) 1034
4.12
Height of towing coupling h10 (mm) -
4.19
Total length l1 (mm) 4195 4235
4.20
Length of forks at heel l2 (mm) 3045 3085
4.21 Overall width b1 (mm) 1450
4.22
Section of fork arms s (mm) 40 45
4.22.1
Width of fork arms e (mm) 122
4.22.2 Length of fork arms l (mm) 1150
4.23
Fork carriage (to DIN 15173 A/B) FEM 2A FEM 3A
4.24
Width of fork carriage (with load back-rest) b3 (mm) 1260
4.31
Ground clearance of mast unladen m1 (mm) 300
4.32
Ground clearance at centre of wheel-base unladen m2 (mm) 320
4.33
Aisle width for 1,000x1,200 pallet widthways Ast (mm) 4591 4626
4.34
Turning radius Wa (mm) 2620 2650
2-10
647690 (29/01/2019)
M
C . . D K ST3A S1 / MSI . . D K ST3A S5
