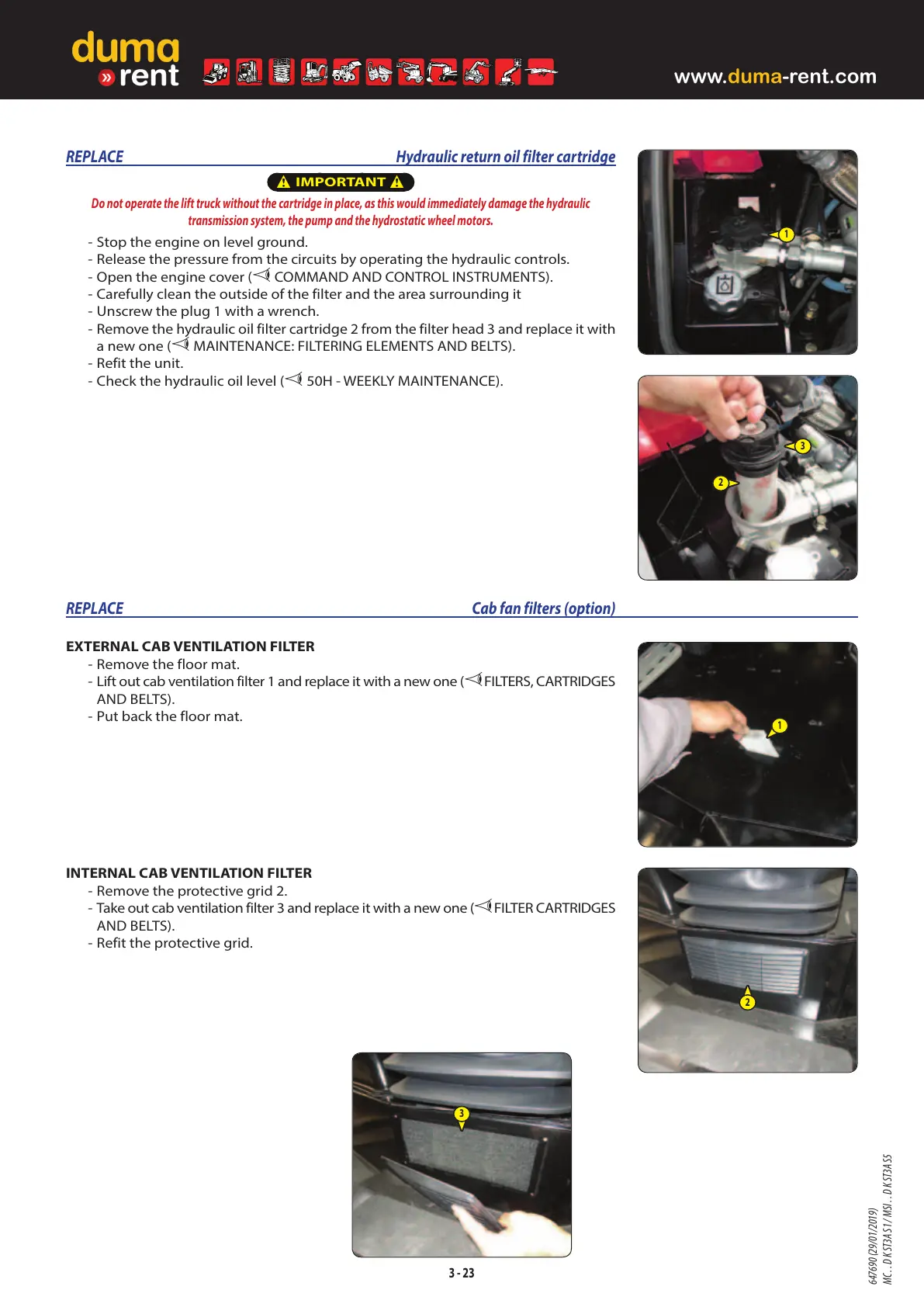

REPLACE Hydraulic return oil filter cartridge
IMPORTANT
Do not operate the lift truck without the cartridge in place, as this would immediately damage the hydraulic
transmission system, the pump and the hydrostatic wheel motors.
- Stop the engine on level ground.
- Release the pressure from the circuits by operating the hydraulic controls.
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
- Carefully clean the outside of the filter and the area surrounding it
- Unscrew the plug 1 with a wrench.
- Remove the hydraulic oil filter cartridge 2 from the filter head 3 and replace it with
a new one ( MAINTENANCE: FILTERING ELEMENTS AND BELTS).
- Refit the unit.
- Check the hydraulic oil level ( 50H - WEEKLY MAINTENANCE).
REPLACE Cab fan filters (option)
EXTERNAL CAB VENTILATION FILTER
- Remove the floor mat.
- Lift out cab ventilation filter 1 and replace it with a new one ( FILTERS, CARTRIDGES
AND BELTS).
- Put back the floor mat.
INTERNAL CAB VENTILATION FILTER
- Remove the protective grid 2.
- Take out cab ventilation filter 3 and replace it with a new one (
FILTER CARTRIDGES
AND BELTS).
- Refit the protective grid.
3 - 23
1
2
3
2
1
3
647690 (29/01/2019)
