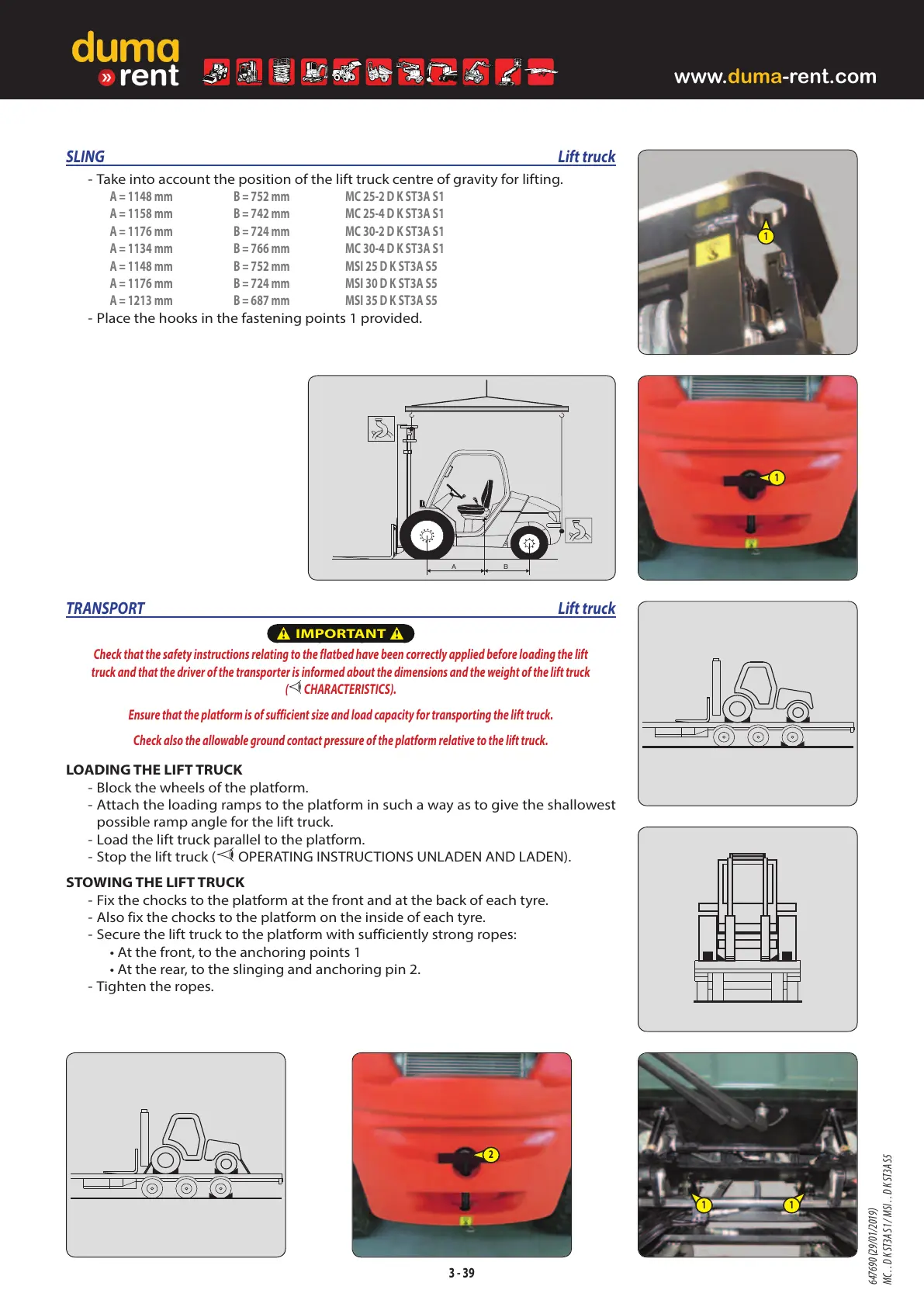

TRANSPORT Lift truck
IMPORTANT
Check that the safety instructions relating to the flatbed have been correctly applied before loading the lift
truck and that the driver of the transporter is informed about the dimensions and the weight of the lift truck
(CHARACTERISTICS).
Ensure that the platform is of sufficient size and load capacity for transporting the lift truck.
Check also the allowable ground contact pressure of the platform relative to the lift truck.
LOADING THE LIFT TRUCK
- Block the wheels of the platform.
- Attach the loading ramps to the platform in such a way as to give the shallowest
possible ramp angle for the lift truck.
- Load the lift truck parallel to the platform.
- Stop the lift truck ( OPERATING INSTRUCTIONS UNLADEN AND LADEN).
STOWING THE LIFT TRUCK
- Fix the chocks to the platform at the front and at the back of each tyre.
- Also fix the chocks to the platform on the inside of each tyre.
- Secure the lift truck to the platform with sufficiently strong ropes:
• At the front, to the anchoring points 1
• At the rear, to the slinging and anchoring pin 2.
- Tighten the ropes.
SLING Lift truck
- Take into account the position of the lift truck centre of gravity for lifting.
A = 1148 mm B = 752 mm MC 25-2 D K ST3A S1
A = 1158 mm B = 742 mm MC 25-4 D K ST3A S1
A = 1176 mm B = 724 mm MC 30-2 D K ST3A S1
A = 1134 mm B = 766 mm MC 30-4 D K ST3A S1
A = 1148 mm B = 752 mm MSI 25 D K ST3A S5
A = 1176 mm B = 724 mm MSI 30 D K ST3A S5
A = 1213 mm B = 687 mm MSI 35 D K ST3A S5
- Place the hooks in the fastening points 1 provided.
3 - 39
2
1
1
AB
1
1
647690 (29/01/2019)
