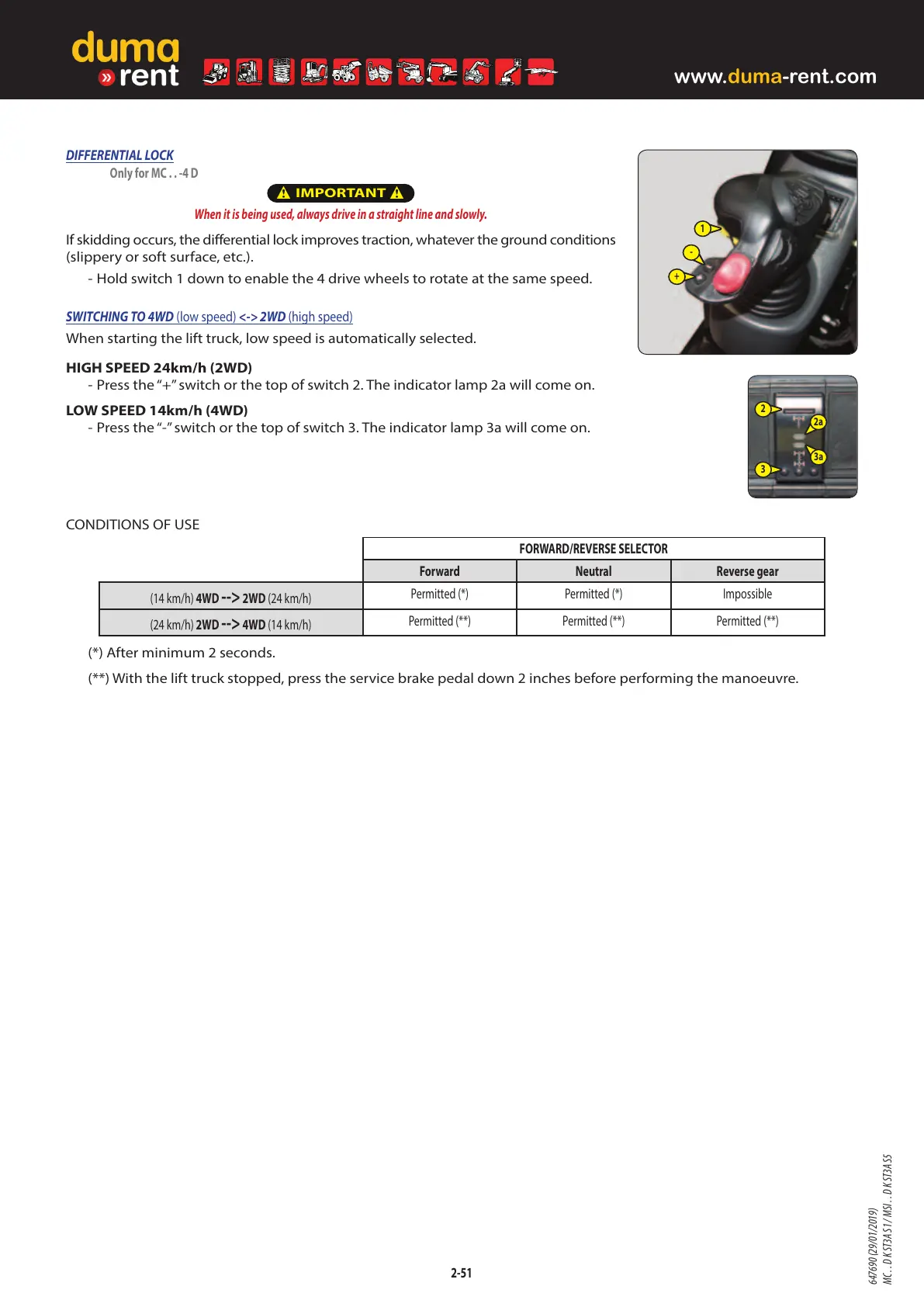

DIFFERENTIAL LOCK
Only for MC . . -4 D

IMPORTANT

When it is being used, always drive in a straight line and slowly.
If skidding occurs, the differential lock improves traction, whatever the ground conditions
(slippery or soft surface, etc.).
- Hold switch 1 down to enable the 4 drive wheels to rotate at the same speed.
SWITCHING TO 4WD (low speed) <-> 2WD (high speed)
When starting the lift truck, low speed is automatically selected.
HIGH SPEED 24km/h (2WD)
- Press the “+” switch or the top of switch 2. The indicator lamp 2a will come on.
LOW SPEED 14km/h (4WD)
- Press the “-” switch or the top of switch 3. The indicator lamp 3a will come on.
CONDITIONS OF USE
FORWARD/REVERSE SELECTOR
Forward Neutral Reverse gear
(14 km/h) 4WD --> 2WD (24 km/h)
Permitted (*) Permitted (*) Impossible
(24 km/h) 2WD --> 4WD (14 km/h)
Permitted (**) Permitted (**) Permitted (**)
(*) After minimum 2 seconds.
(**) With the lift truck stopped, press the service brake pedal down 2 inches before performing the manoeuvre.
2-51
-
+
1
2
3
2a
3a
647690 (29/01/2019)
M
C . . D K ST3A S1 / MSI . . D K ST3A S5
