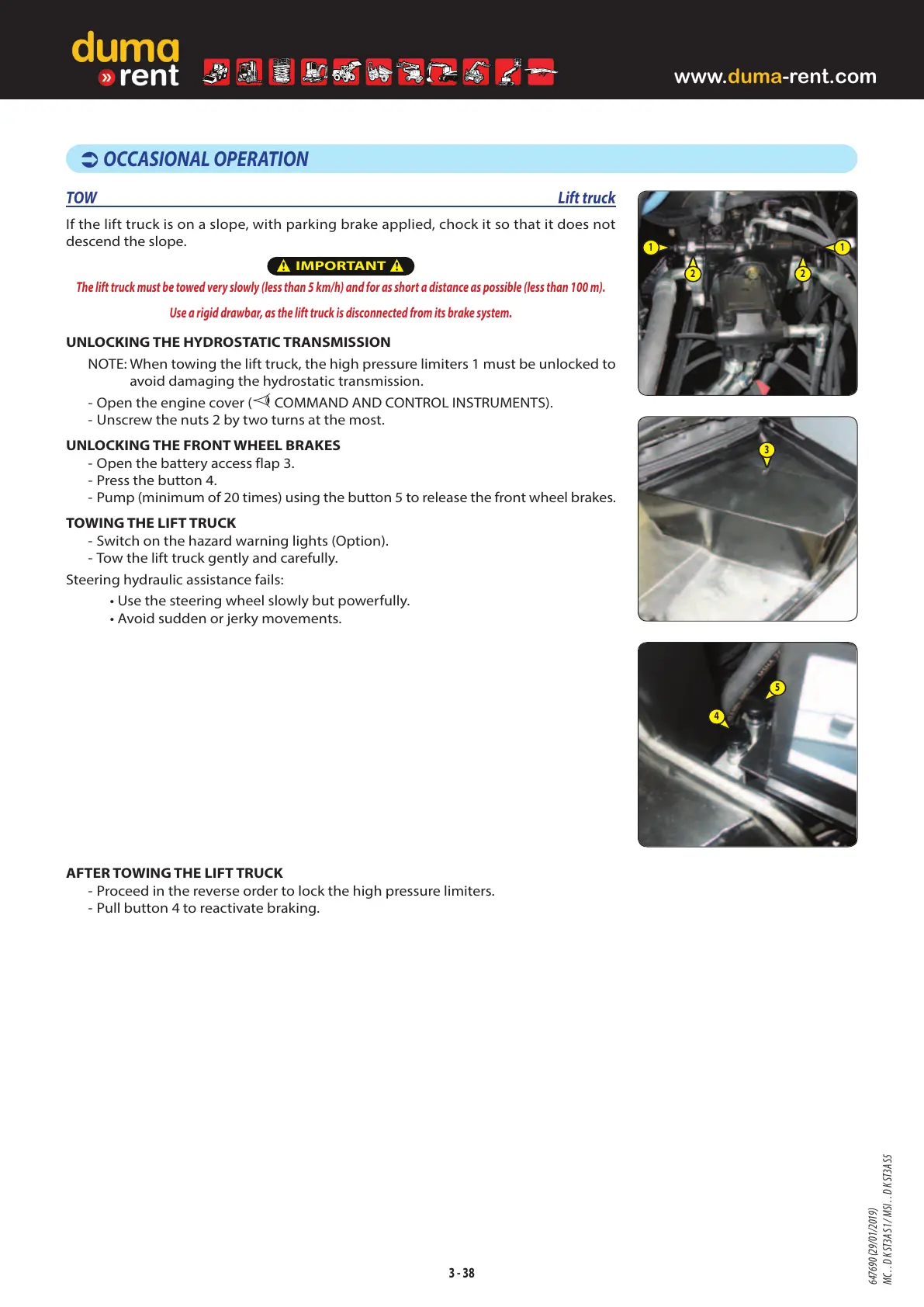

OCCASIONAL OPERATION
TOW Lift truck
If the lift truck is on a slope, with parking brake applied, chock it so that it does not
descend the slope.
IMPORTANT
The lift truck must be towed very slowly (less than 5 km/h) and for as short a distance as possible (less than 100 m).
Use a rigid drawbar, as the lift truck is disconnected from its brake system.
UNLOCKING THE HYDROSTATIC TRANSMISSION
NOTE: When towing the lift truck, the high pressure limiters 1 must be unlocked to
avoid damaging the hydrostatic transmission.
- Open the engine cover (
COMMAND AND CONTROL INSTRUMENTS).
- Unscrew the nuts 2 by two turns at the most.
UNLOCKING THE FRONT WHEEL BRAKES
- Open the battery access flap 3.
- Press the button 4.
- Pump (minimum of 20 times) using the button 5 to release the front wheel brakes.
TOWING THE LIFT TRUCK
- Switch on the hazard warning lights (Option).
- Tow the lift truck gently and carefully.
Steering hydraulic assistance fails:
• Use the steering wheel slowly but powerfully.
• Avoid sudden or jerky movements.
AFTER TOWING THE LIFT TRUCK
- Proceed in the reverse order to lock the high pressure limiters.
- Pull button 4 to reactivate braking.
3 - 38
2 2
1 1
3
4
5
647690 (29/01/2019)
