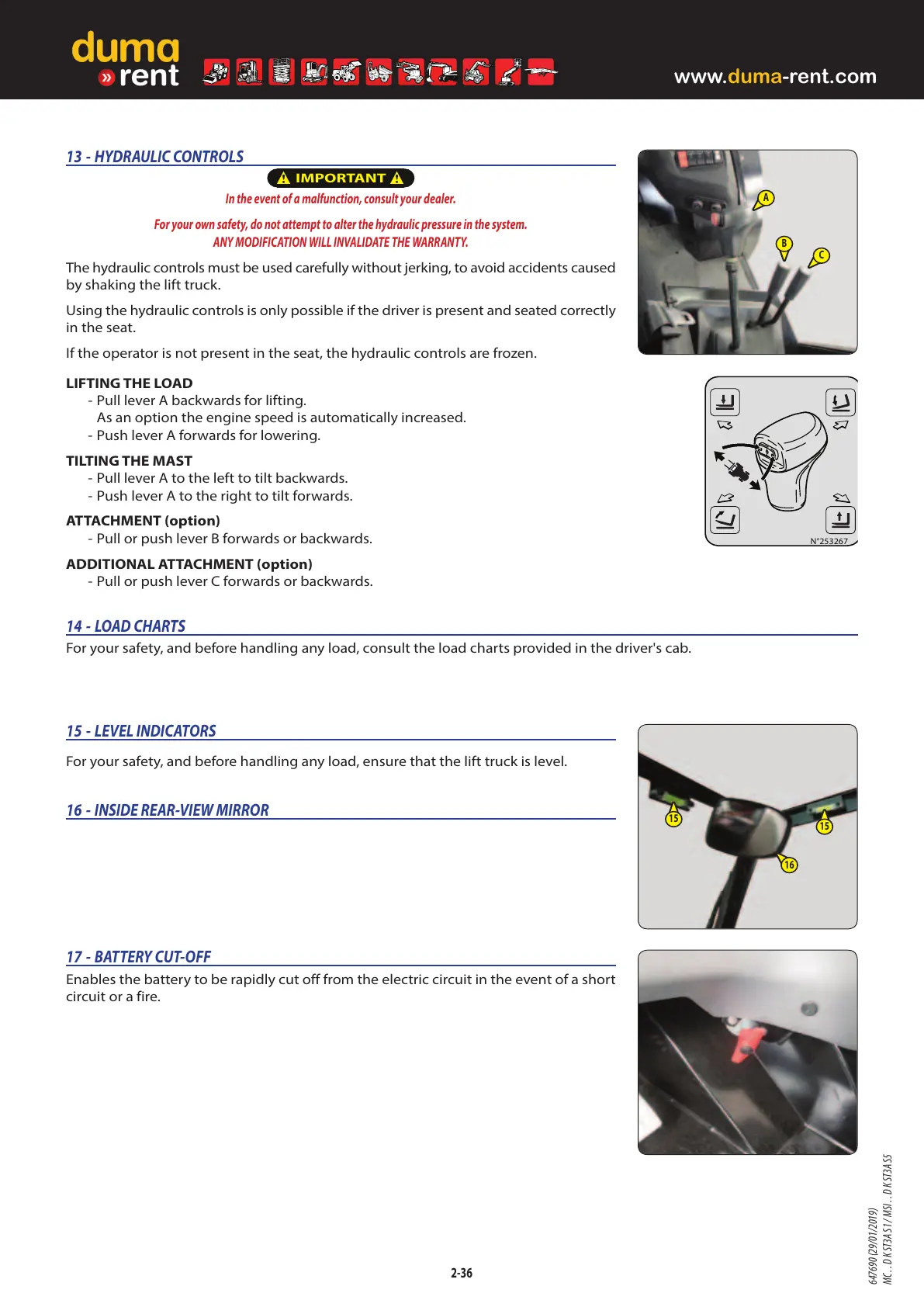

13 - HYDRAULIC CONTROLS
IMPORTANT
In the event of a malfunction, consult your dealer.
For your own safety, do not attempt to alter the hydraulic pressure in the system.
ANY MODIFICATION WILL INVALIDATE THE WARRANTY.
The hydraulic controls must be used carefully without jerking, to avoid accidents caused
by shaking the lift truck.
Using the hydraulic controls is only possible if the driver is present and seated correctly
in the seat.
If the operator is not present in the seat, the hydraulic controls are frozen.
LIFTING THE LOAD
- Pull lever A backwards for lifting.
As an option the engine speed is automatically increased.
- Push lever A forwards for lowering.
TILTING THE MAST
- Pull lever A to the left to tilt backwards.
- Push lever A to the right to tilt forwards.
ATTACHMENT (option)
- Pull or push lever B forwards or backwards.
ADDITIONAL ATTACHMENT (option)
- Pull or push lever C forwards or backwards.
14 - LOAD CHARTS
For your safety, and before handling any load, consult the load charts provided in the driver's cab.
15 - LEVEL INDICATORS
For your safety, and before handling any load, ensure that the lift truck is level.
16 - INSIDE REAR-VIEW MIRROR
17 - BATTERY CUT-OFF
Enables the battery to be rapidly cut off from the electric circuit in the event of a short
circuit or a fire.
2-36
B
A
C
N°253267
