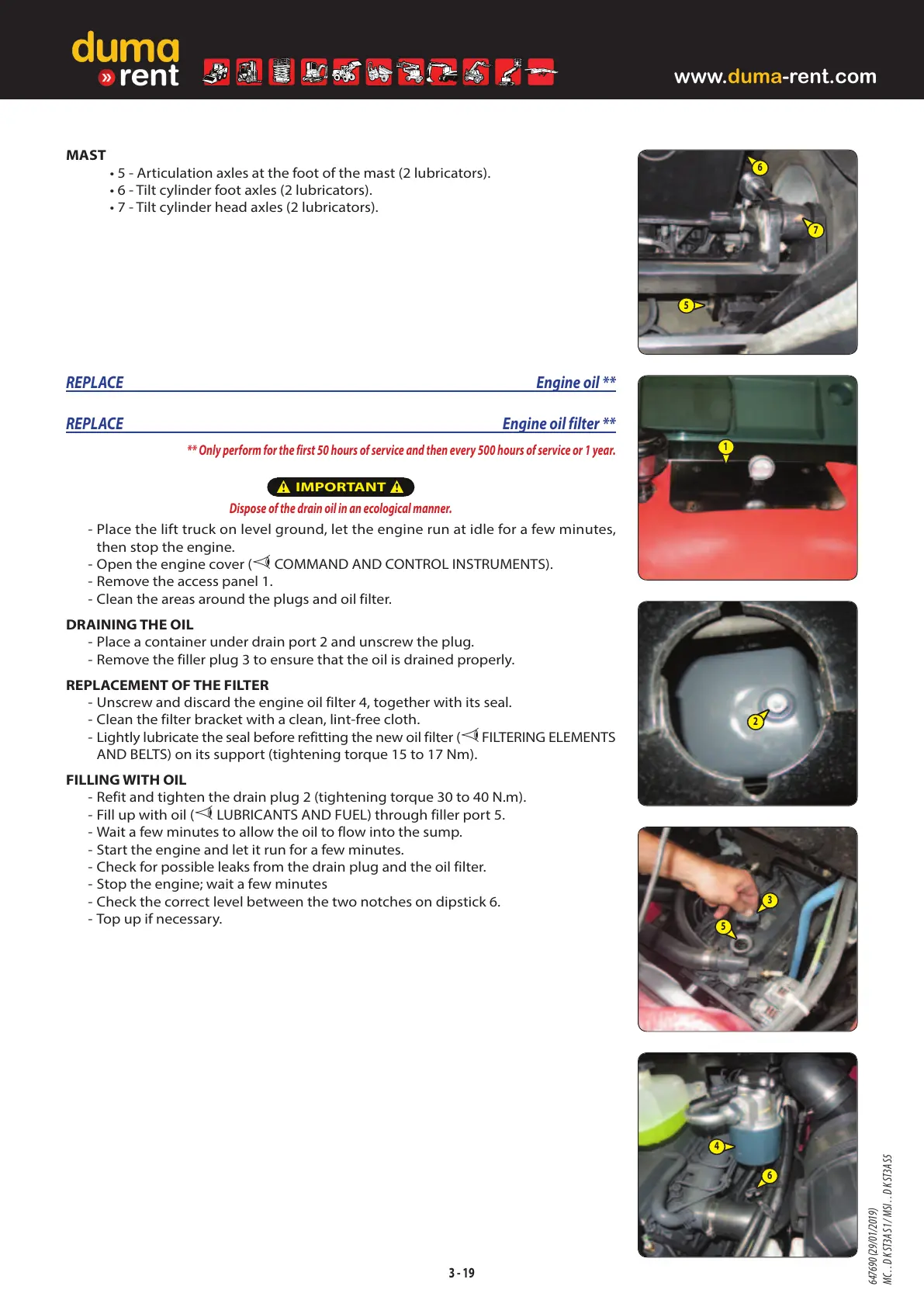

MAST
• 5 - Articulation axles at the foot of the mast (2 lubricators).
• 6 - Tilt cylinder foot axles (2 lubricators).
• 7 - Tilt cylinder head axles (2 lubricators).
REPLACE Engine oil **
REPLACE Engine oil filter **
** Only perform for the first 50 hours of service and then every 500 hours of service or 1 year.
IMPORTANT
Dispose of the drain oil in an ecological manner.
- Place the lift truck on level ground, let the engine run at idle for a few minutes,
then stop the engine.
- Open the engine cover ( COMMAND AND CONTROL INSTRUMENTS).
- Remove the access panel 1.
- Clean the areas around the plugs and oil filter.
DRAINING THE OIL
- Place a container under drain port 2 and unscrew the plug.
- Remove the filler plug 3 to ensure that the oil is drained properly.
REPLACEMENT OF THE FILTER
- Unscrew and discard the engine oil filter 4, together with its seal.
- Clean the filter bracket with a clean, lint-free cloth.
- Lightly lubricate the seal before refitting the new oil filter (
FILTERING ELEMENTS
AND BELTS) on its support (tightening torque 15 to 17 Nm).
FILLING WITH OIL
- Refit and tighten the drain plug 2 (tightening torque 30 to 40 N.m).
- Fill up with oil (
LUBRICANTS AND FUEL) through filler port 5.
- Wait a few minutes to allow the oil to flow into the sump.
- Start the engine and let it run for a few minutes.
- Check for possible leaks from the drain plug and the oil filter.
- Stop the engine; wait a few minutes
- Check the correct level between the two notches on dipstick 6.
- Top up if necessary.
3 - 19
7
6
5
2
1
3
5
6
4
647690 (29/01/2019)
