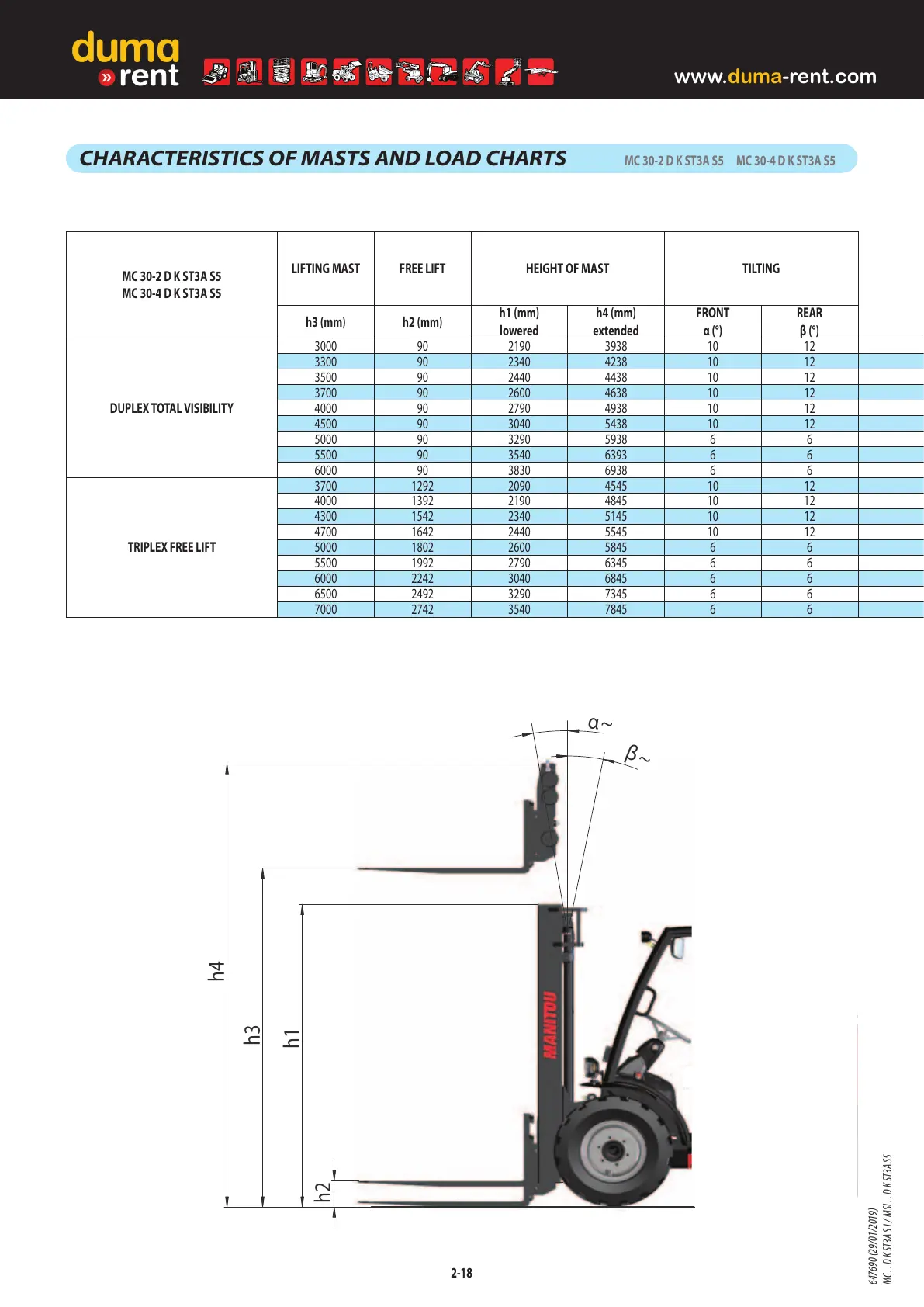

CHARACTERISTICS OF MASTS AND LOAD CHARTS MC 30-2 D K ST3A S5 MC 30-4 D K ST3A S5
MC 30-2 D K ST3A S5
MC 30-4 D K ST3A S5
LIFTING MAST FREE LIFT HEIGHT OF MAST TILTING
h3 (mm) h2 (mm)
h1 (mm)
lowered
h4 (mm)
extended
FRONT
α (°)
REAR
β (°)
DUPLEX TOTAL VISIBILITY
3000 90 2190 3938 10 12
3300 90 2340 4238 10 12
3500 90 2440 4438 10 12
3700 90 2600 4638 10 12
4000 90 2790 4938 10 12
4500 90 3040 5438 10 12
5000 90 3290 5938 6 6
5500 90 3540 6393 6 6
6000 90 3830 6938 6 6
TRIPLEX FREE LIFT
3700 1292 2090 4545 10 12
4000 1392 2190 4845 10 12
4300 1542 2340 5145 10 12
4700 1642 2440 5545 10 12
5000 1802 2600 5845 6 6
5500 1992 2790 6345 6 6
6000 2242 3040 6845 6 6
6500 2492 3290 7345 6 6
7000 2742 3540 7845 6 6
2-18
α~
β
~
h1
h2
h3
h4
647690 (29/01/2019)
M
C . . D K ST3A S1 / MSI . . D K ST3A S5
